Yealink SIP-T29G User Manual

Customizing Your Phone
83

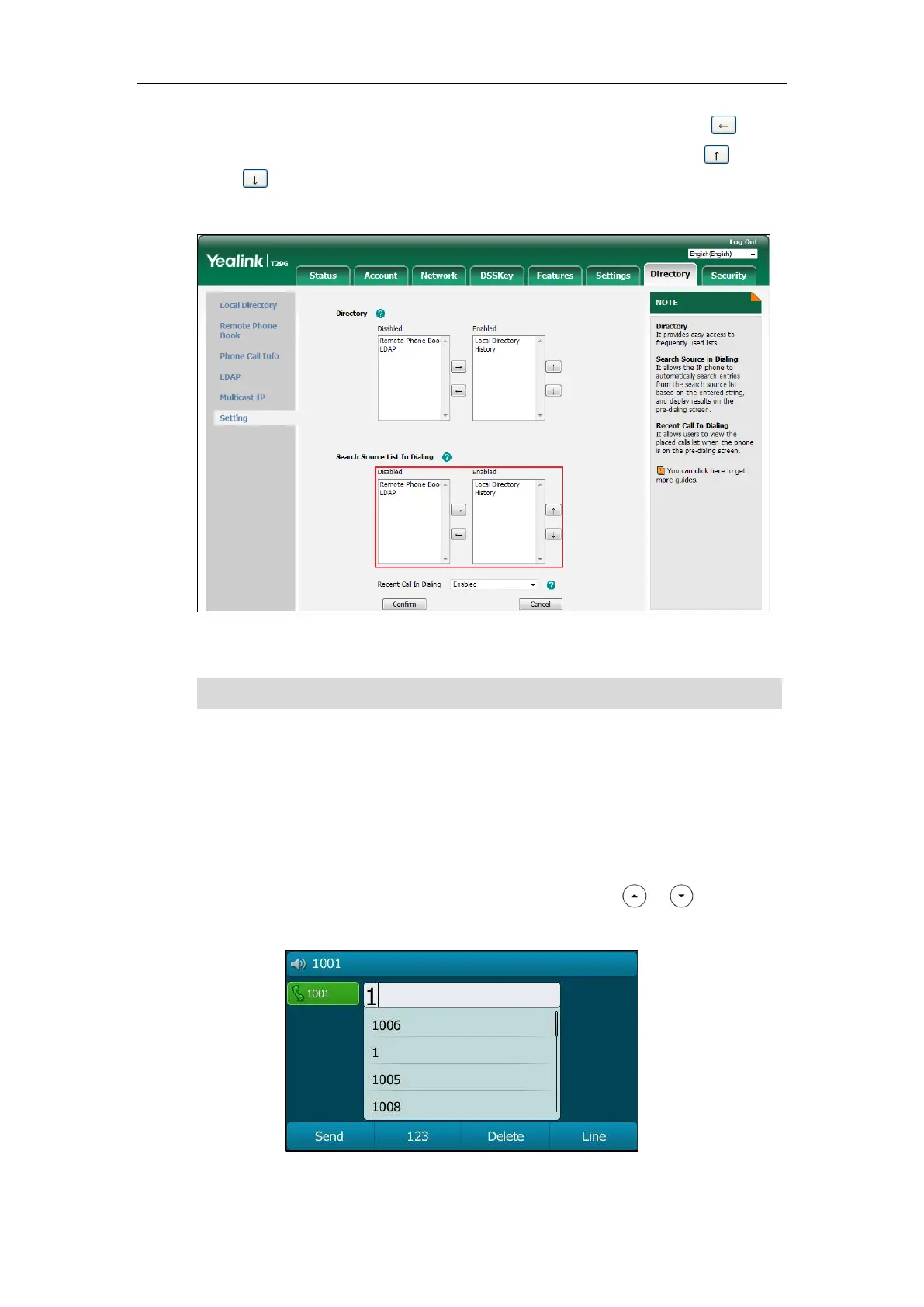

4. To remove a list from the Enabled column, select the desired list and then click .
5. To adjust the display order of the enabled list, select the desired list, and click
or .
The LCD screen will display search results in the adjusted order.
6. Click Confirm to accept the change.
Note
To search for an entry in the enabled search source lists:
1. Pick up the handset, press the Speakerphone key or press the line key.
2. Enter a few continuous characters of the entry’s name or continuous numbers of the entry’s
phone number (office, mobile or other number) using the keypad.
The entries in the enabled search source lists whose name or phone number matches the
characters entered will appear on the LCD screen. You can press or to scroll to
the desired entry and then place a call to the entry.
Search source list in dialing is configurable via web user interface only.

Yealink SIP-T29G Specifications

General

Speakerphone	Yes
Voice codecs	G.711, G.722, G.723, G.726, G.729ab, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Lines quantity	10 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Power over Ethernet (PoE)	-
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800
Volume control	Buttons

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
