Yealink W80DM User Manual

| Appendix | 91

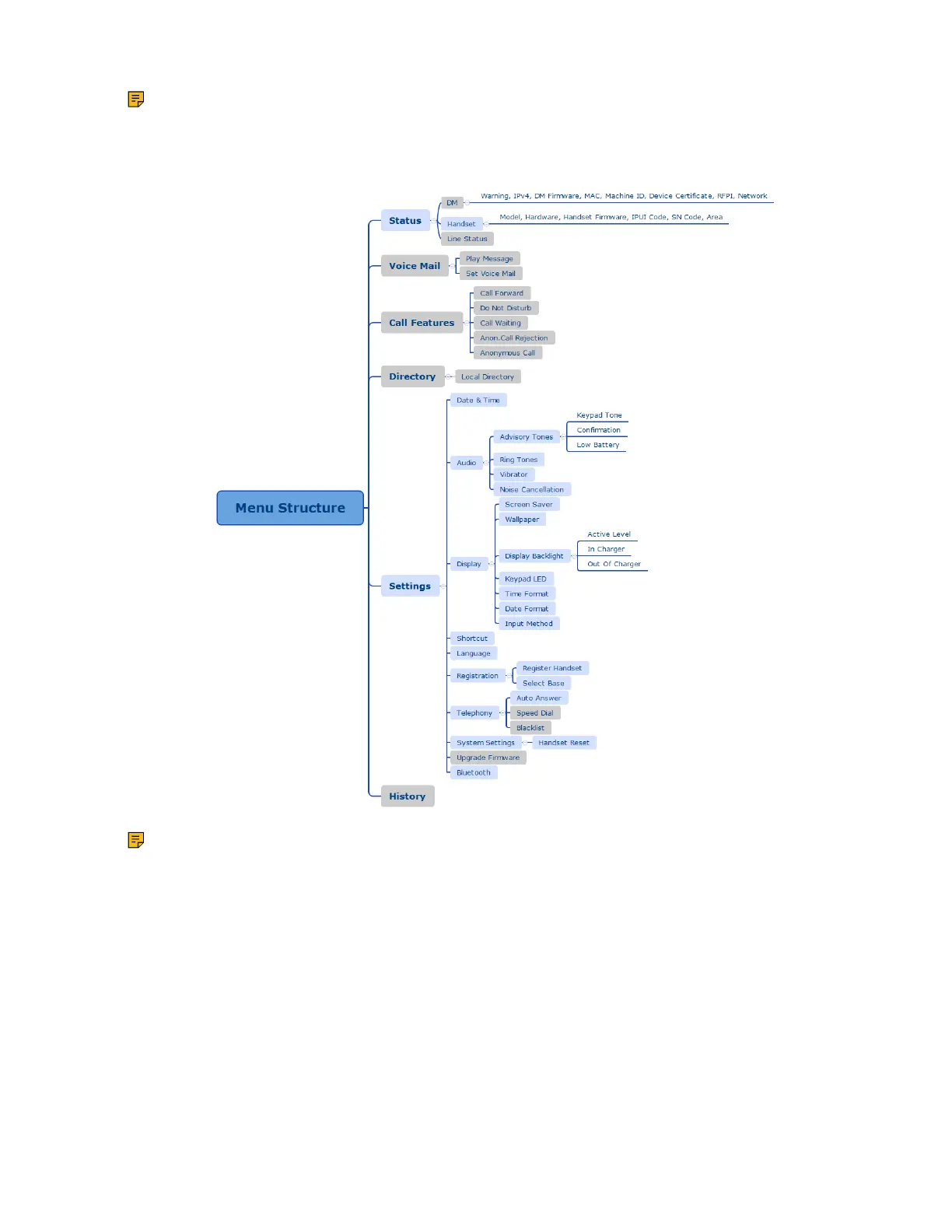

Note: The menus in the gray box are not available when the handset is not registered to a base
station.
For W57R/W59R
Note: The menus in the gray box are not available when the handset is not registered to a base
station.

Yealink W80DM Specifications

General

Voice codecs	AGC, AJB, AMR-NB, AMR-WB, CNG, G.722, G.726, G.729, OPUS, PCMA, PLC, VAD, iLBC
Security algorithms	AES, HTTPS, SHA-256, SHA-384, SHA-512, SRTP, TLS
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Wireless synchronization	Yes
Supported network protocols	SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS
Number of carrier frequencies	2
Number of bases supported (max)	30
Number of handsets supported (max)	100
Number of parallel conferences	3
Phonebook capacity (per handset)	100 entries
Number of WB calls per base supported (max)	8
Product color	White
Ethernet LAN (RJ-45) ports	1
Input voltage	100 - 240 V
Output current	1.2 A
Output voltage	5 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Master (outer) case width	336 mm
Master (outer) case height	187 mm
Master (outer) case length	375 mm
Master (outer) case weight	3130 g
Harmonized System (HS) code	85177900
Quantity per master (outer) case	10 pc(s)
Frequency range (EU)	1880 - 1900 MHz
Frequency range (US)	1920 - 1930 MHz
Maximum indoor range	50 m
Maximum outdoor range	300 m

Weight and Dimensions

Weight	2560 g
Package depth	180 mm
Package width	174 mm
Package height	63 mm
Dimensions (WxDxH)	130 x 100 x 25.1 mm
