TA1600/2400/3200 User Manual
45/87

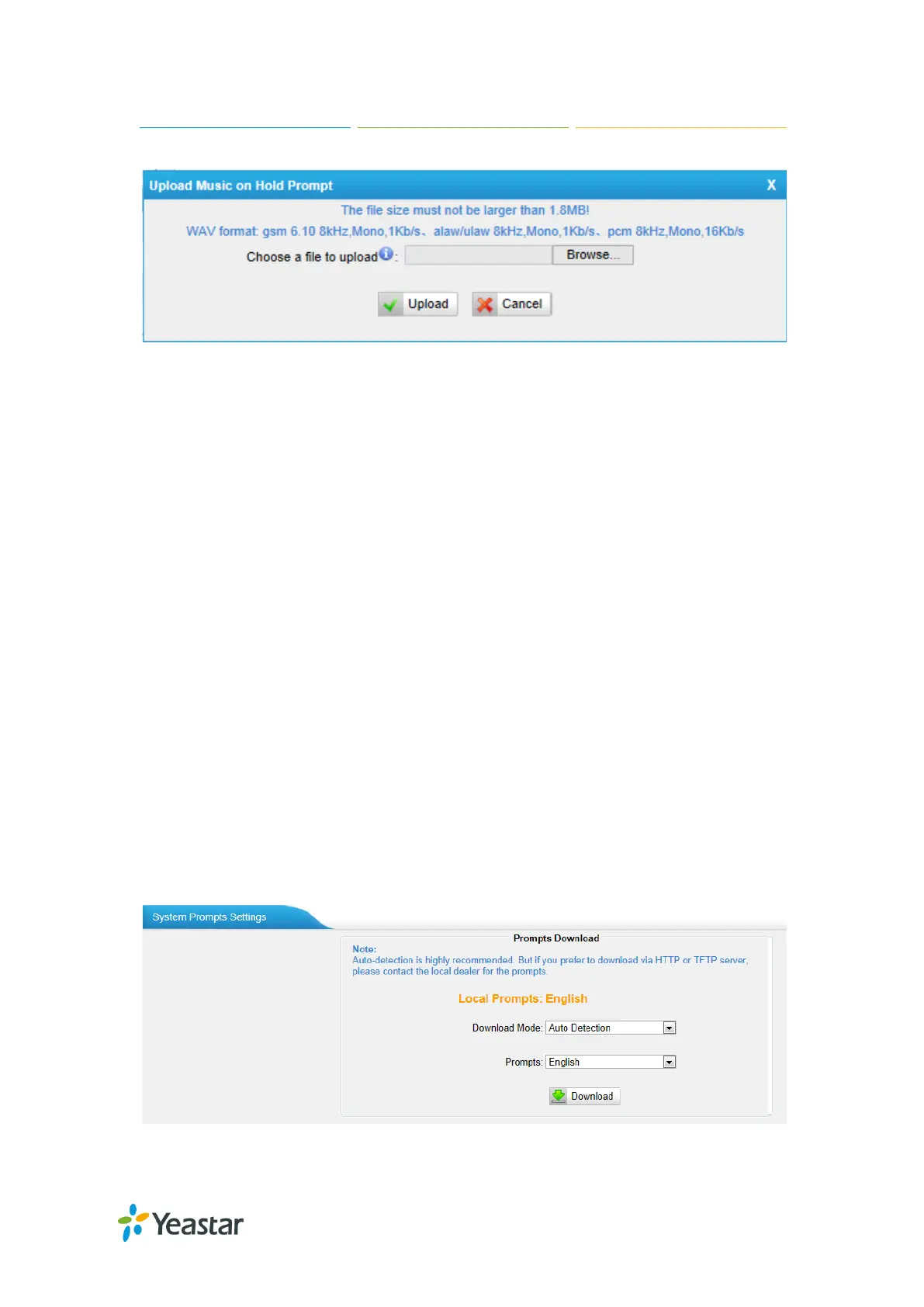

Figure 7-4 Upload Music on Hold Prompt
Note: The file size must not be larger than 1.8 MB, and the file must be WAV format:
GSM 6.10 8 kHz, Mono, 1 Kb/s;
Alaw/Ulaw 8 kHz, Mono, 1 Kb/s;
PCM 8 kHz, Mono, 16 Kb/s.
System Prompts
TA FXS Gateway supports Chinese and English system prompts. You can download the
appropriate language you need.
Notes:
1. Auto-detection is highly recommended. But if you prefer to download via HTTP or
TFTP server, please contact the local dealer for the prompts.
2. When update successfully, just click “Apply Changes” on Web then it will take
effect, there is no need to reboot.
Figure 7-5 System Prompts Settings Page
