F0314.ai
*: These items can be ordered optionally.
If they are provided by the user, choose nuts and
bolts in compliance with the flange ratings.
Centering device (two units)
*Nut (eight units)
*Through-bolt (four units)
Piping-side flange
*Gasket (two units)
Mini-flange
Horizontal mounting

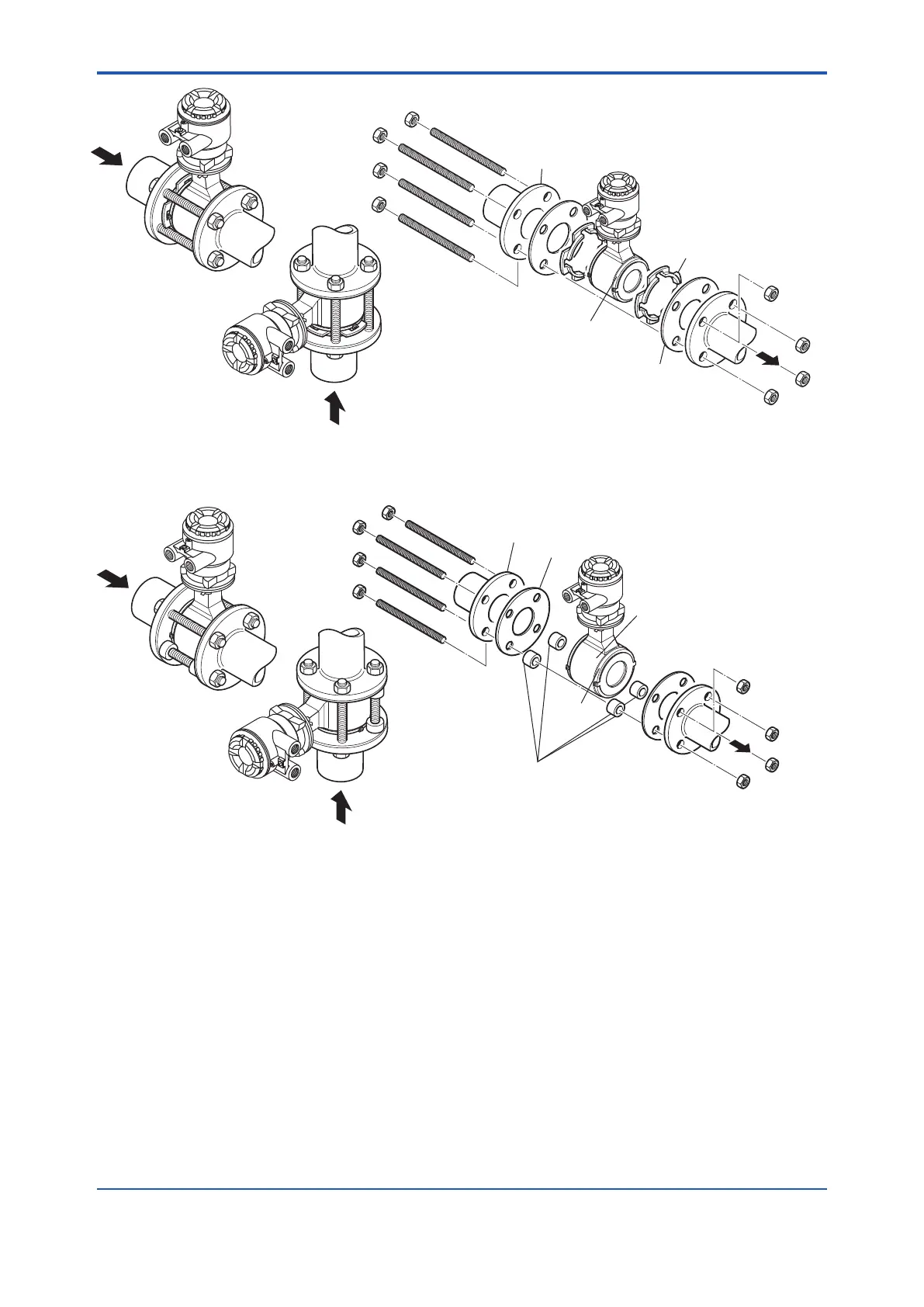

Figure 3.3.2 Mounting Procedure for Wafer Type (sizes: 25, 32 and 40 mm (1.0, 1.25 and 1.5 in.))
Centering device (four units)
*Through-bolt
Piping-side flange
*Gasket
Mini
flange
Housing
Vertical mounting
Horizontal mounting
*: These items can be ordered optionally.
If they are provided by the user, choose nuts
and bolts in compliance with the flange
ratings.
Figure 3.3.3 Mounting Procedure for Wafer Type (sizes: 50 to 200 mm (2 to 8 in.))
<3. Installation>
16
IM 01E24A01-01EN
