<2. Receiving and Storage>
7
IM 01E24A01-01EN
2. Receiving and Storage
When the product is delivered, visually check that no
damage has occurred during transportation. Also check
that all owmeters mounting hardware shown below is
included.
Integral Flowmeter
Model Part name Qty.
AXW### Centering Device (*1) 1 set
Blanking Plug (*2) 0 to 2 pcs.
Remote Sensor
Model Part name Qty.
AXW### Centering Device (*1) 1 set
Remote Transmitter
Model Part name Qty.
AXW4A Mounting Bracket 1 set
Blanking Plug (*2) 0 to 2 pcs.
AXG1A Mounting Bracket 1 set
AXFA11G Mounting Bracket 1 set
*1: When the following process connection codes (wafer
type) have been selected, the centering device is
attached.
AA1, AA2, AE1, AE2, AE4, AG1, AJ1, AJ2
*2: When the following code is specied for “Power Supply”
and “Communication and I/O”, the following quantity of
blind plug is attached.
Power Supply code
Communication and I/O code
Qty.
-1
DA, JA, M0, F0 1 pc.
Other code 0 pc.
-2
DA, JA 2 pcs.
M6 0 pc.
Other code 1 pc.
2.1 Model and Specications
Check
As shown in Figure 2.1 to Figure 2.5, the model, sufx
code, serial number, meter factor, uid specication, and
device information are found on the name plate located
on the outside of the housing. And, this product can check
their information from parameters. Read the user’s manual
of applicable communication type as listed in Table 1.1 for
checking device information from parameters.
When checking the matching of model and specication you
ordered, see the applicable general specications as listed in
Table 1.1.
Be sure you have the model code and serial number
available when contacting YOKOGAWA.
The model and specication described on the nameplate
are those of the state at the time of shipment.
Note: Description on the nameplate
- Made in _______: Country of origin
- COMB No.: Serial number of the combined remote
sensor or remote transmitter

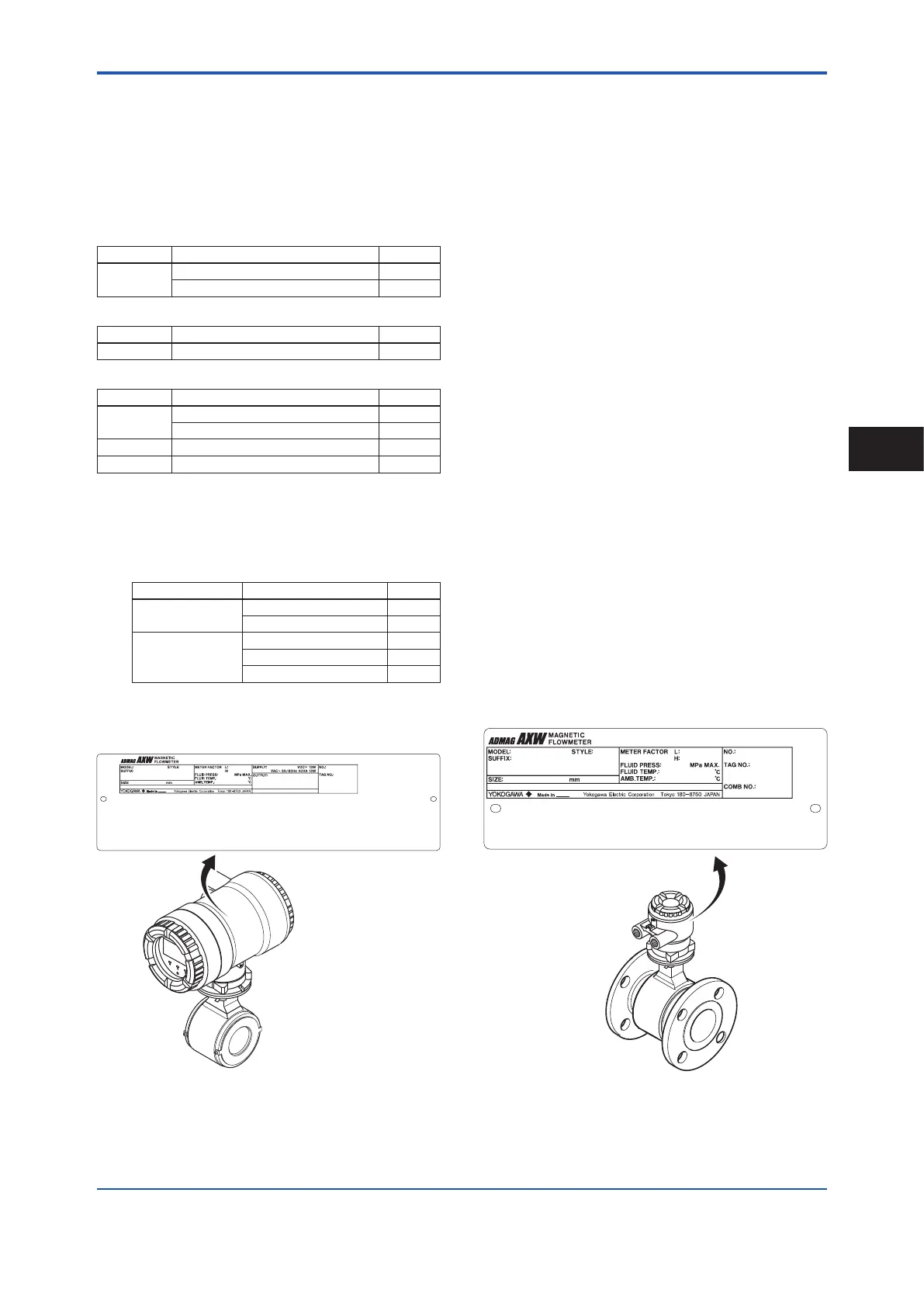

Figure 2.1 Name Plate (AXW Integral Flowmeter)
F0202.ai
Figure 2.2 Name Plate (AXW Remote Sensor)
Receiving and Storage
2
