10

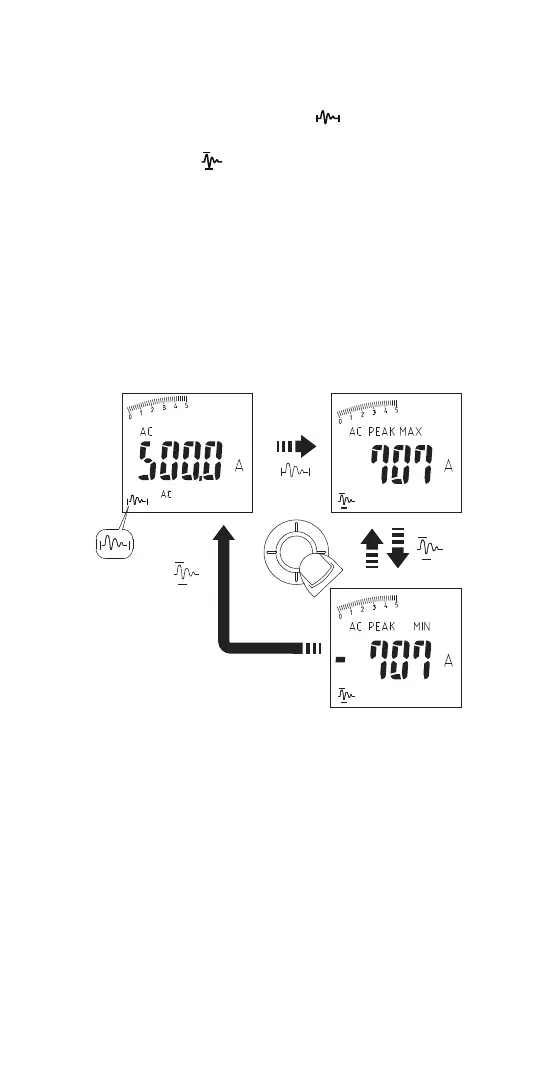

(2) AC Current
Turn the function switch to the current (A) position.
After using the ENTER key to confirm AC mode,
use the cursor key to select Peak Hold.
Press the ENTER key for more than 2 seconds
to select PEAK MAX.
Press the ENTER key to switch between PEAK MAX (polarity+) and
PEAK MIN (polarity-).
(To cancel Peak Hold, press the ENTER key
for more than 2 seconds.)
[NOTE]
Bar-graph indication is not PEAK value.
Bar-graph indication is affected by the ACA value.
(Example: 500.0 A)
>2SEC
>2SEC
"ENTER"
To Next Page
