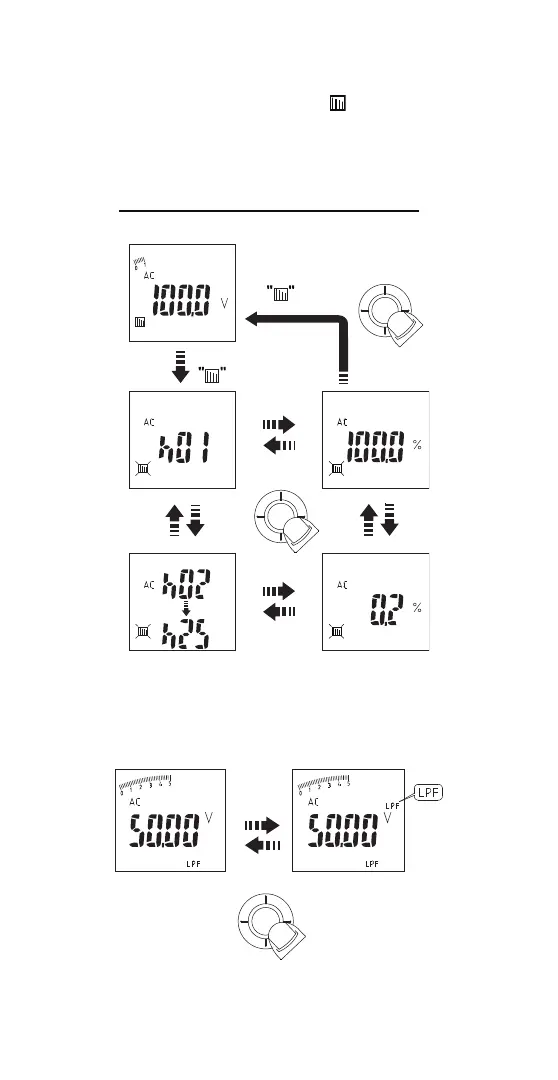

8.8.2 Individual Harmonic Mesurement
Harmonic measurements individual order (fundamental wave to 25th)
can be displayed. In ACV or ACA mode (after confirming AC using the
ENTER key), use the cursor key to select
, and then
press the ENTER key to confirm.
(To cancel the function, press the ENTER key
for more than 2 seconds.)
H
n=
nth order harmonic voltage (current) rms value
fundamental wave voltage (current) rms value
×100
%
"RIGHTWARD"
"LEFTWARD"
"DOWNWARD"
"UPWARD"
"LEFTWARD"
"RIGHTWARD"
"DOWNWARD"
"UPWARD"
ENTER
>2SEC
8.9 Low pass filter (AC mode only)
The CW10 has a function for turning the filter on (use) /off.
On ACV or ACA mode (using ENTER key to confirm AC),
Using the cursor key to select “LPF” and then
press the ENTER key to confirm.
"LPF"
ENTER
[NOTE]
Cut of frequency: approximately 1 kHz
