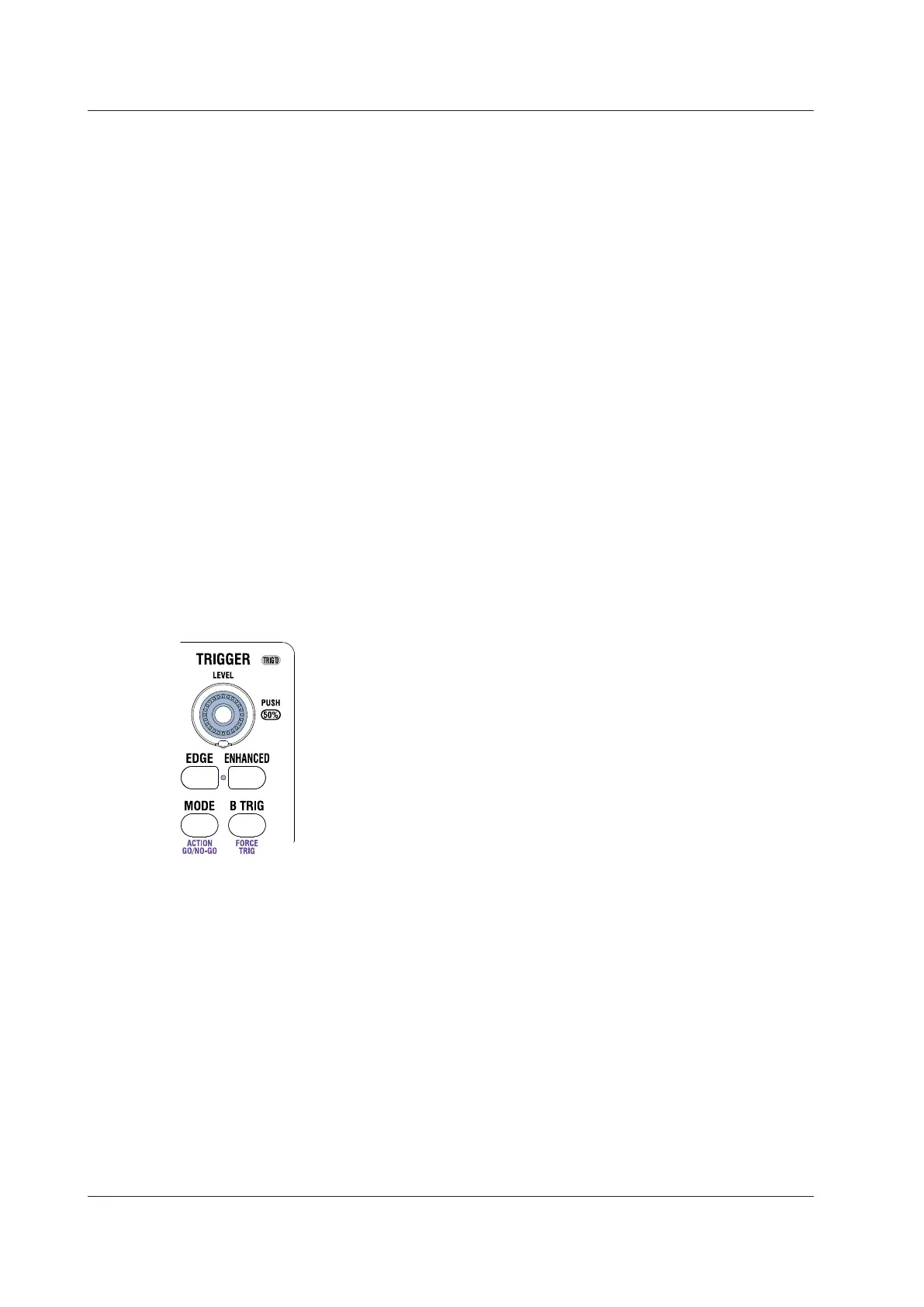

Triggering
EDGE Key
Displays a menu for setting the edge trigger. When you press this key, the edge trigger is selected,
and the key illuminates.
ENHANCED Key
Displays a menu for setting the enhanced trigger. When you press this key, the enhanced trigger is
selected, and the key illuminates.
MODE Key
Displays a menu for selecting the trigger mode.
SHIFT+MODE (ACTION GO/NO-GO) Key
Press SHIFT and then press MODE to display an action-on-trigger menu or a GO/NO-GO menu.
B TRIG Key
Use this key to set trigger combinations with the Edge or Enhanced trigger and to set the trigger B
trigger type.
SHIFT+B TRIG (FORCE TRIG) Key
Press SHIFT and then press B TRIG to force the DLM4000 to trigger even when trigger conditions are
not met.
LEVEL Knob
Use this knob to set the trigger level. This knob has a push switch. You can press the knob to
automatically set the trigger level to the center of the waveform’s amplitude (50% of the amplitude).
TRIG’D Indicator
Illuminates when the DLM4000 triggers.
