YOKOGAWA DLM4038 Getting Started Guide

1-11
Component Names and Functions
IM DLM4038-03EN
1
2
3
4
5
6
App
Index
1.3 Screens

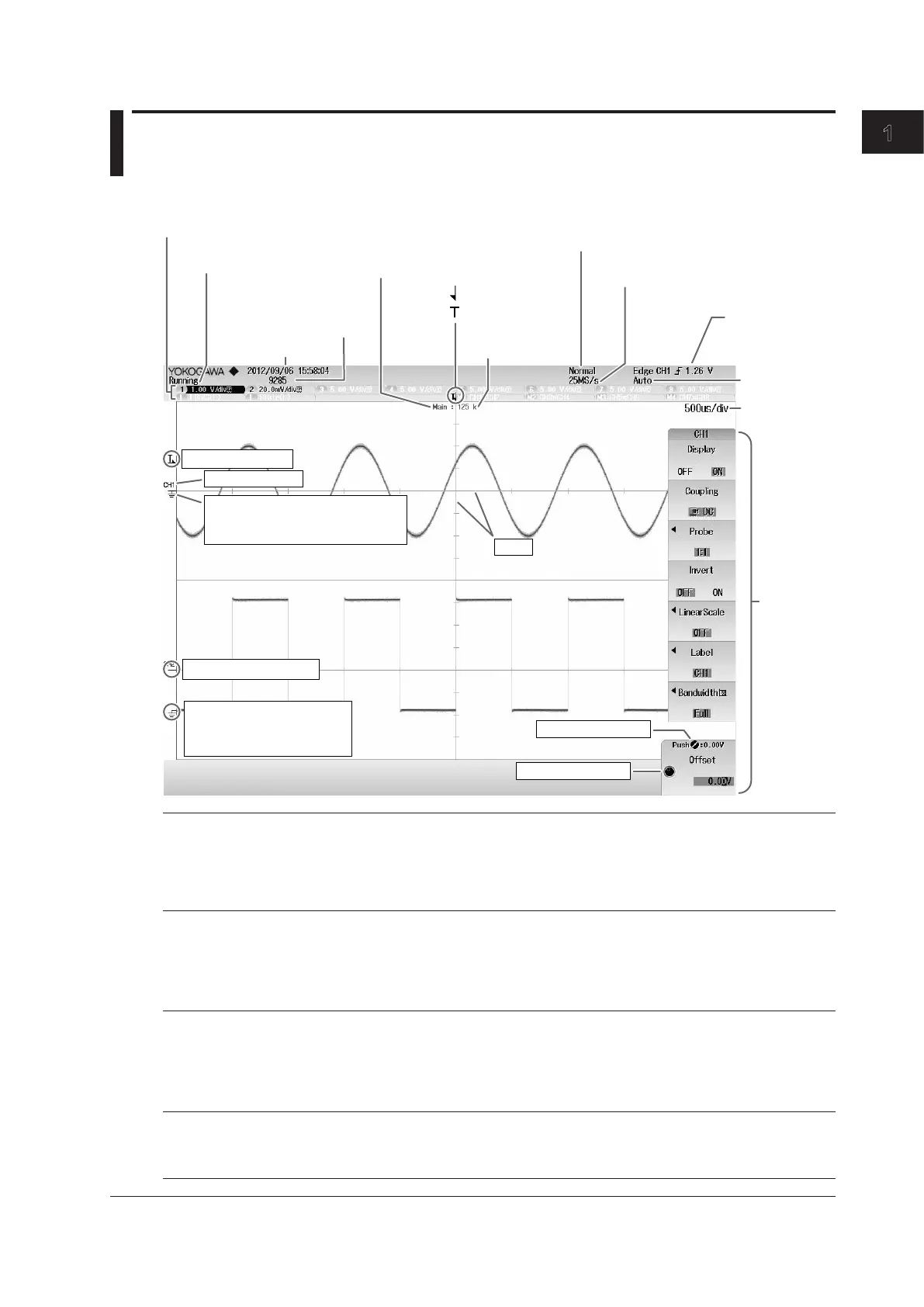

Normal Analog Signal Waveform Screen
Display record
length
Trigger position
Trigger point
Vertical position mark
Ground level mark
The display is inverted when
Invert is set to ON.
Trigger level mark
Waveform label
Indication when the vertical
position mark and the ground
level mark are in the same place
Sampling mode and sample rate
See the table below.
Acquisition mode
See the table below.
TIME/DIV
Trigger mode
Trigger type,
trigger slope,
trigger level, etc.
Date and time
Number of waveform
acquisitions
See the table below.
Type of window being displayed
Channel information
Vertical scale (SCALE), inupt coupling, computation, etc.
Waveform acquisition state
See the table below.
Setup menu
Grid
Jog shuttle mark
RESET key mark
Waveform Acquisition States
Stopped Waveform acquisition is stopped.
Running Waveform acquisition is taking place.
Preview This state indication appears when waveform acquisition is stopped and a waveform acquisition
condition such as the vertical scale (SCALE), time-axis scale (TIME/DIV), or trigger has been
changed.
Number of Waveform Acquisitions
Number Indicates the number of waveform acquisitions. While the waveform acquisition state is “Running,”
the number increases up to the specified waveform acquisition count (ACQ Count).
Waiting for Trig. The DLM4000 is waiting to trigger. This indication blinks.
Pre trig. Data before the trigger point (the pre-trigger section) is being acquired.
Post trig. Data after the trigger point (the post-trigger section) is being acquired.
Acquisition Mode
Normal Normal mode
Norm:Hi-Res Normal mode with high resolution mode enabled
Envelope Envelope mode. This indication is the same whether or not high resolution mode is enabled.
Average Averaging mode
Avg:Hi-Res Averaging mode with high resolution mode enabled
Sampling Mode and Sample Rate
Number Real-time sampling mode. Only the sample rate is displayed.
“IntP” and a number Interpolation mode. The sample rate is displayed after “IntP.”
“Rep” and a number Repetitive sampling mode. The sample rate is displayed after “Rep.”
