1-7
Component Names and Functions
IM DLM4038-03EN
1

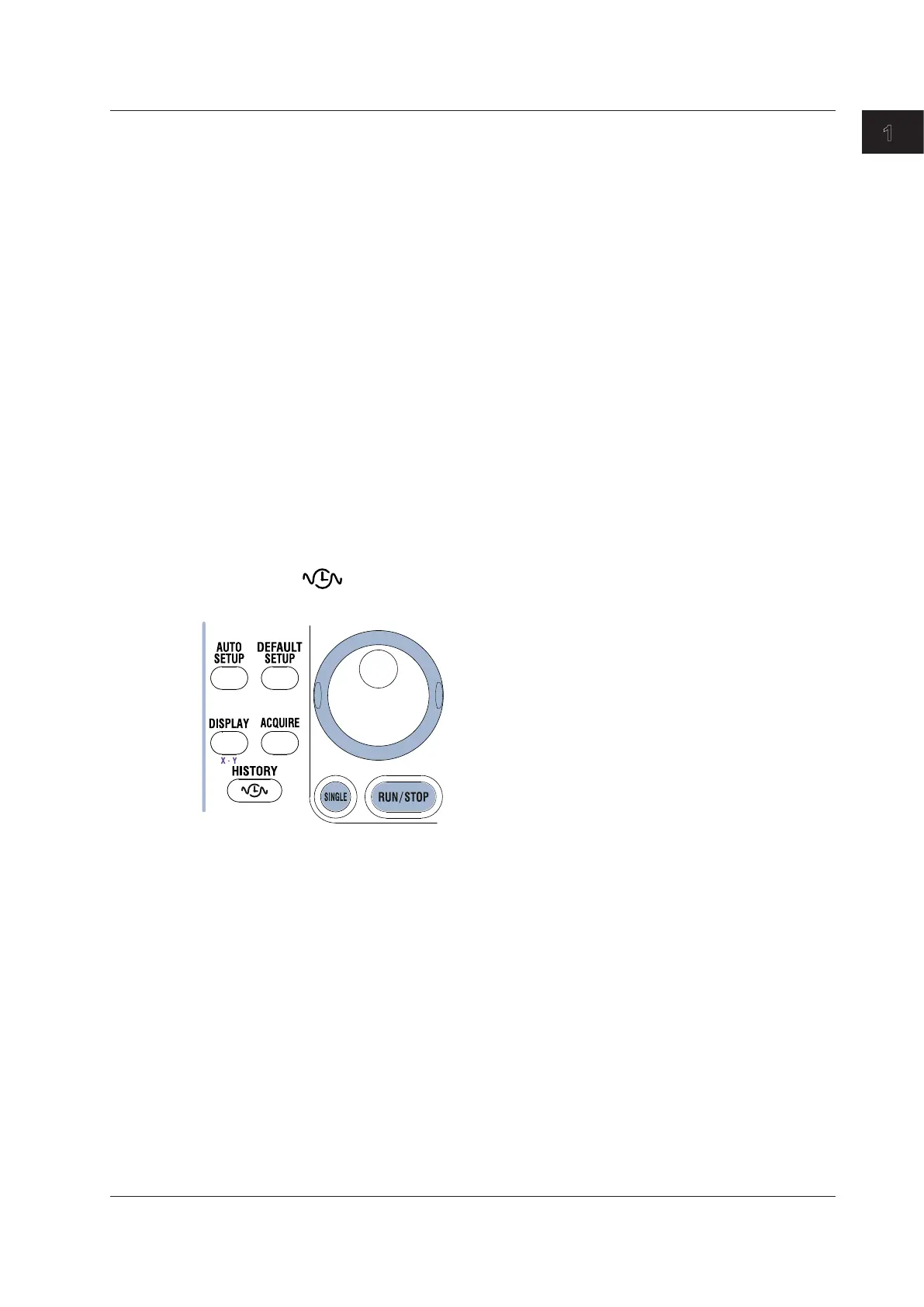

Waveform Acquisition and Display
AUTO SETUP Key
Automatically sets values that correspond to the input signal. UNDO appears in the menu, and you
can undo the settings made with this key.
DEFAULT SETUP Key
Restores each setting to its factory default value. UNDO appears in the menu, and you can undo the
settings made with this key.
ACQUIRE Key
Displays a menu for setting the signal acquisition mode.
RUN/STOP Key
Starts and stops signal acquisition according to the trigger mode. The key illuminates while the
DLM4000 is acquiring signals.
SINGLE Key
Acquires one waveform. In Average mode, the DLM4000 acquires one waveform that has been
obtained by linearly averaging waveforms for the specified number of times.
DISPLAY Key
Displays a menu for configuring the display.
SHIFT+DISPLAY (X-Y) Key
Press SHIFT and then press DISPLAY to display an X-Y display menu.
HISTORY ( ) Key
Displays a menu for displaying and searching the history waveforms.
1.2 Keys and Knobs
To Next Page
