2.2 Installing the Instrument
2-4
IM DLM4038-03EN

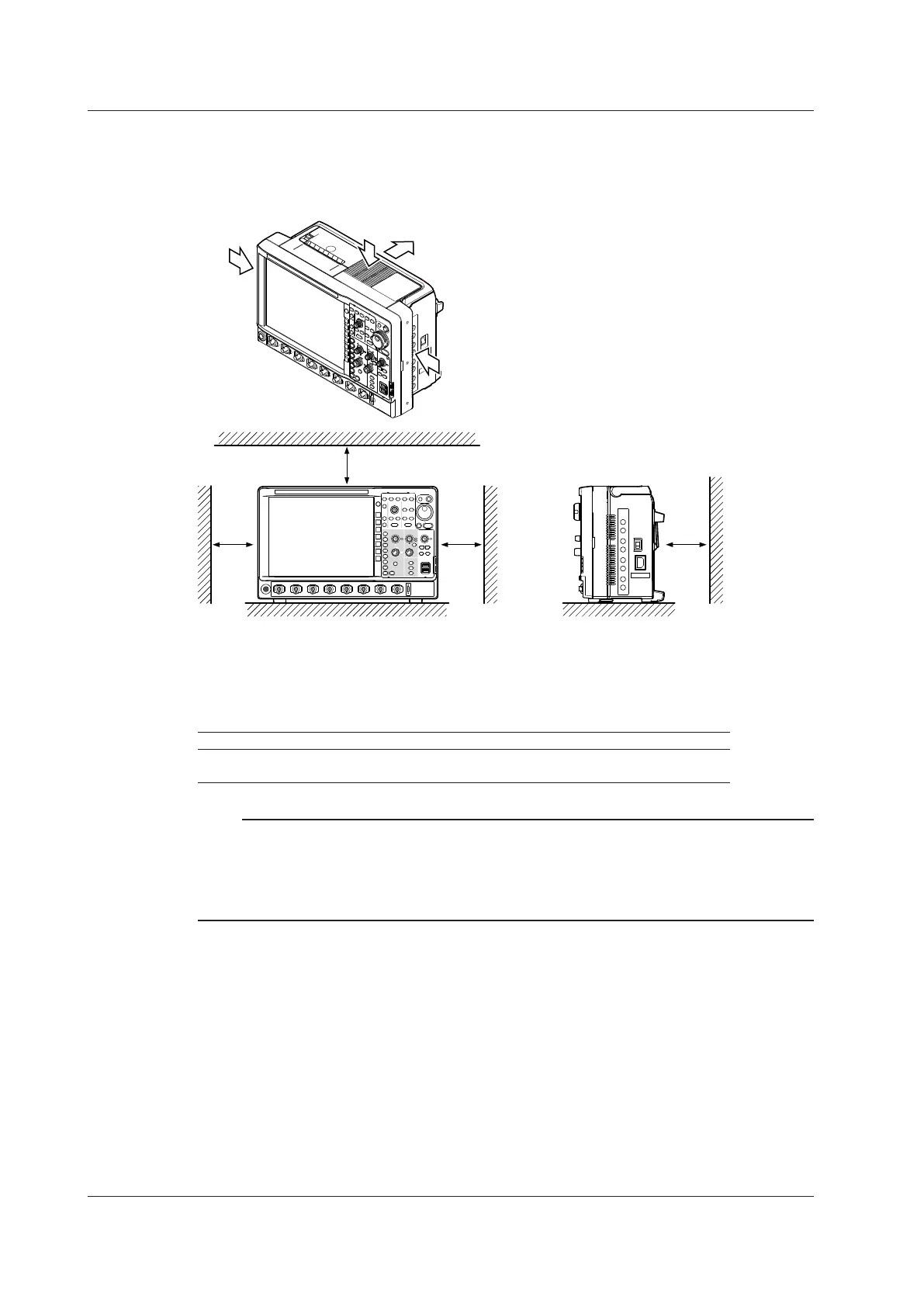

Well-Ventilated Location
Inlet holes are located on the top panel and the left and right side panels of the instrument. In addition,
there are outlet holes for the cooling fan on the rear panel. To prevent internal overheating, allow for
enough space around the instrument (see the figure below), and do not block the inlet and outlet holes.
10 cm or
more
10 cm or
more
10 cm or more
10 cm or
more
When connecting cables, allow for enough space, beyond the space shown in the figure above, to
carry out the procedure.
Ambient Temperature and Humidity
Use the instrument in the following environment.
Ambient temperature 5°C to 40°C
Ambient humidity 20 to 80%RH when the printer is not used. (No condensation)
35 to 80%RH when using the printer. (No condensation)
Note
• To ensure high measurement accuracy, operate the instrument within the following ranges: 23 ± 5°C and
55 ± 10%RH.
• Condensation may occur if the instrument is moved to another place where the ambient temperature or
humidity is higher, or if the temperature changes rapidly. In such cases, before you use the instrument,
allow it to adjust to the surrounding temperature for at least an hour.
Do Not Install the Instrument in the Following Places.
• In direct sunlight or near heat sources
• In an environment with excessive amounts of soot, steam, dust, or corrosive gas
• Near strong magnetic field sources
• Near high-voltage equipment or power lines
• In an environment that is subject to large levels of mechanical vibration
• On an unstable surface
• Outdoors or in locations subject to rain or water
