When all the ranges have been calibrated, tap Write.
The calibration values will be saved.
To reset the A/D calibration values to their factory defaults, tap Reset.
You do not have to tap Write.
10
To calibrate a different module, wire the module to calibrate, tap Back, and perform
steps 4 to 7.
11
Tap Exit. A confirmation screen is displayed. Tap OK to exist calibration mode.
Operation complete
Note
Do not perform any other operations (especially turning the GX/GP off) during calibration.
The GX/GP may malfunction.
UsingaPassword
You can use a password to allow only permitted users to perform calibration.
This is not available when you are using the advanced security function (/AS option).
1

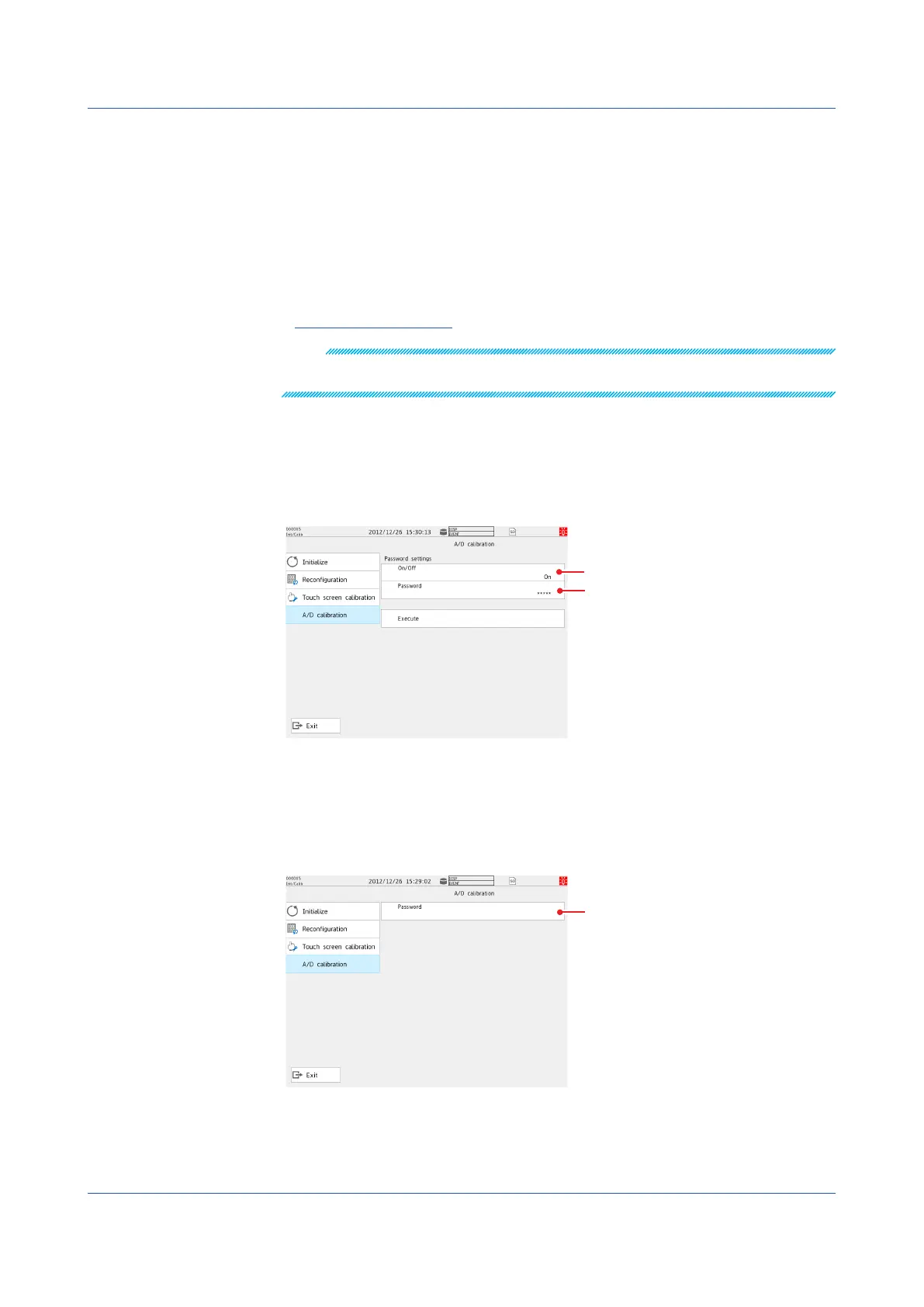

Tap the MENU key, Browse tab, Initialize Calibration, and menu A/D calibration.
The A/D calibration call-up screen appears.
Enable the password (On).
Set the password.
2
Tap On/Off under Password settings to select On.
3
Tap Password, and set the password.
The password is displayed using asterisks.
From the next time, enter the password to show the A/D calibration call-up screen.
Enter the password.
