Functional Overview
Overview
The GX/GP is a paperless recorder that can display
measured data in real time on its touch screen and save
the data in an SD memory card.

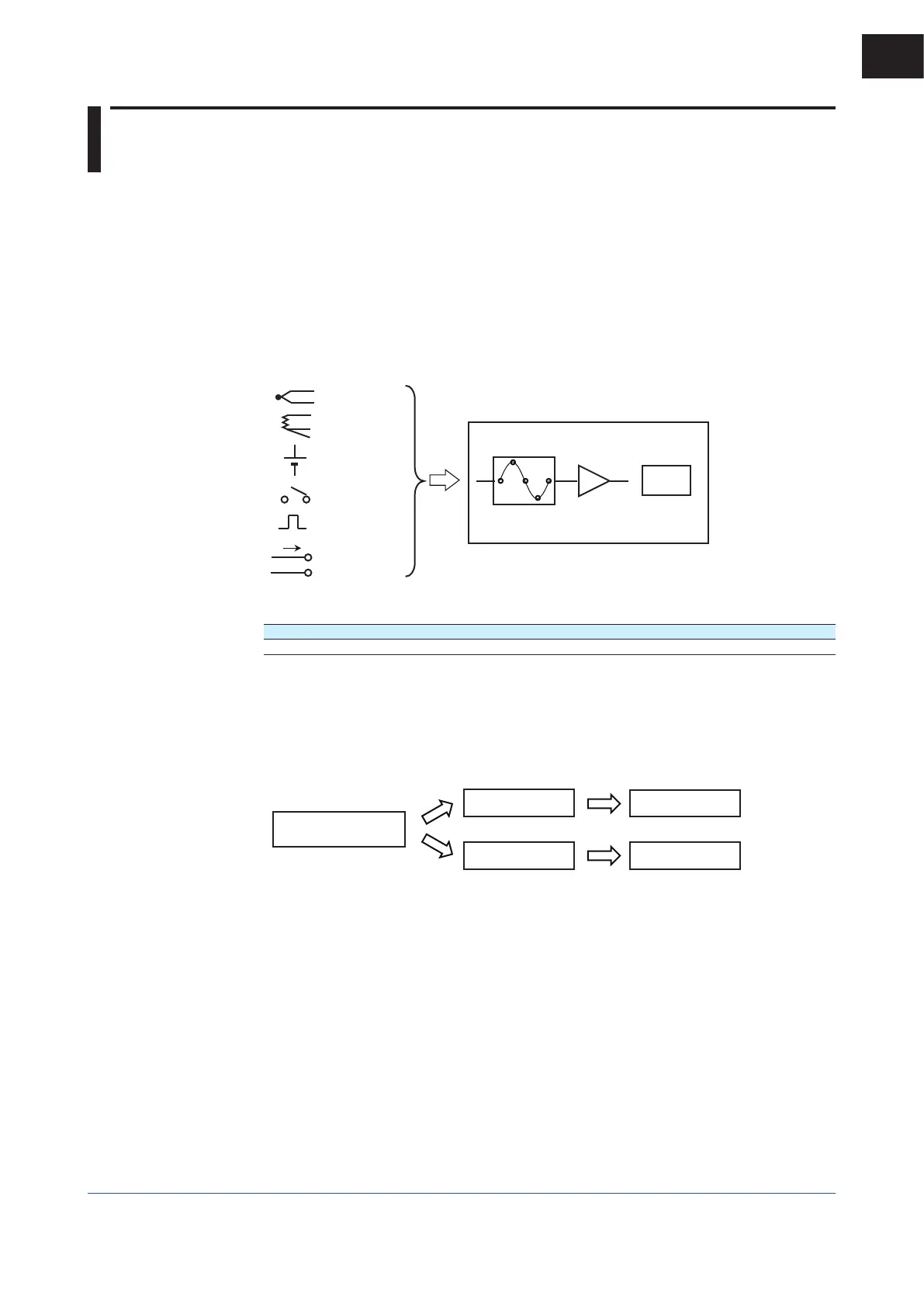

A variety of
signal inputs
GX/GP configuration
and real-time monitoring
on a Web browser
Displaying data on
Universal Viewer
GX/GP
Ethernet
Redundant measured data
on internal memory and external media
SD memory card
A Variety of Source Signals
The GX/GP can connect to DC voltage, TC, RTD, ON/
OFF, DC current (mA) and pulse inputs and measure
temperature, flow rate, and other parameters. The GX/GP
acquires data by sampling input signals at the set scan
interval. The shortest scan interval is 1 ms (High-speed AI
module). Up to four alarm conditions can be specified on
each measurement channel.
Expandable Module Construction
The I/O section is modular, so you can configure your
system according to the input types and number of
measurement points.
Modules
Model Name Channels
GX90XA Analog input module 4/6/10
GX90XD Digital input module 16
GX90YD Digital output module 6
GX90WD Digital Input/Output Module Input : 8 ,
Output : 6
GX90XP Pulse Input Module 10
GX90YA Analog output module 4
GX90UT PID Control Module 26
• Up to 10 modules can be installed in the GX20/GP20.
• Up to 3 modules can be installed in the GX10/GP10.
• Different modules can coexist.
* Up to nine modules for the GX20/GP20 and two
modules for the GX10/GP10 when an GX60 is
connected.
Detachable module
terminal block
Maintenance is easy!
GX60 Connection and Multichannel
Measurement
An GX60 I/O can be connected to the GX20/GP20 to
measure up to 450 channels. On the standard type,
you can connect the GX60 to allocate input sections at
different locations.
GX/GP
