High-speed Measurement, Dual
Interval Measurement (Measurement
mode)

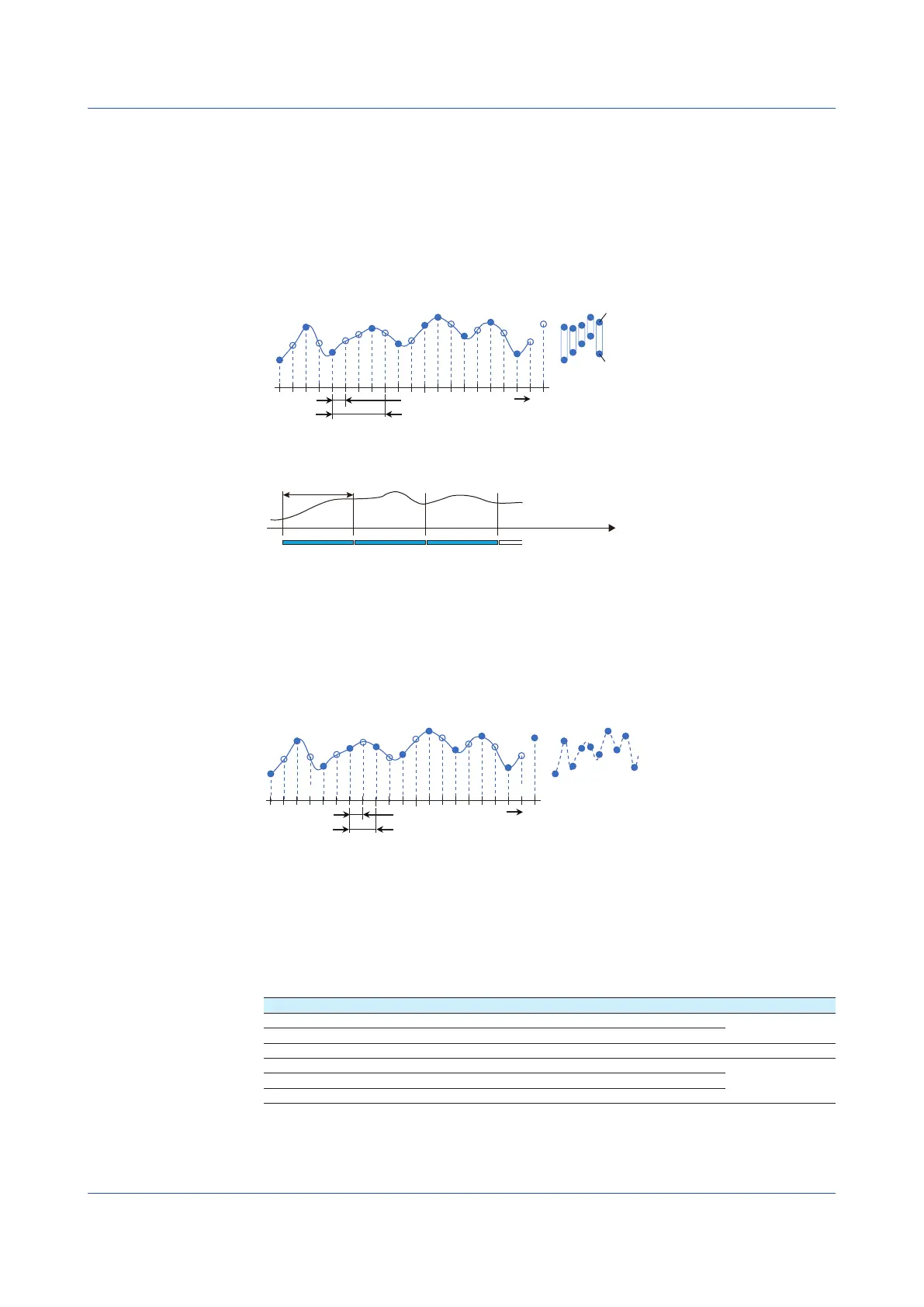

The GX/GP has measurement modes to allow high-speed
measurement and simultaneous measurement of slow
and fast signals.
In high-speed measurement, a high-speed AI module
can be installed to achieve measurement at the shortest
interval of 1 ms.
In dual interval measurement, measurement can be
performed by two measurement groups with different scan
intervals.
Various measurements can be performed by changing the
measurement mode according to the measurement target
and measurement conditions.
Loop Control and Program Control
Function (/PG Option)
By installing a PID Control Module (GX90UT), you can
perform PID control of up to 20 loops (up to 6 loops for
the GX10/GP10). In addition to control loop monitoring
and the control group screen for convenient operation,
adjustment using the tuning screen is available.
Adding the /PG option to the GX/GP main unit allows
99 patterns and 99 segments of program patterns to be
stored in the main unit. Further, 32 time events can be set.
Data Storage
There are two ways to store data. One way is to record
measured data at all times (display data and event data).
The other way is to record only when events, such as
alarms, occur (event data). Measured data is saved to
the internal memory at the specified interval. Data in
the internal memory can be saved to the SD memory
card automatically or manually. Measured data can
be transferred automatically to an FTP server over an
Ethernet connection.
GX/GP
Signal input
card
FTP server
Internal memory
A Variety of Display Functions
Measured data can be displayed in groups as trend
waveforms, values, and bar graphs. There is also an
overview display that you can monitor all channels on a
single screen.
Overview Multi panel
Custom Display (Option, /CG)
You can control and monitor on a custom display
consisting of digital, trend, bar graph, and other
components and images can that are laid out freely.
Custom displays are created using DAQStudio (DXA170),
a software application sold separately.
Displays that you create are loaded into the GX/GP from
DAQStudio or from an external storage medium.
