YOKOGAWA GX60 User Manual

9
All Rights Reserved. Copyright © 2012, Yokogawa Electric Corporation
GS 04L52B01-01EN
Nov. 10, 2015-00

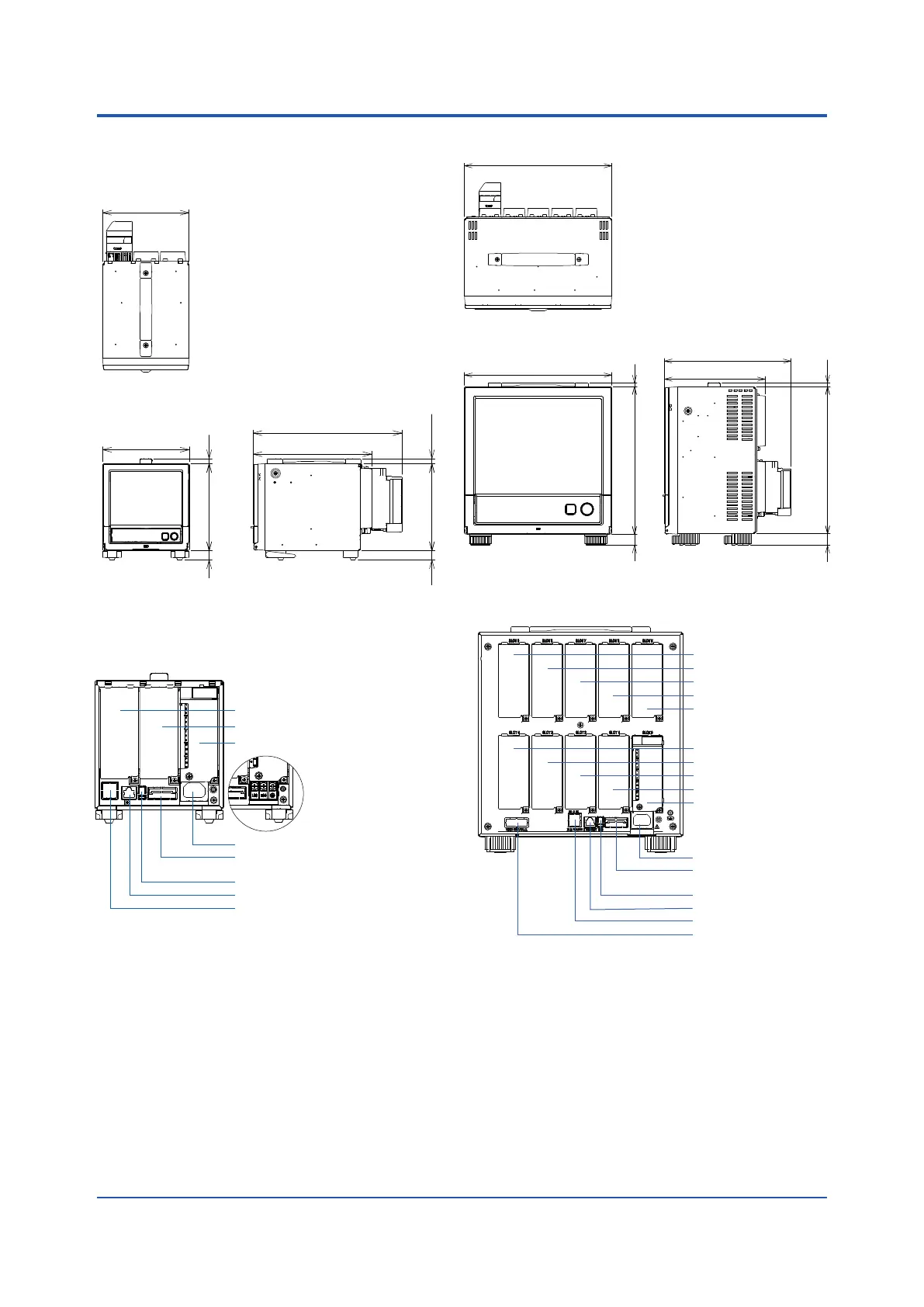

 EXTERNAL DIMENSIONS AND
PANEL CUTOUT DIMENSIONS
GP10:
*1: with modules
*2: without moduels
Unit: mm (approx. inch)
Unless otherwise specified,
tolerance is ±3% (however,
tolerance is ±0.3 mm when
below 10 mm).
(*1)
(*2)
MAX
8(0.31)
8(0.31)
144.9(5.70)
(0.59)
15
196.8(7.75)
247.2(9.73)
144(5.67)
144.9(5.70)
15 (0.59)
143.6(5.65)
When using the stand, GP10 is upward 12 degrees.
Rearview
Power supply, Inlet (Power supply code:1)
Power supply,
Screw terminal
(Power supply code:1)
I/O module (slot 1)
RS-422A/485 terminal (/C3)
or RS232 terminal (/C2)
USB port (/UH)
Ethernet port
FAIL/STATUS terminal (/FL)
I/O module (slot 2)
I/O module (slot 0)
GP20:
Unit: mm (approx. inch)
Unless otherwise specified,
tolerance is ±3% (however,
tolerance is ±0.3 mm when
below 10 mm).
*1: with modules
*2: without moduels
(*1)
(*2)
MAX
288(11.34)
196.8(7.75)
287(11.30)
8(0.31)
23
(0.91)
247.2(9.73)
288(11.34)
288(11.34)
8(0.31)
22 (0.87)
Rearview
Power supply
RS-422A/485 terminal (/C3)
or RS232 terminal (/C2)
USB port (/UH)
Ethernet port
FAIL/STATUS terminal (/FL)
VGA output terminal (/D5)
I/O module (slot 0)
I/O module (slot 1)
I/O module (slot 2)
I/O module (slot 3)
I/O module (slot 4)
I/O module (slot 5)
I/O module (slot 6)
I/O module (slot 7)
I/O module (slot 8)
I/O module (slot 9)
PrecautionstoBeTakenWhileWiring
Withascrewterminal,werecommendthatyouuseacrimp-on
lugwithaninsulationsleeve(M4forpowersupplywiring,M3for
signal wiring).
Recommendedsignalwiringcrimp-onlug
N1.25-MS3(JSTMfg.Co.,Ltd.)
