Installation and wiring 3-1
3. INSTALLATION AND WIRING
3-1. Installation and dimensions
3-1-1. Installation site
The EXA converter is weatherproof and can be installed inside or outside. It should, however, be installed as
close as possible to the sensor to avoid long cable runs between sensor and converter. In any case, the
cable length should not exceed 50 meters (162 feet). Select an installation site where:
Mechanical vibrations and shocks are negligible
No relay/power switches are in the direct environment
Access is possible to the cable glands (see figure 3-1)
The transmitter is not mounted in direct sunlight or severe weather conditions
Maintenance procedures are possible (avoiding corrosive environments)
The ambient temperature and humidity of the installation environment must be within the limits of the instru-
ment specifications. (See chapter 2).
3-1-2. Mounting methods
Refer to figures 3-2 and 3-3. Note that the EXA converter has universal mounting capabilities:
Panel mounting using optional brackets
Surface mounting on a plate (using bolts from the back)
Wall mounting on a bracket (for example, on a solid wall)
Pipe mounting using a bracket on a horizontal or vertical pipe (maximum pipe diameter 50 mm)
min.185 (7.25)
min.195 (7.75)
138 (5.43)
138
M6
M6
M5
cut - out = 138 x 138 (5.43 x 5.43)

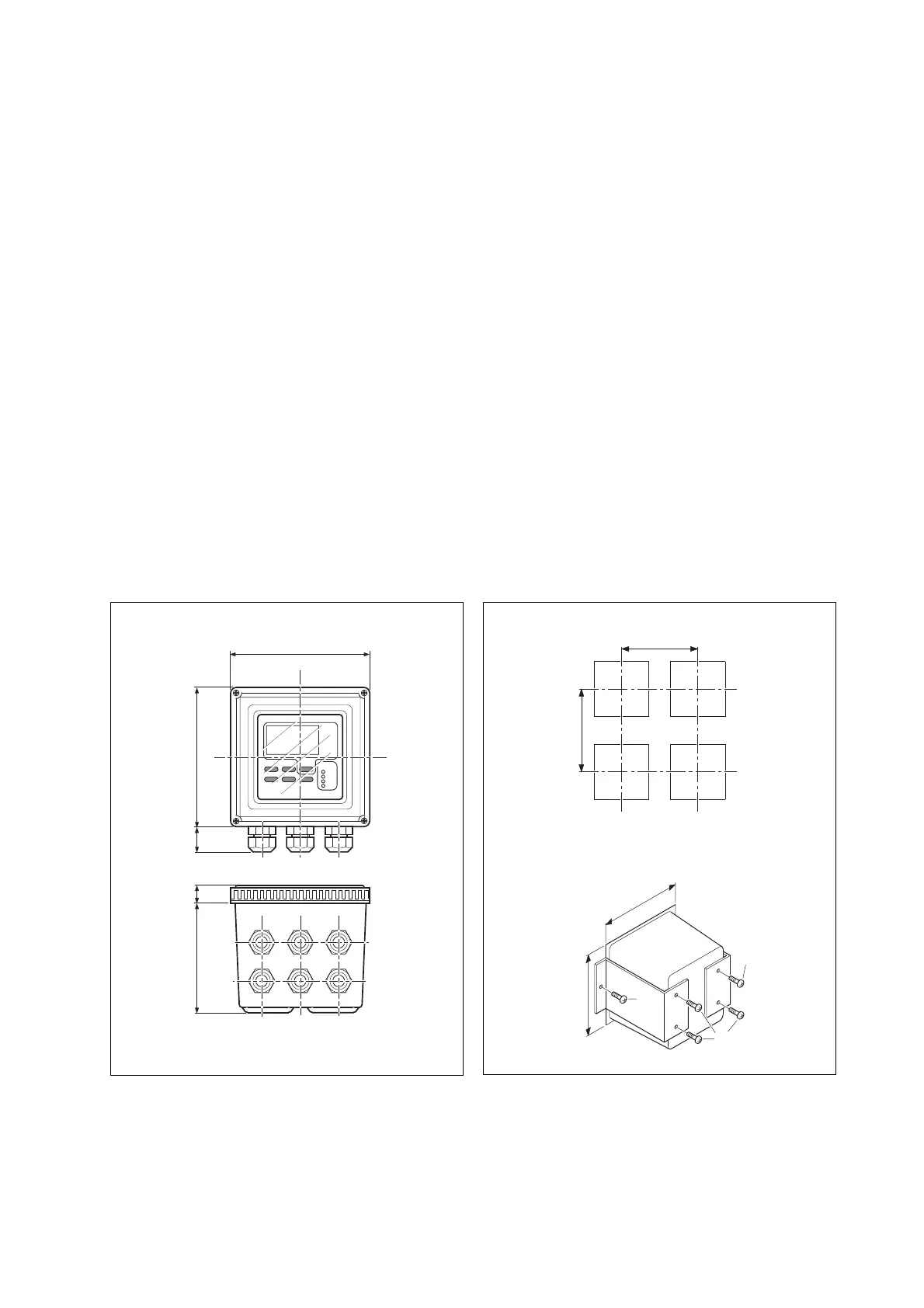

Figure 3-1. Housing dimensions and layout of
glands
Figure 3-2. Panel mounting diagram
144(5.67)
144(5.67)
115.5(4.55)
24(1)
16.5
(0.65)
