Parameter setting 5-5
IM 12B6B3-E-H

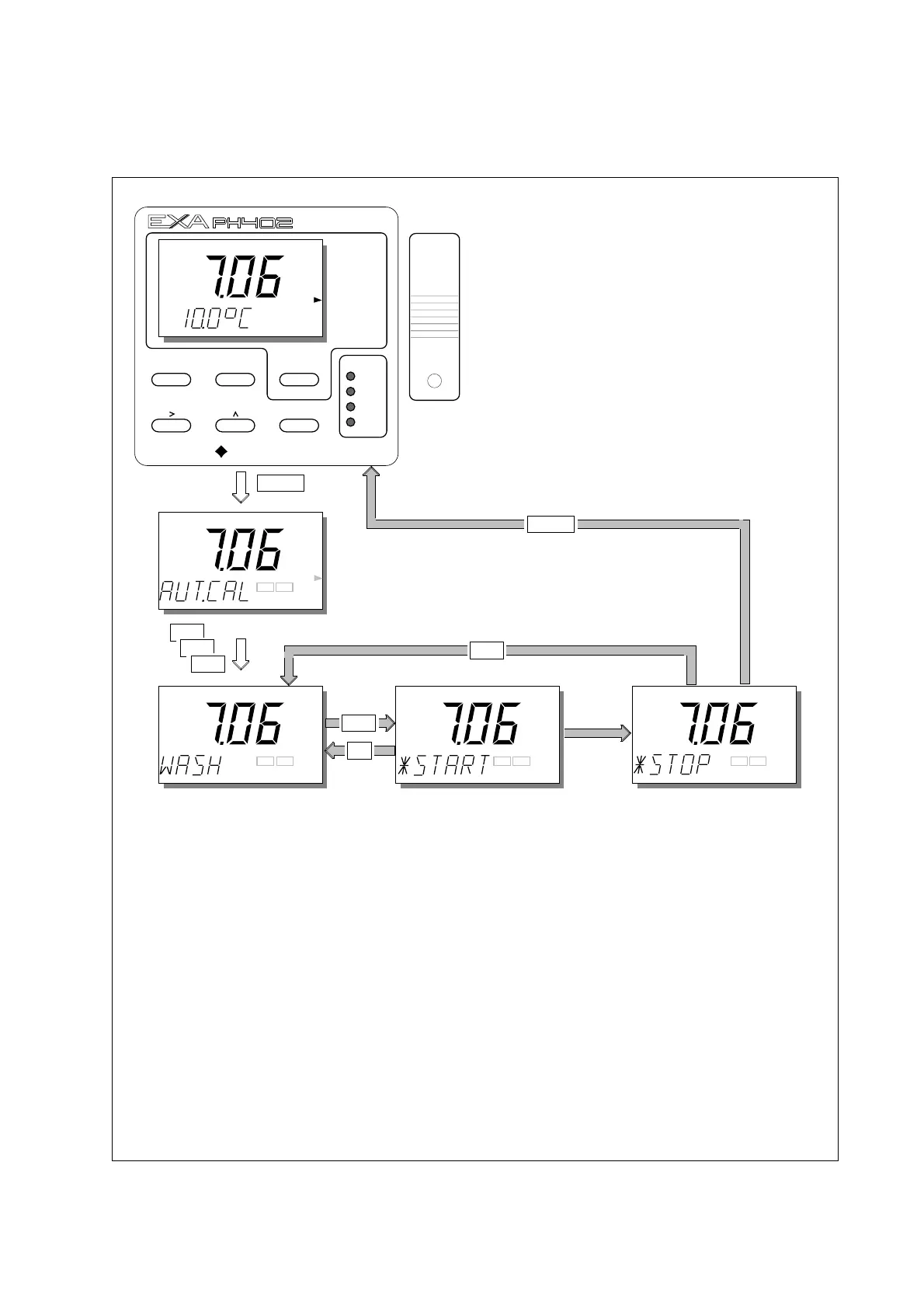

5-1-4. Manual wash start/stop
MEASURE
NO
MODE
YES
ENT
YOKOGAWA
MODE
CONTACTS
S1
S2
WASH/S3
FAIL/S4
SETPOINTS
RANGE
SET HOLD
SERVICE
*
WASH
NO
YES
pH
AUT.CAL
YES
NO
pH
pH
MODE
NO
NO
NO
NO
YES
pH
NO
YES
pH
YES
MODE
YES
NO
Note: Wash must first be switched on in commissioning mode section 5-2-4,
and set for adjustment in the maintenance mode, by service code 51.
WASH ACTIVE press YES
to stop.
36
38
