3-14 Installation and wiring
IM 12B6B3-E-H
Extension cable may be purchased in bulk quantities or in pre-finished lengths. In the case of bulk quantities
cut to length, then it is necessary to terminate the cable as shown below.

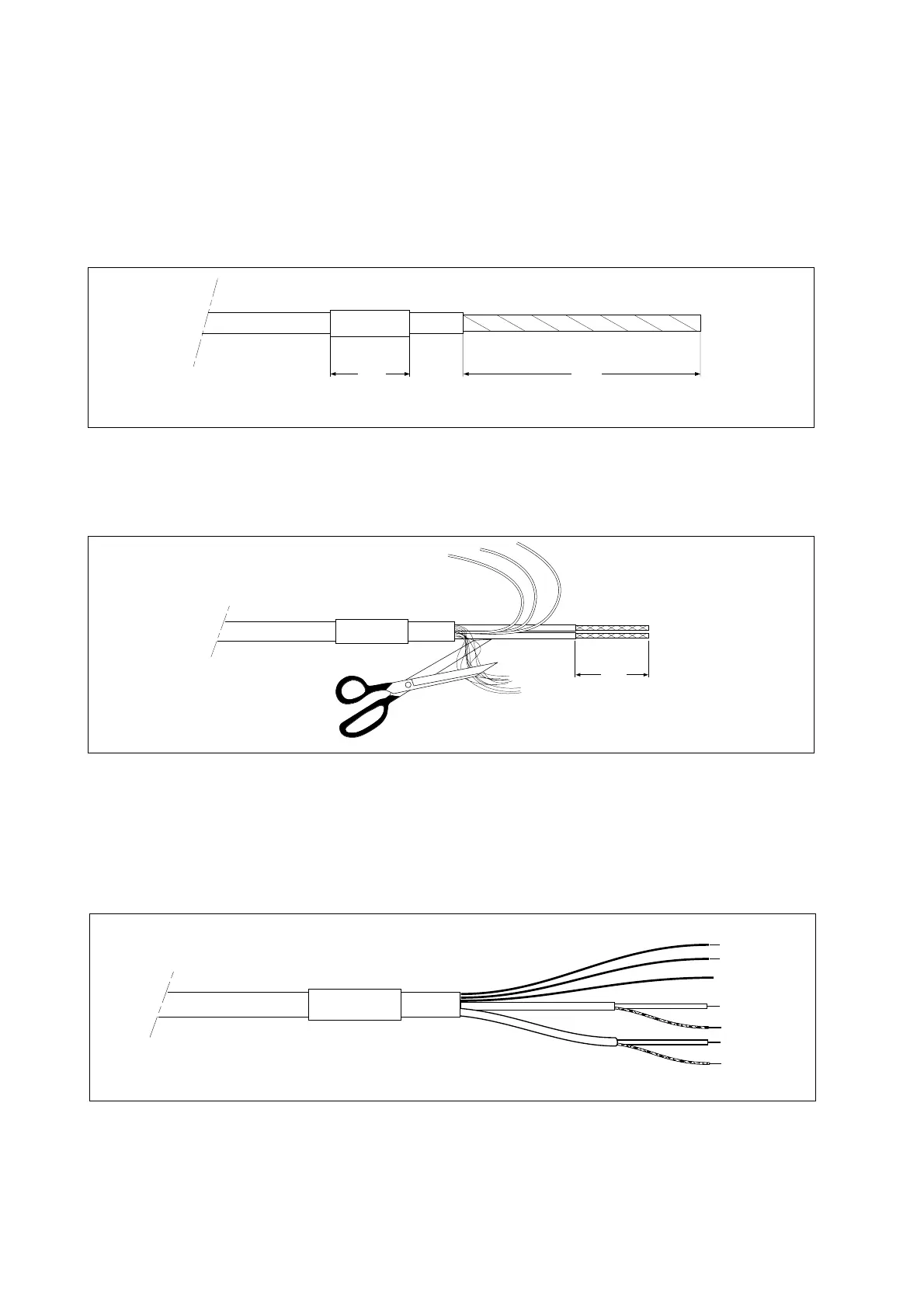

Termination procedure for WF10 cable.
1. Slide 3 cm of heat shrink tube (9 x 1.5) over the cable end to be terminated.
2. Strip 9 cm of the outer (black) insulating material, taking care not to cut or damage internal cores.
T
3 cm
heat shrink
9 cm
remove insulation
Fig. 3-13a.
3. Remove loose copper screening, and cut off the cotton packing threads as short as possible.
4. Strip insulation from the last 3 cm of the brown, and the white coaxial cores.
3 cm
cotton threads
TE
Fig. 3-13b.
5. Extract the coaxial cores from the braid, and trim off the black (low-noise) screening material as short as
possible.
6. Insulate the overall screen and the 2 coaxial screens with suitable plastic tubing.
7. Strip and terminate all ends with suitable (crimp) terminals and identify with numbers as shown.
11
12
17
15
16
13
14
Fig. 3-13.c
8. Finally shrink the overall heat shrink tube into position.
