YOKOGAWA ProSafe-RS User Manual

1. System Installation Requirements
1-20
TI 32P01J10-01EN
 Grounding with Other System
Do not connect ProSafe-RS’s cabinet with other system cabinets or consoles electrically using
bolts or other connection mechanism in order to avoid unexpected electrical connection or
interference.
When ProSafe-RS is joining side by side with other system cabinets or consoles, ensure to insert
insulating sheets.
The cabinets or consoles other than ProSafe-RS must be insulated from a oor and connect it to
a protective grounding system using a di󰀨erent grounding cable.
CENTUM VP can be treated as the ProSafe-RS system in this page.
F010403.ai
G
Equipmment
Grounding bus inlet
Protective grounding system
Insulating sheet
Insulating sheet
ProSafe-RS
G: Grounding Bar
G
Other system
Cabinet Cabinet
/Console Type
Insulating sheet material:
Thickness:
PVC or
PL-PEV, PL-PEM Bakelite
5-10 mm

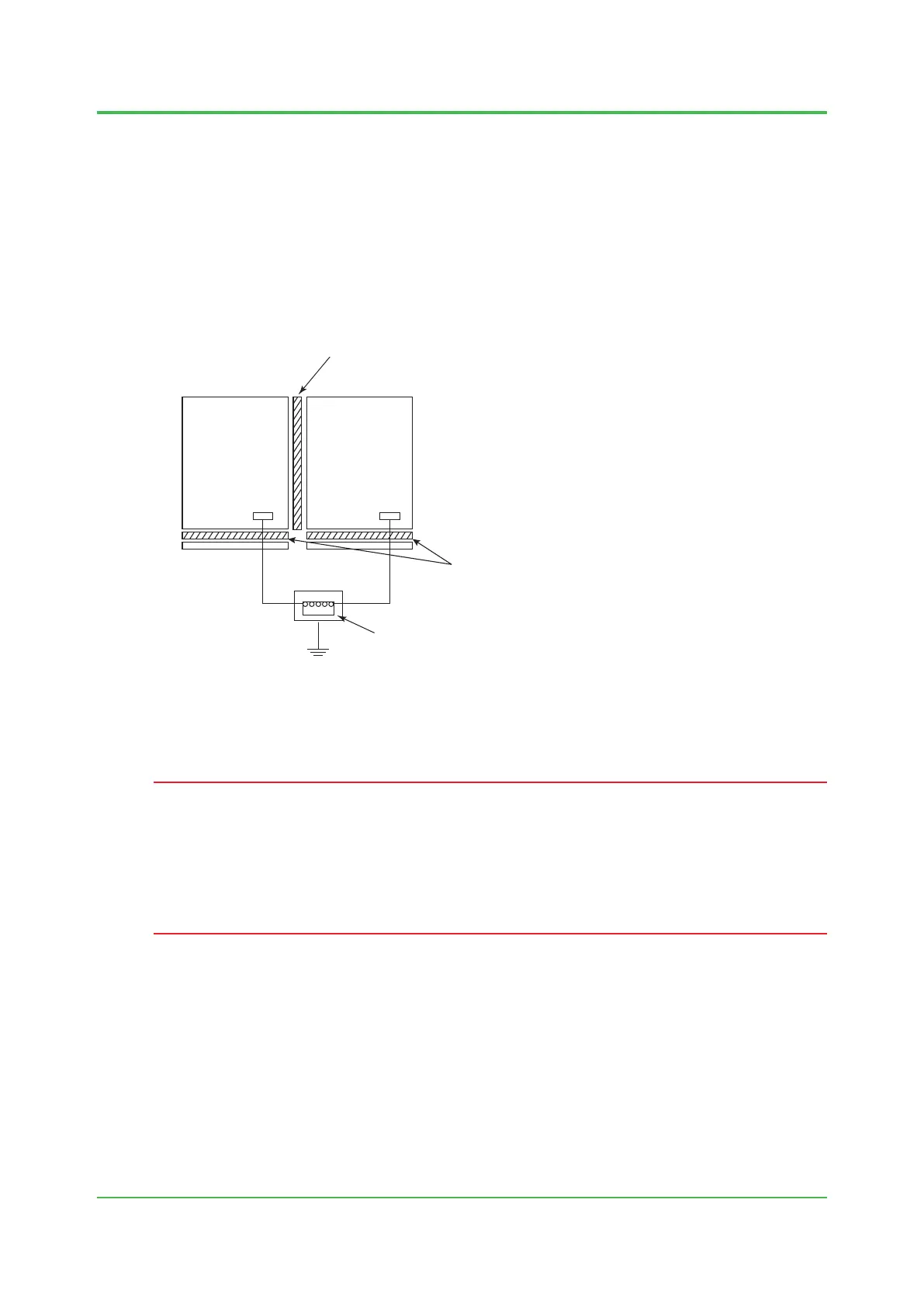

Figure Grounding Using Insulating Sheets
IMPORTANT
Do not install the following systems side-by-side with ProSafe-RS:
• Systems using power supply voltages over 300 V AC.
• Systems with current consumption over 50 A.
• System containing high frequency sources.
Mar. 15, 2018-00
