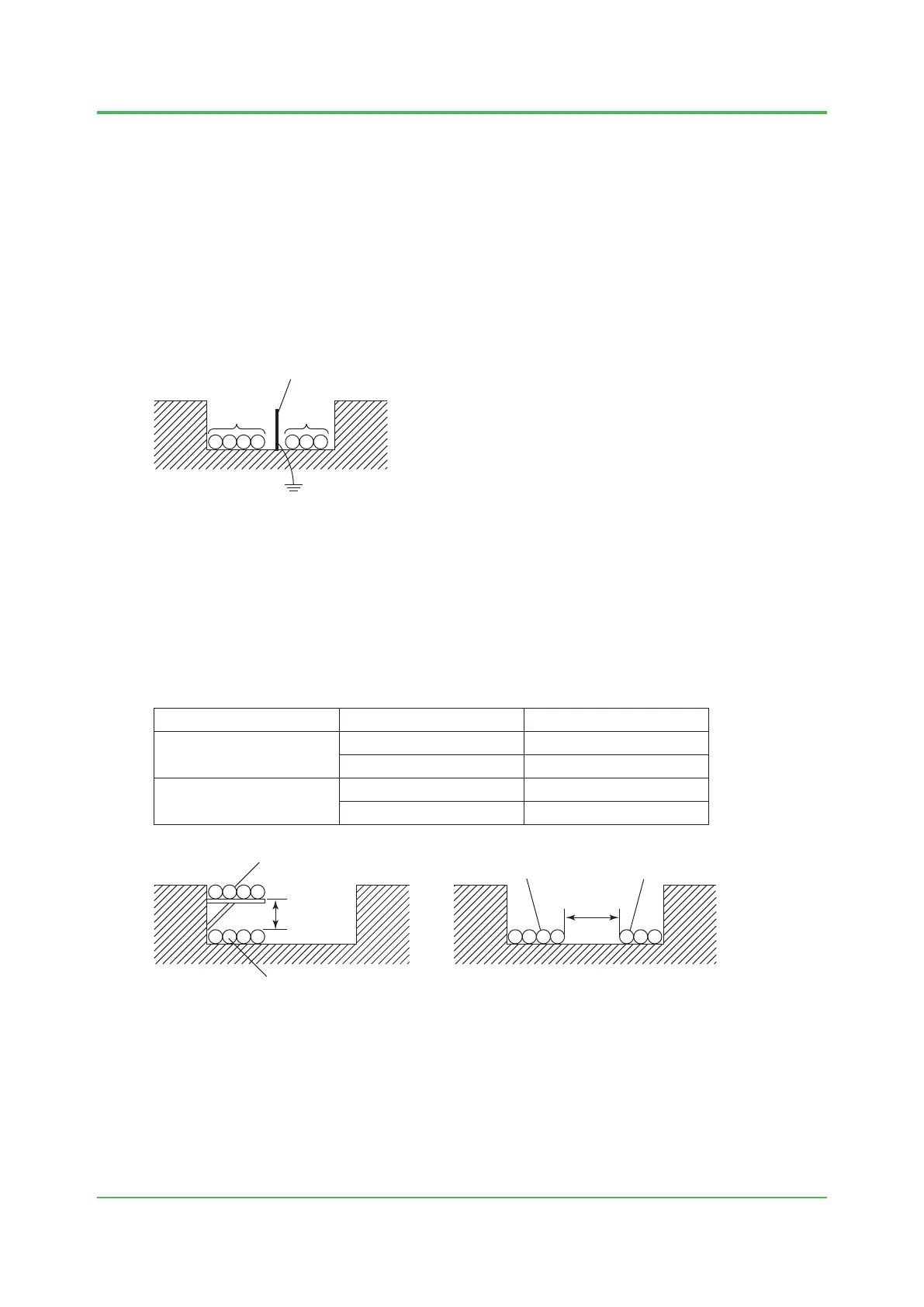

1.6 Cabling Requirements
The following requirements must be fullled to prevent an equipment malfunction when
laying power and signal cables (these are shielded cables unless specied).
Signal cables used for high-voltage, high-frequency signals (inductive load ON/OFF) must
be separated from other signal cables.
 Separator
To prevent an equipment malfunction, provide a separator between power and signal cables as
illustrated below:
Signal
cables
Power
cables
Separator (steel plate)
Protective grounding system
separate from ProSafe-RS system grounding
F010601.ai
Figure Separator Used in Duct/Pit
 Distance between Cables
If a separator cannot be used, keep a distance between signal cables and power cables.
The distances between cables due to operating voltages and currents are shown below.
Table Required Distance between Power & Shielded Signal Cables
Operating voltage Operating current Distance
240 V AC max
10 A max 150 mm min
10 A min 600 mm min
240 V AC min
10 A max 600 mm min
10 A min Cannot be laid together
Power cables
F010602.ai
150 mm
or more
Signal cables
Signal cables Power cables
150 mm
or more
Figure Distance between Cables under Pit/Free-access Floor
