YOKOGAWA ProSafe-RS User Manual

2. Transportation, Storage and Installation
2-30
TI 32P01J10-01EN
Mar. 29, 2019-00
Table Specications of a cabinet ambient temperature and an air supply / air exhaust port
(In case only N-IO nodes (Intrinsic Safety Barrier) are included in a cabinet.)
Cabinet
ambient
temperature
Air
supply
port
Air ow
Area of an air
supply/ air exhaust
port (Panel cut of a
cabinet)
Product
example
Remarks
50 ºC or less Fan
Door fan
230 m
3
/h
or more
Air supply port
60000 mm
2
or more
Air exhaust port
60000 mm
2
or more
Rittal
SK3239
series (Fan)
• Be sure to mount two or more
push-t door fans on each side
in case of a failure.
• The air ow and the area in
the left show the total value on
each side.
Notes
The following shows the common notes to the examples.
• The ventilation for each modules shall not be blocked.
• The mounting plate for mounting the IOBP shall be made of metal, regardless of whether
DIN rail or panel mounting.
• A DIN rail shall be made of metal.
• For mounting restrictions other than the above, refer to the General Specications (GS).
Position of an air supply / air exhaust port
In this mounting example, arrange an air supply / air exhaust port as follows.
F020526.ai
230
800
Air exhaust port
Air supply port
2000
200 or less
200 or less
Unit: mm
570
Note: This is the dimension from the end face of the cabinet. (Not the dimension from the end face of the cabinet door.)

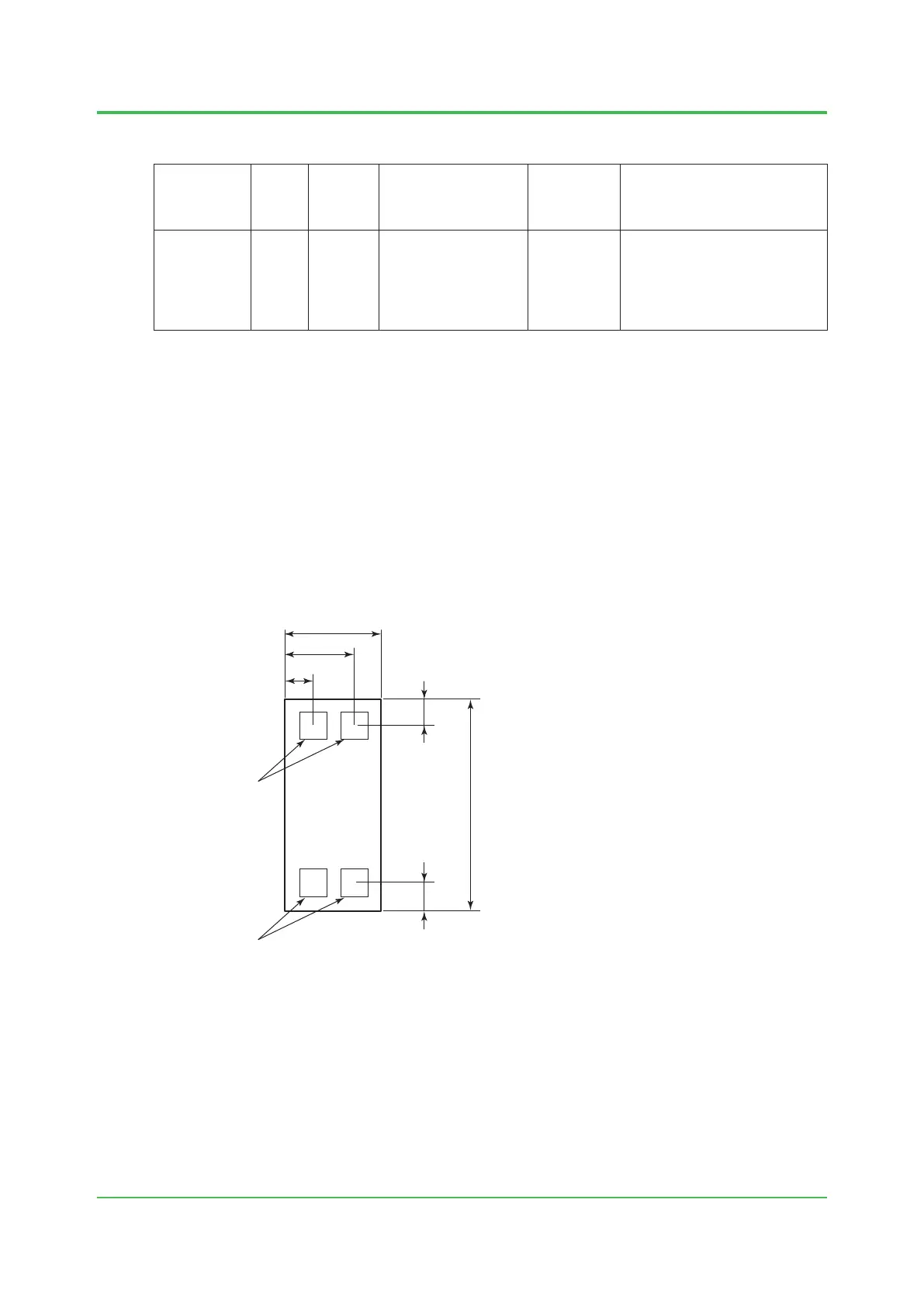

Figure Position of an air supply/ air exhaust port
