General Instruction Manual
Product specification
Identification
14 / 90
IM 01U10B00-00EN-R, 3rd edition, 2018-07-09
General
specifications
All available properties of the Rotamass Total Insight Coriolis mass flow and density me-
ter are specified by means of a model code.
The position of the model code relevant to the respective property is depicted and high-
lighted in blue.
U S 36 40H BA1 0 2 C5 A NN00 2 JA 1
P8
- - -
- /-
RC
1 2 3 4 6 75 9 10 11 12 13 14 158
Fig.7: Example of an model code
A complete description of the model code is included in the General Specifications (GS)
of the corresponding product family.
4.3 Identification
The model code can be used to identify the flow meter along with its specification. The
model code is located on each main nameplate.

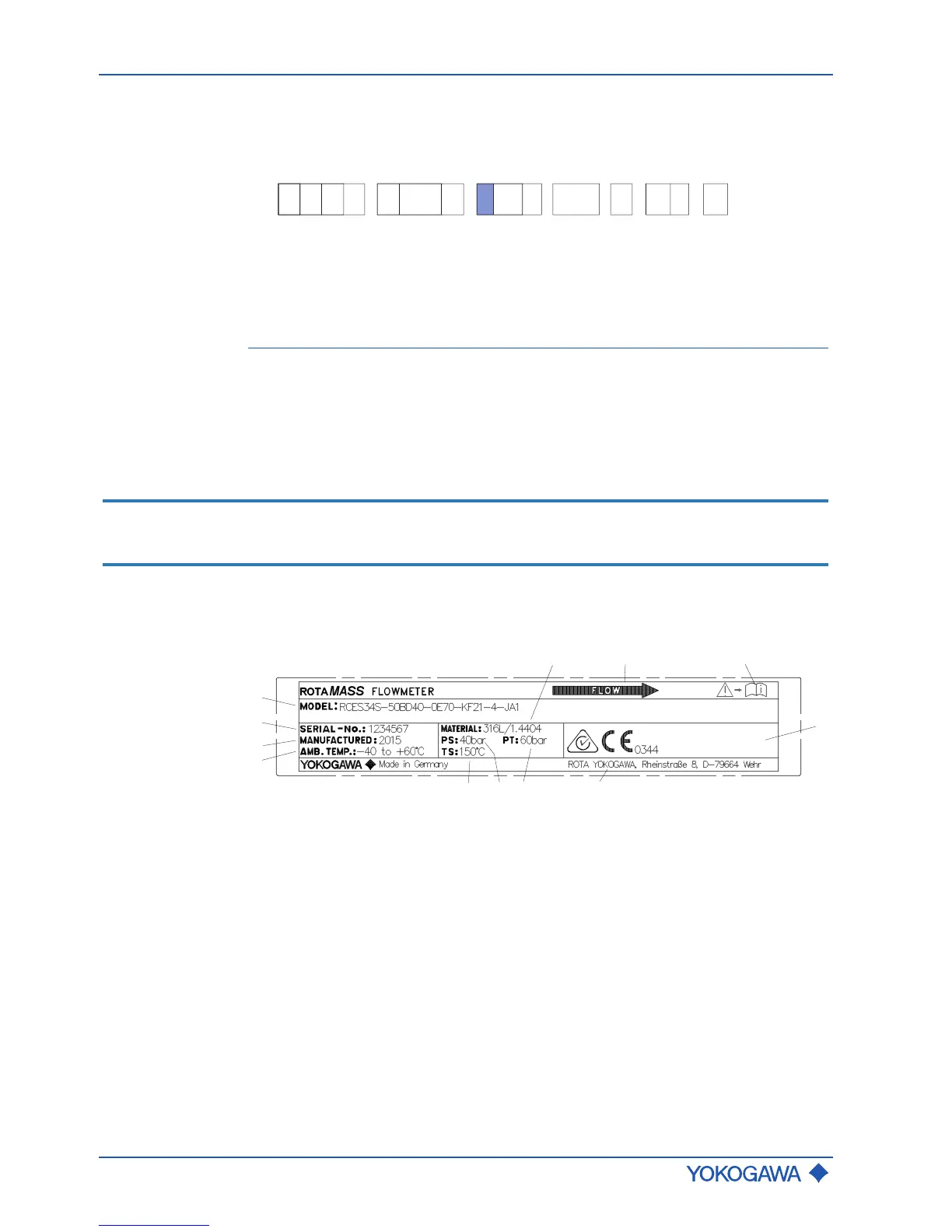

4.3.1 Nameplates
The sensor as well as the transmitter each contain a main nameplate and an additional
nameplate that feature different information.
NOTICE
For individual applications (e.g. marine applications with option MC␣) additional limita-
tions to those on the nameplate may apply according to the respective applicable regula-
tions.
The variants of the nameplates are described below.
Sensor
Main sensor
nameplate
1 Model code 7 Warning that requires reading the
documentation
2 Serial number 8 Area for conformity marking
3 Year of manufacture 9 Manufacturer's address
4 Ambient temperature range 10 Test pressure
5 Kind of material 11 Maximum allowed working pres-
sure at room temperature
6 Direction of flow 12 Maximum allowed process temper-
ature
