YOKOGAWA Total Insight series - Page 43

Transmitter
Quick Reference Instruction Manual
Wiring
IM01U10A00-00EN-R, 2nd edition, 2017-08-29
43 / 54

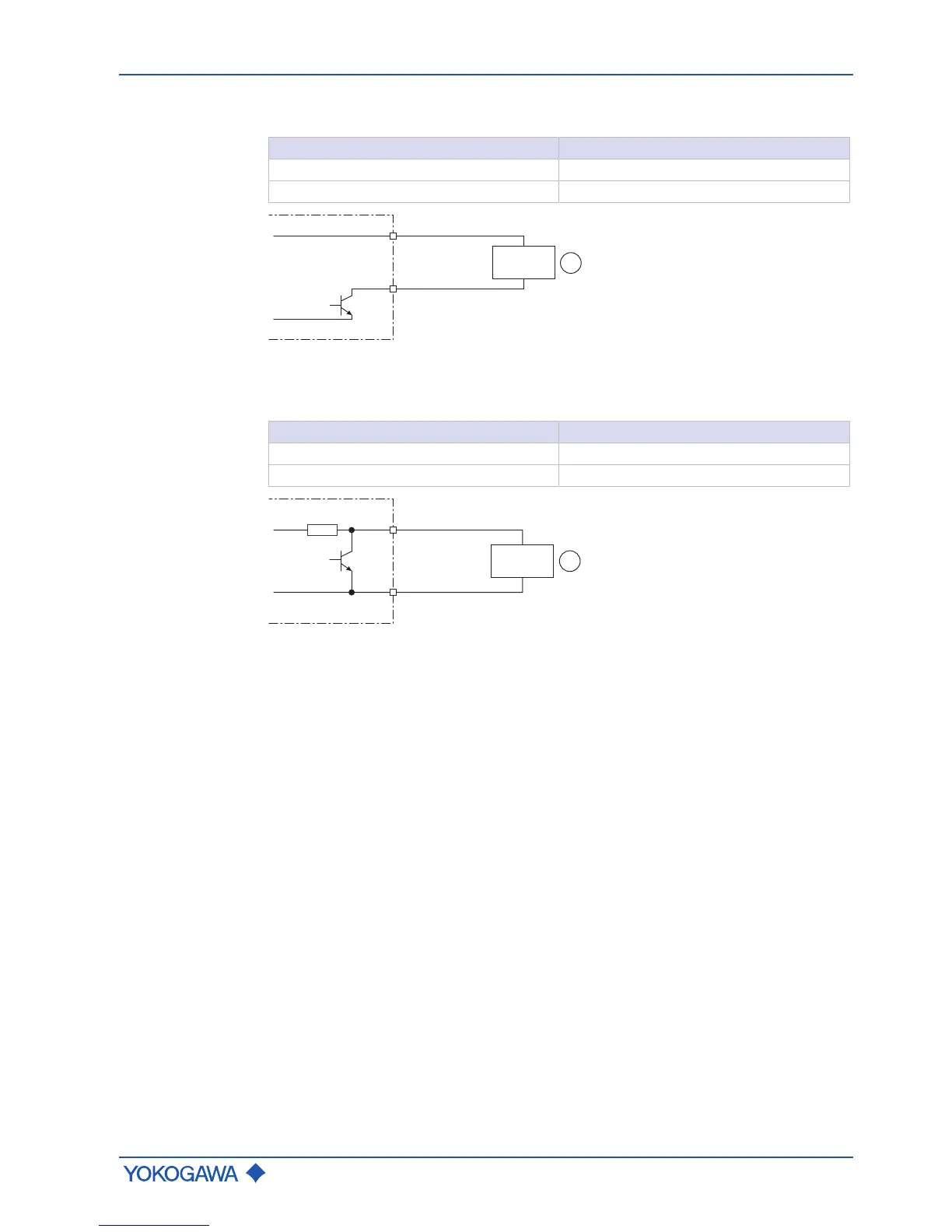

Active status
output P/Sout
Since this is a transistor contact, maximum allowed current as well as polarity and level of
output voltage must be observed during wiring.
Value
Load resistance > 1 kΩ
Internal power supply 24 V
DC
±20 %
P/Sout+
P/Sout-
24 V
0 V
1
ROTAMASS
Fig.31: Active status output connection P/Sout
① External device with load resistance
Active status output
P/Sout with internal
pull-up resistor
Value
Internal pull-up resistor 2.2 kΩ
Internal power supply 24 V
DC
±20 %
1
P/Sout+
P/Sout-
24 V
0 V
ROTAMASS
Fig.32: Active status output P/Sout with internal pull-up resistor
① External device
