YOKOGAWA Total Insight series User Manual

Quick Reference Instruction Manual
Wiring
Transmitter
44 / 54
IM01U10A00-00EN-R, 2nd edition, 2017-08-29
Passive status
output P/Sout
Value
Output current ≤ 200 mA
Power supply ≤ 30 V
DC
P/Sout+ or Sout+
P/Sout- or Sout-
1
ROTAMASS

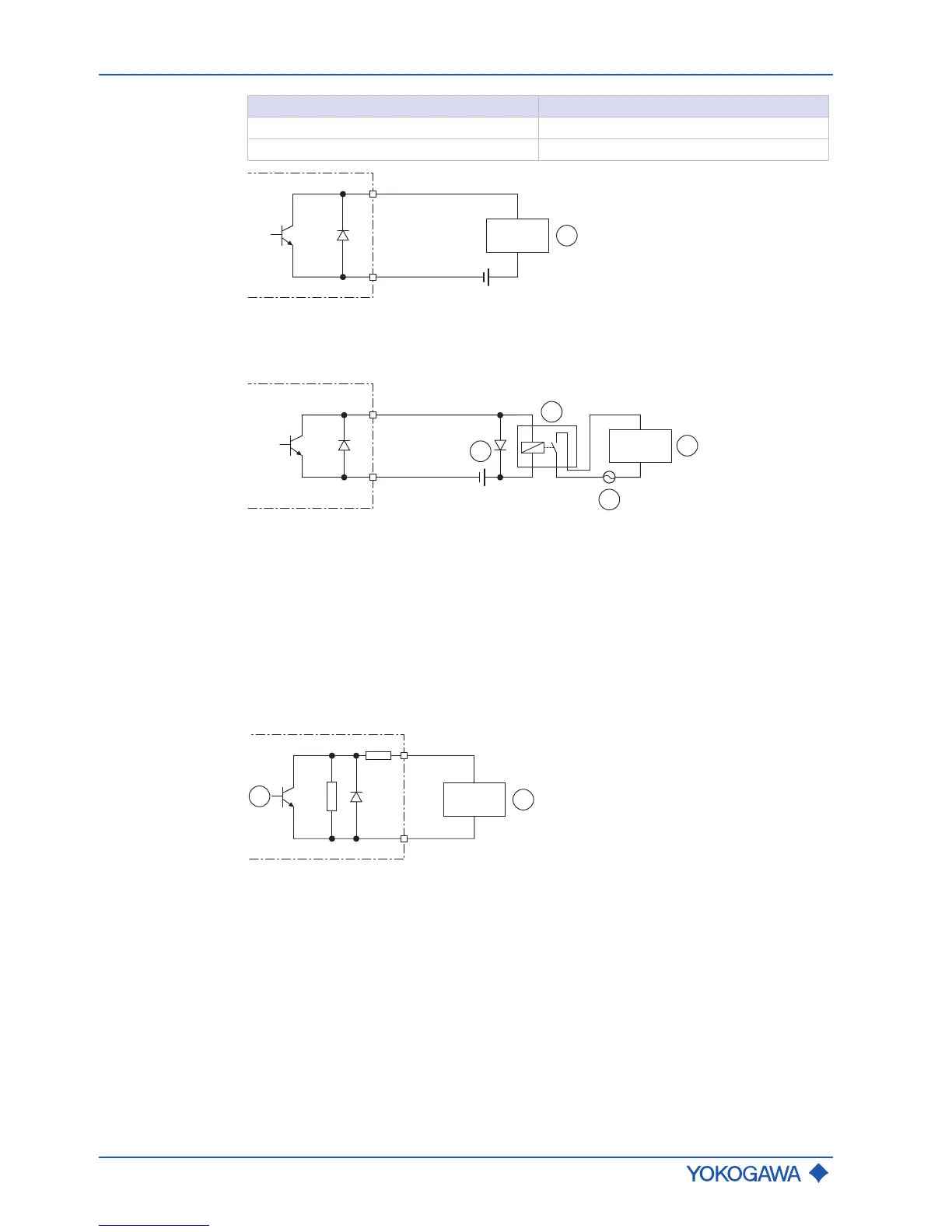

Fig.33: Passive status output connection P/Sout
① External device
P/Sout- or Sout-
P/Sout+ or Sout+
2
3
1
ROTAMASS
4
Fig.34: Passive status output connection P/Sout for solenoid valve circuit
① Relay
② Solenoid valve
③ Magnetic valve power supply
④ Protective diode
A relay must be connected in series to switch alternating voltage.
Passive pulse
or status output
P/Sout (NAMUR)
Output signals according to EN 60947-5-6 (previously NAMUR, worksheet NA001):
10kΩ
1kΩ
ROTAMASS
P/Sout+
P/Sout-
2
1
Fig.35: Passive pulse or status output with switching amplifier connected in series
① Passive pulse or status output
② Switching amplifier
