<Toc> <2. Initial Settings>
2-3
IM 05D01D02-41E 4th Edition: May 31, 2006-00

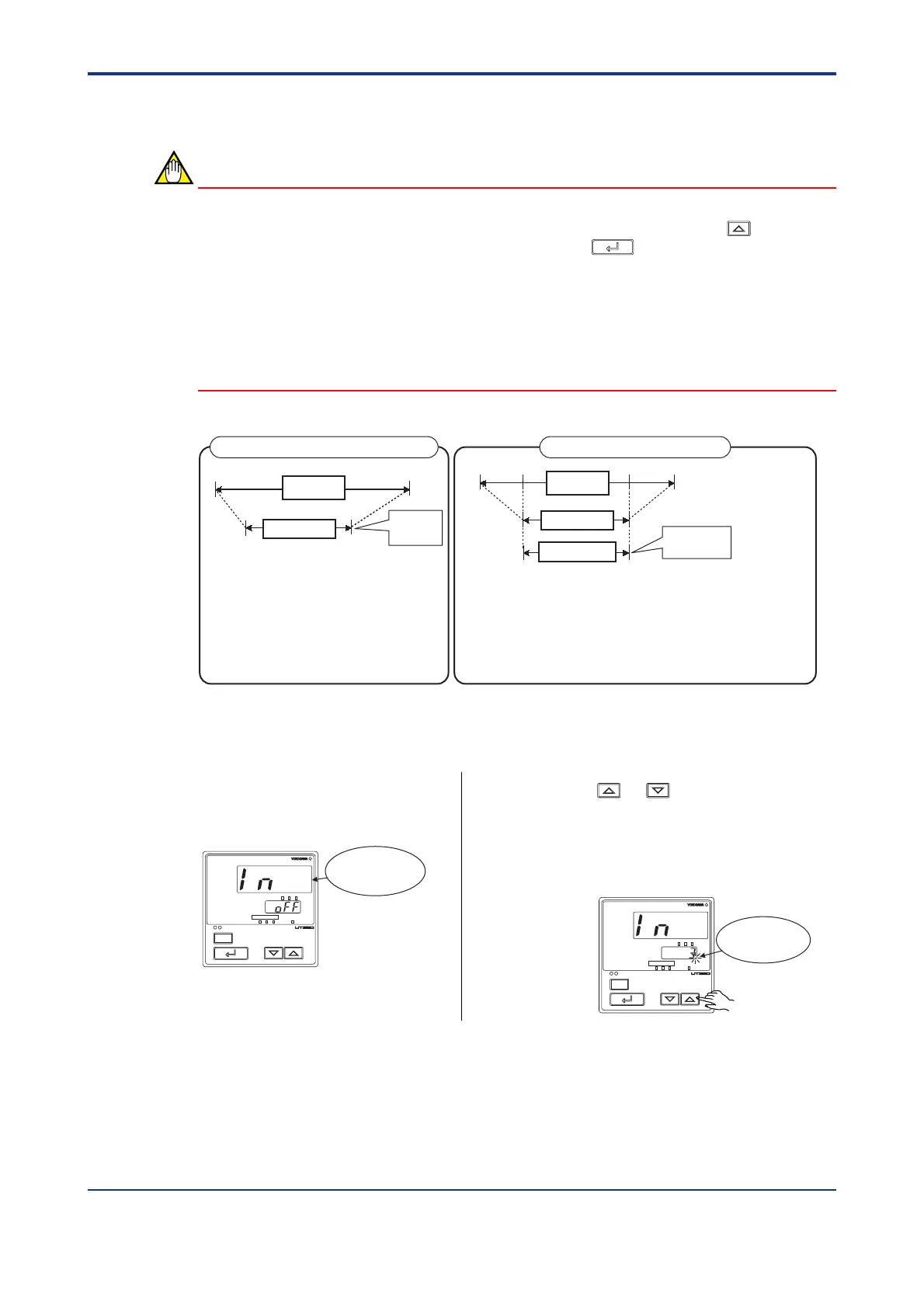

2.2 Setting PV Input Type (Setting First at Power-on)
NOTE
• The controller displays the operating display when the power is turned on. However, if
PV input type has not been set, “IN” appears. In this case, first use the
key to
display the input range code to use, then press the
SET/ENT
key to register it. Then, set
the maximum value (RH) and minimum value (RL) of the PV input range (for voltage
input, set the maximum value (SH) and minimum value (SL) of the PV input scale).
• The controller is configured to the initial value of each parameter at the factory before
shipment.
First check the initial values shown in “5.2 Lists of Parameters,” and change param-
eter values as necessary.
Minimum value of
PV input range (RL)
Instrument
input range
-200°C 1370°C
0°C 800°C
Maximum value of
PV input range (RH)
Minimum value of
PV input scale (SL)
1V 5V (Input signal)
0.0m
3
/h 50.0m
3
/h
Maximum value of
PV input scale (SH)
2V 4V
RL
RH
Parameters to be set for temperature input
1. PV input type (IN): Set according to a sensor
2. Maximum value of PV input range (RH): Set the
maximum value of the range to be controlled.
3. Minimum value of PV input range (RL): Set the
minimum value of the range to be controlled.
Parameters to be set for voltage input
1. PV input type (IN): Set according to an input signal
2. Maximum value of PV input range (RH): Set the maximum value of an input signal.
3. Minimum value of PV input range (RL): Set the minimum value of an input signal.
4. Position of PV input decimal point (SDP): Set the position of the decimal point for PV input display.
5. Maximum value of PV input scale (SH): Set the maximum value of the scale to be controlled.
6. Minimum value of PV input scale (SL): Set the minimum value of the scale to be controlled.
Set a range
to be
controlled
Set a range to
be controlled
PV input range
PV input range
PV input scale
Instrument
input range
Example of Temperature Input Example of Voltage Input
The following operating procedure describes an example of setting the controller to a K-
type thermocouple (-199.9C to 500.0C) and the measurement range of 0.0C to 200.0C.
1.
Display screen at power-on
The parameter “IN” for setting the PV input
type appears.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
parameter
“IN”.
2.
Press the or key to display the
required setpoint.
The figure below is an example of the
controller set to a K-type thermocouple
(-199.9C to 500.0C). See “Instrument Input
Range Codes.”
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Blinks during
change.
