YOKOGAWA UT320 User Manual

3-4
<Toc> <3. Operations>
IM 05D01D02-41E 4th Edition: May 31, 2006-00

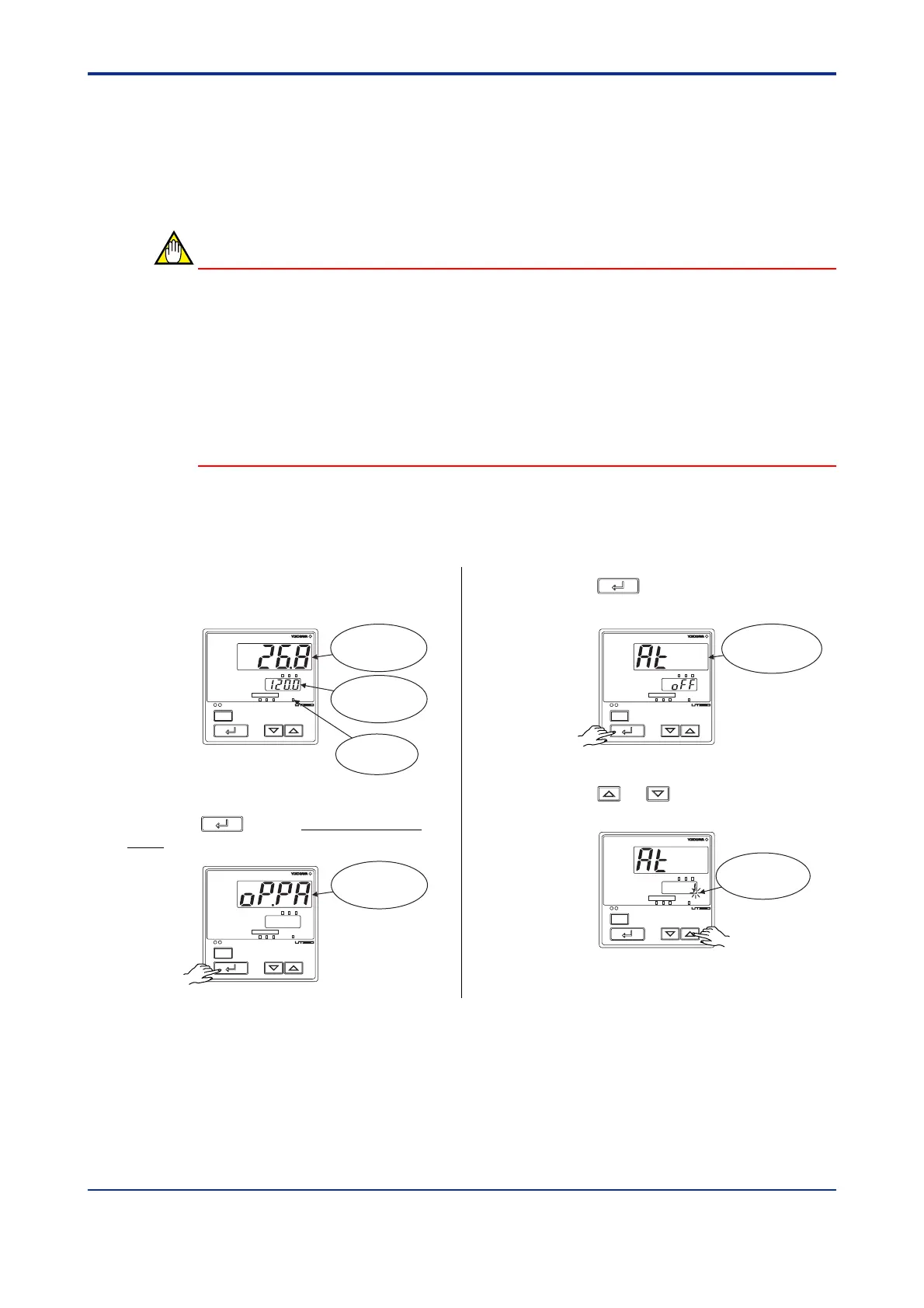

3.3 Performing/Canceling Auto-tuning
Auto-tuning should be carried out after setting a target setpoint (SP). Make sure the control-
ler is in automatic operation mode (AUTO) and running state (RUN) before carrying out
auto-tuning. See “ 3.8 Switching between AUTO and MAN,” to change to AUTO and “ 3.7
Switching between Run and Stop,” to change to Run.
NOTE
When on-off control is being used, auto-tuning cannot be carried out. Moreover, do not
perform auto-tuning when controlling any of the following processes.
• Control processes with quick response such as flow control or pressure control
• Processes where even temporary output on/off results in inconvenience
• Processes where a large output change at control element results in inconvenience
• Processes where variations in PV may exceed an allowable range, adversely affect-
ing product quality
1.
Bring the operating display into view
(display appears at power on).
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
MAN lamp
OFF.
Displays
target setpoint.
Displays PV.
2.
Press the
SET/ENT
key for more than 3 sec-
onds to call up the menu “OP.PA”.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
menu “OP.PA”.
3.
Press the
SET/ENT
key five times to display
the parameter “AT”.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
parameter
“AT”.
4.
Press the or key to display the
required setpoint. Tuning for 1.SP is AT = 1.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Blinks during
change.
To cancel auto-tuning, set AT = OFF.
