YOKOGAWA UT320 User Manual

3-2
<Toc> <3. Operations>
IM 05D01D02-41E 4th Edition: May 31, 2006-00
■ Operating Displays for a Heating/Cooling Controller
● SP Display
The PV input value appears on the PV display.
The target setpoint (1.SP) appears on the Setpoint display.
● Heating/Cooling OUT Display
The PV input value appears on the PV display.
The heating (H) and cooling (C) sides control output values appears on the Setpoint dis-
play.

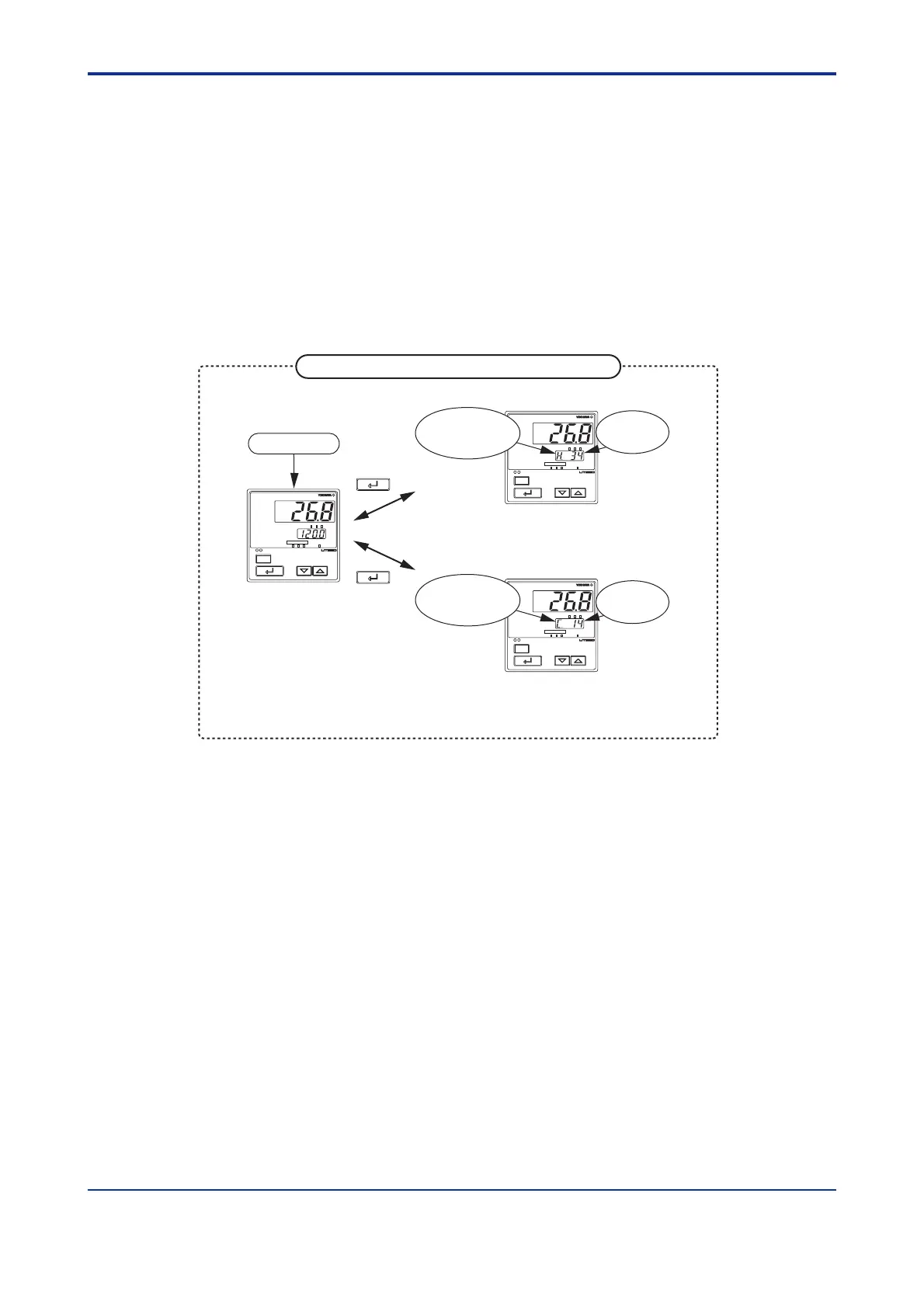

Operating Displays for Heating/Cooling Control
PV
MAN
A/M
SP
AL1 2 3
SP
234
SET/ENT
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
SP display
(allows the target
setpoint to be changed)
Cooling-side OUT display
(allows the control output
value to be changed)
Heating-side OUT display
(allows the control output
value to be changed)
SET/ENT
key
SET/ENT
key
Power-on
Heating-side
output-value
symbol “H”
Cooling-side
output-value
symbol “C”
Cooling-side
output %
Heating-side
output %
