YOKOGAWA WT332E User Manual

5-5
IM WT310E-02EN
1
2
3
4
5
6
7
App
Index
External I/0 (Option)

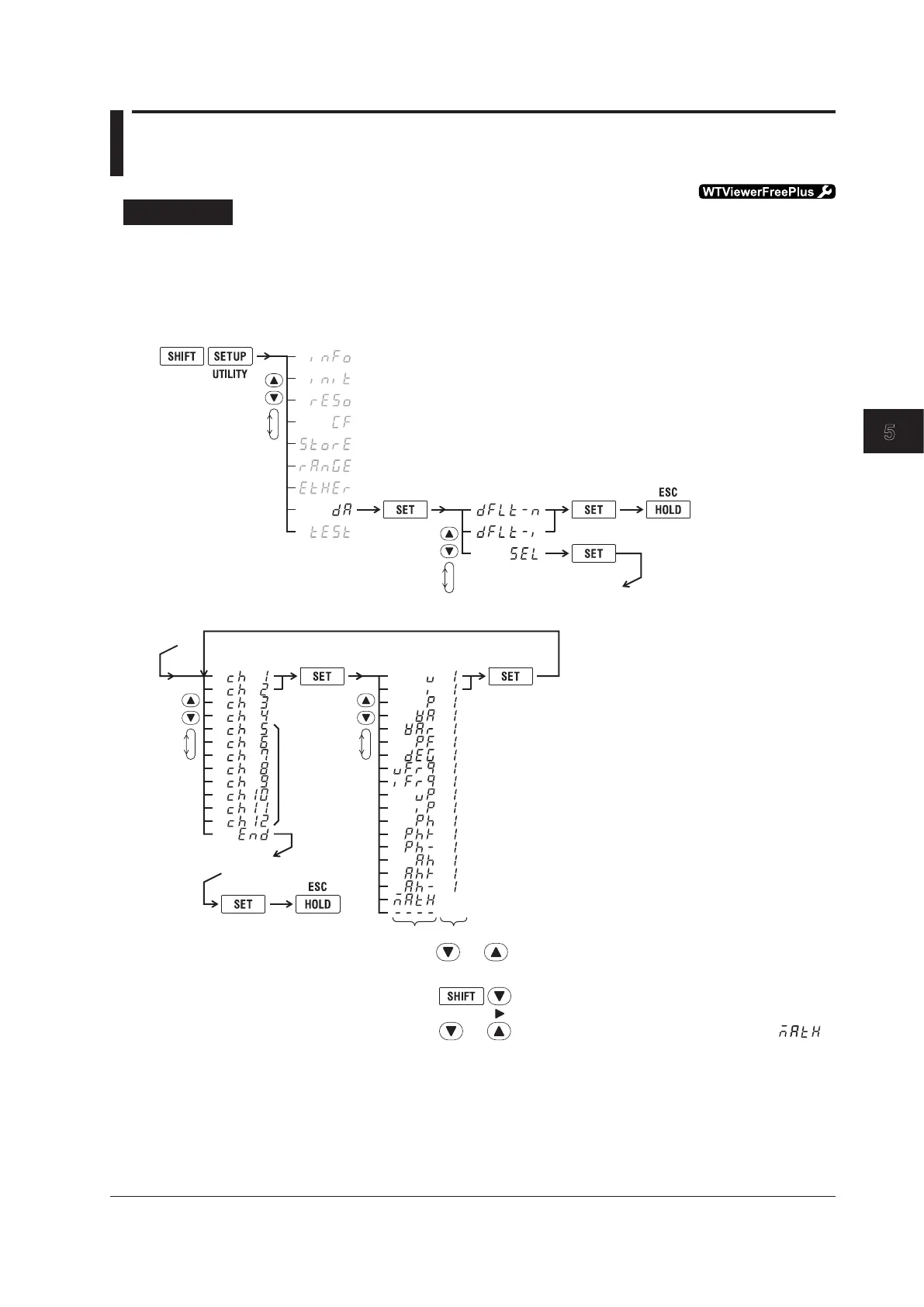

5.3 Producing D/A Output
Procedure
Follow the procedure indicated by the thick lines in the following menu.
Setting the D/A Output Format
Select the output format.
(Display C)
4.
2.
Select the D/A output feature.
(Display B)
1.
3.
5.
Confirm the setting.
Close menu.
(Default setting)
(original
configuration)
6, 12.
Set the output
channel.
(Display B)
7.
Confirm
the setting.
8.
Set the output item.
(Display C)
11.
Confirm
the setting.
Only on the
WT332E/WT333E
A
B
3
8.
9.
10.
Press and to set area A (the output function).
Press to move to area B.
Press and to select an element (you cannot select an element for ).
On the WT332E/WT333E, select the element in the following steps 9 and 10.
1
13.
Confirm
the setting.
Close menu.
2
6.
14.
1 The number of channels varies depending on the specific option that is installed.
• /DA4 option on the WT310E/WT310EH: 4 channels
• /DA12 option on the WT332E/WT333E: 12 channels
2 When you press SET in step 11, the output channel shown in display B changes to the next channel. For
example, ch1 changes to ch2.
3 The numbers (element numbers) that you can select vary depending on the model. For details, see
“Explanation” in this section.
