YOKOGAWA WT332E User Manual

2-18
IM WT310E-02EN
Explanation

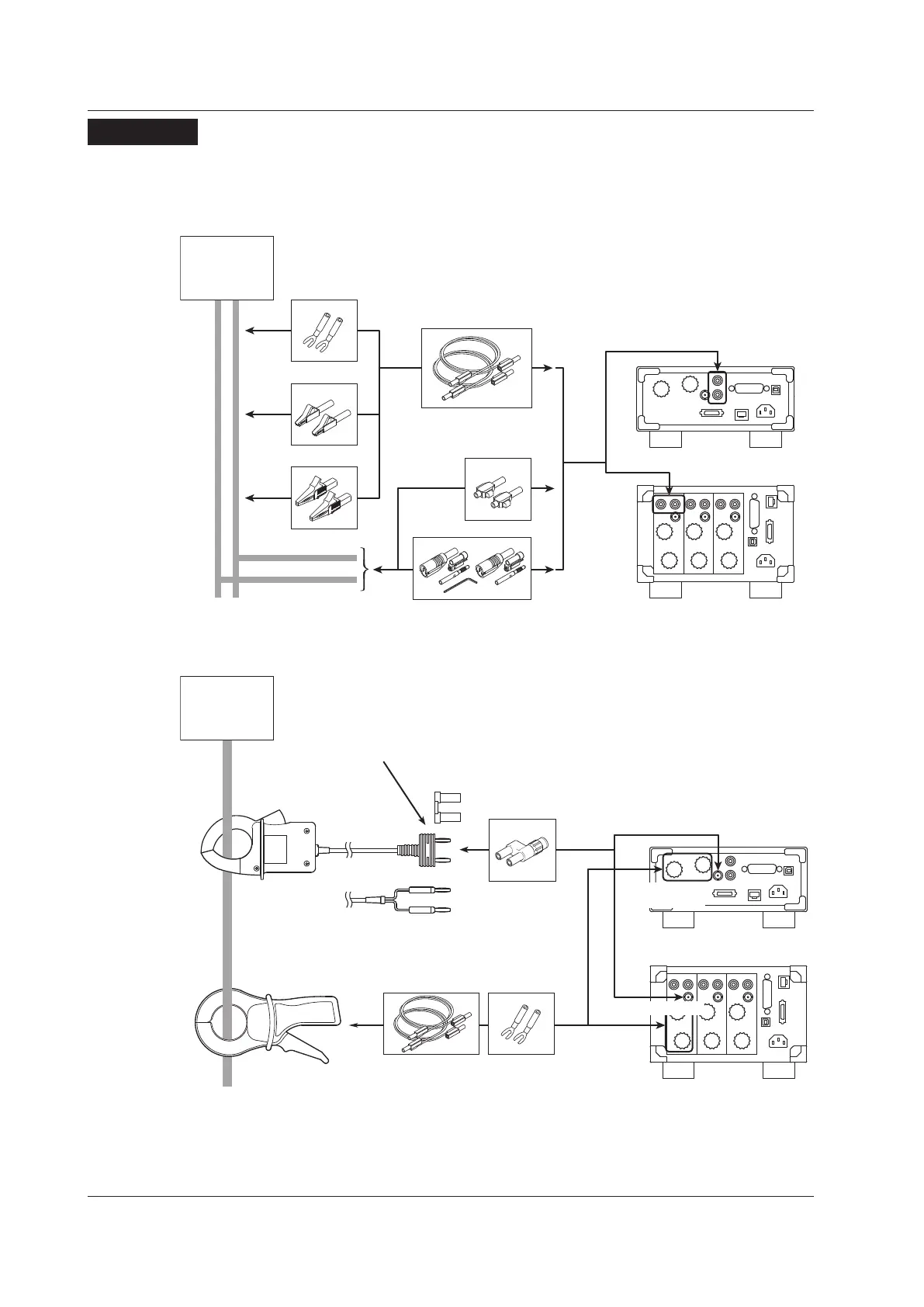

Wire the adapters that come with this instrument or the adapters and various sensors that are sold
separately as shown below:
Wiring to a Voltage Input Terminal
Voltage under
measurement
758921
758922
758917
758923
758931
758929
WT310E/WT310EH
Voltage input terminals
WT332E/WT333E
Voltage input terminals
Wiring to a Current Input Terminal
Use the clamp-on probes (sold separately) as shown below.
96030
96031
96001
(voltage output type)
751552
(current output type)
758917 758921
758924
Current under
measurement
Connecting a clamp-on probe
WT310E/WT310EH
WT332E/WT333E
EXT input
terminal
Current input
terminals
Current input
terminals
EXT input terminal
96001 terminal
When you are connecting to the 96030, 96031,
or 758924, remove the terminal sleeves.
Sleeves
* The current input terminal and EXT input terminal cannot be wired (used) simultaneously.
2.6 Assembling the Adapters for the Voltage Input Terminals
