York PCE4 Series User Manual

5126744-UIM-D-1015
Johnson Controls Unitary Products 3

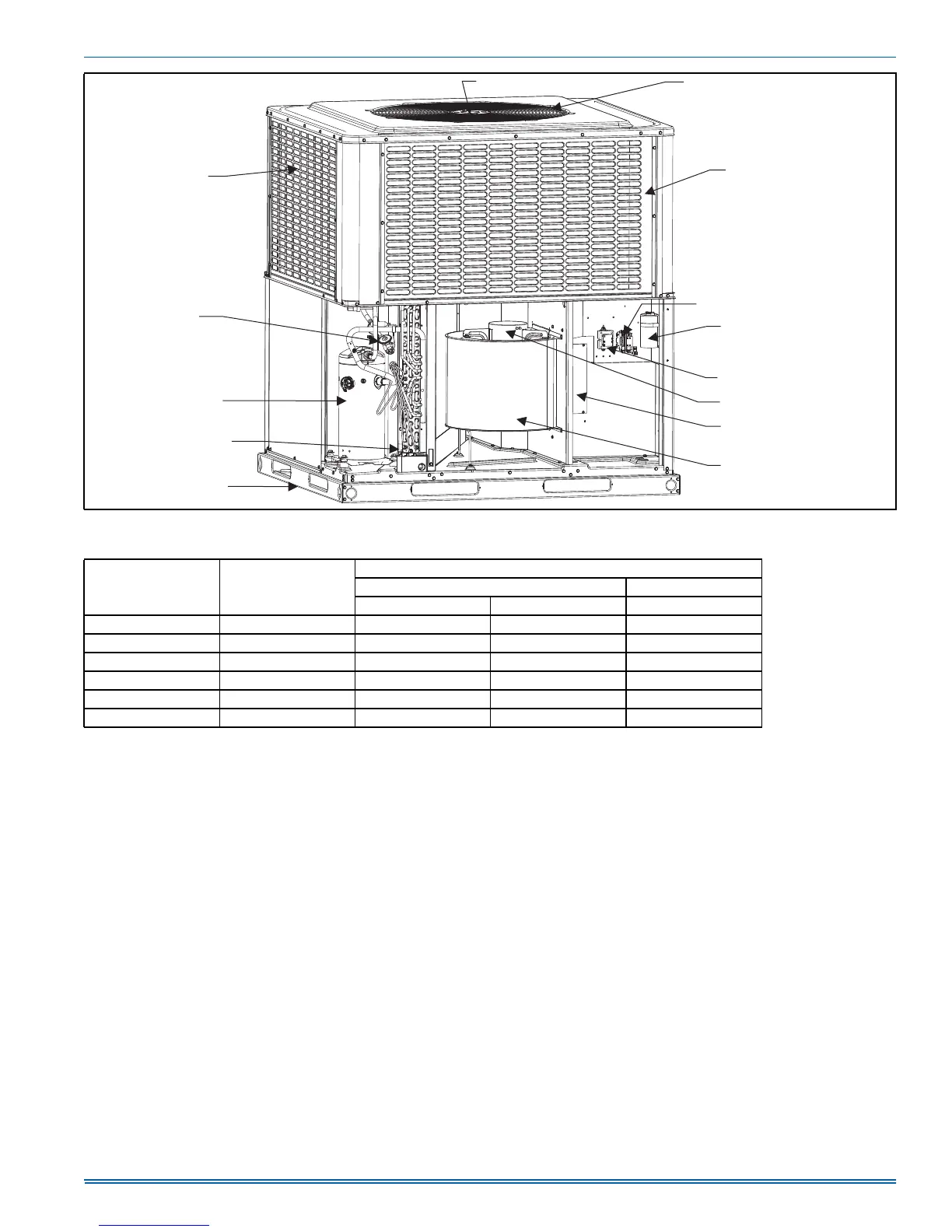

FIGURE 1: Component Location
OUTDOOR FAN MOTOR
OUTDOOR FAN
COIL GUARD PANEL
OUTDOOR COIL
(Behind Panel)
CONTACTOR
TRANSFORMER
CAPACITOR
BLOWER MOTOR
TXV
INDOOR COIL
INDOOR BLOWER
COMPRESSOR
REMOVABLE
BASE RAILS
A0411-001
OPTIONAL
ELECTRIC HEAT KIT
Table 1: Unit Limitations
Model Unit Voltage
Unit Limitations
Applied Voltage Outdoor DB Temp
Min Max Max (°F)
A24 208/230-1-60 187 252 125
A30 208/230-1-60 187 252 125
A36 208/230-1-60 187 252 125
A42 208/230-1-60 187 252 125
B48 208/230-1-60 187 252 125
B60 208/230-1-60 187 252 125

York PCE4 Series Specifications

General

Brand	York
Model	PCE4 Series
Category	Air Conditioner
Language	English
