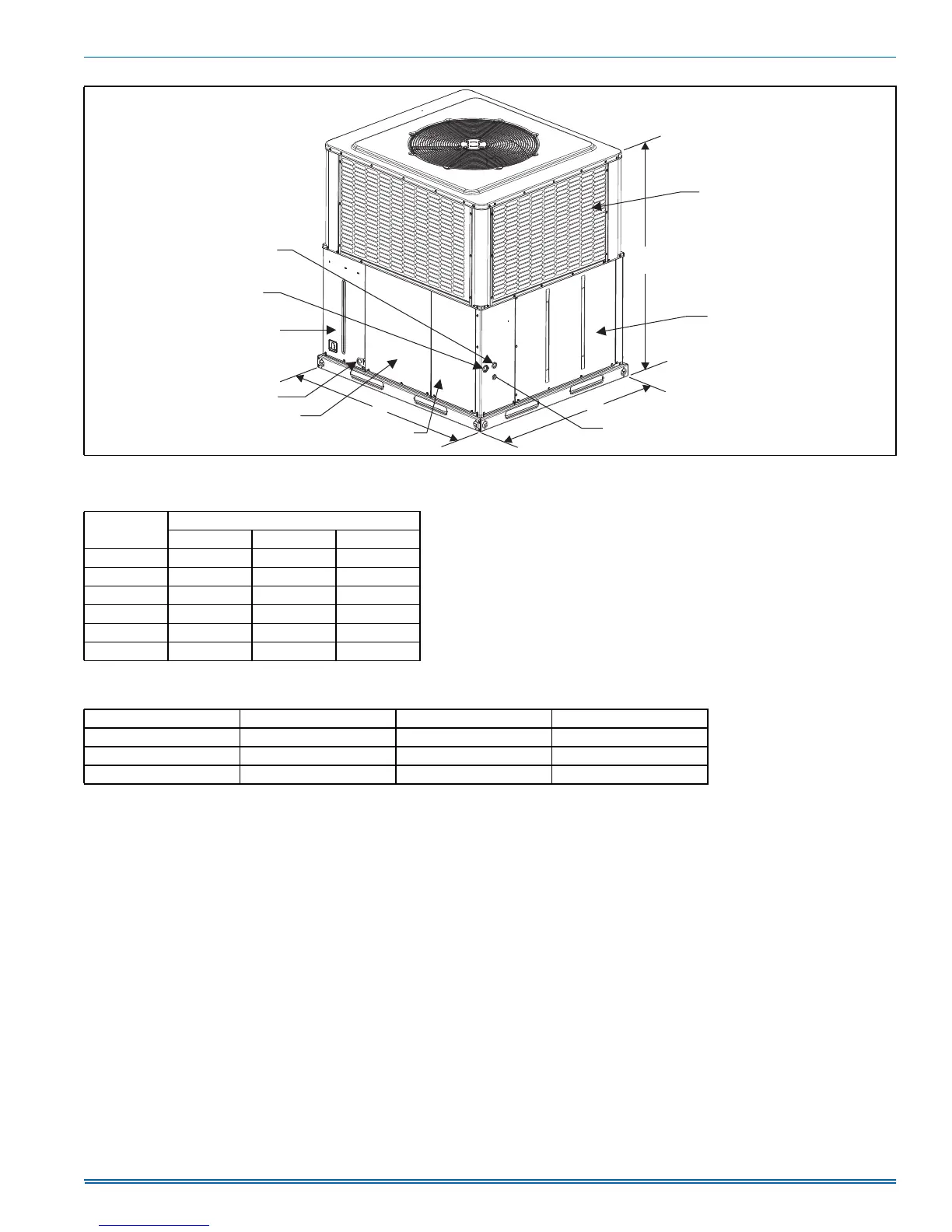

FIGURE 3: Unit Dimensions
Table 3: Unit Dimensions
Model
Dimensions
ABC
A24 51-1/4 35-3/4 47
A30 51-1/4 35-3/4 49
A36 51-1/4 35-3/4 49
A42 51-1/4 35-3/4 49
B48 51-1/4 45-3/4 53
B60 51-1/4 45-3/4 55
HIGH VOLTAGE
CONNECTION 7/8”
HIGH VOLTAGE
CONNECTION 1-3/32”
COMPRESSOR
ACCESS PANEL
CONDENSATE
DRAIN
BLOWER
ACCESS
PANEL
CONTROL ACCESS
PANEL
LOW VOLTAGE CONNECTION
HEAT SECTION
ACCESS PANEL
B
A
C
A0379-001
COIL GUARD
Table 4: Unit Clearances
1,2
Direction Distance (in.) Direction Distance (in.)
Top
3
36 Power Entry (Right Side) 36
Side Opposite Ducts 36 Left Side 24
Duct Panel 0 Bottom
4
1
1. A 1" clearance must be provided between any combustible material and the supply air duct work.
2. The products of combustion must not be allowed to accumulate within a confined space and recirculate.
3. Units must be installed outdoors. Overhanging structures or shrubs must not obstruct condenser air discharge outlet.
4. Units may be installed on combustible materials made from wood or class A, B or C roof covering materials only if factory
base rails are left in place as shipped.
