HISTORY DETAILS SCREEN
Overview
This screen allows the user to see an on-screen printout
of all the system parameters at the time of the selected
shutdown. Not all screens are shown above. The num-
ber of screens required to display all of the data var-
ies according to the type of motor starter and options
applied.
Display Only
History Printout
This is the on-screen printout of the system parameters.
Programmable
Page Up
Access Level Required: VIEW
Scroll up in the displayed data (if applicable).
Page Down
Access Level Required: VIEW
Scroll down in the displayed data (if applicable).
Print History
Access Level Required: VIEW
This generates a report listing the status of the chiller
parameters at the time of the selected shutdown.
Navigation
Home
Access Level Required: VIEW
Causes an instant return to the HOME screen.
History
Access Level Required: VIEW
Causes a return to the HISTORY screen.

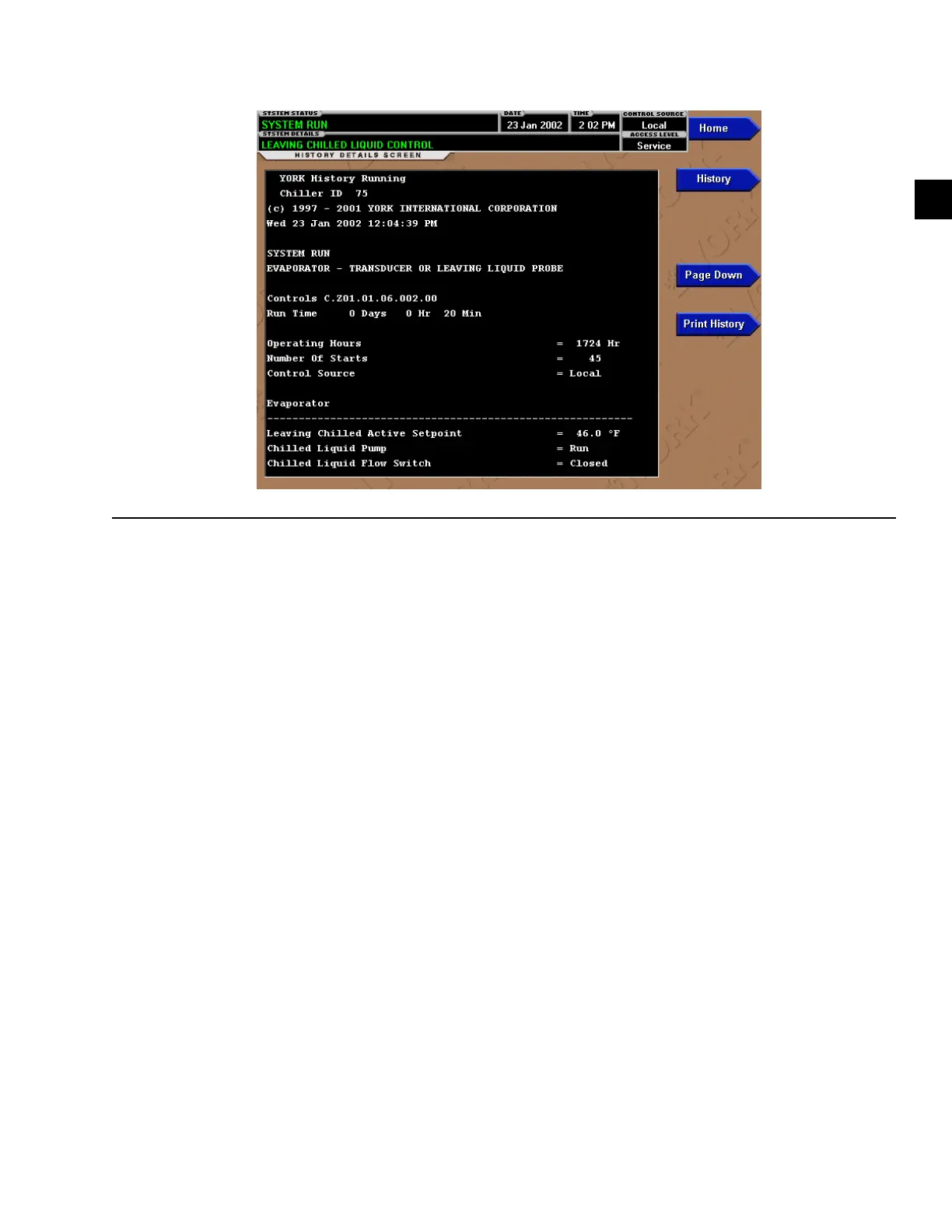

FIGURE 25 - HISTORY DETAILS SCREEN
