York YS - Page 34

34 JOHNSON CONTROLS
Dimensions – Std

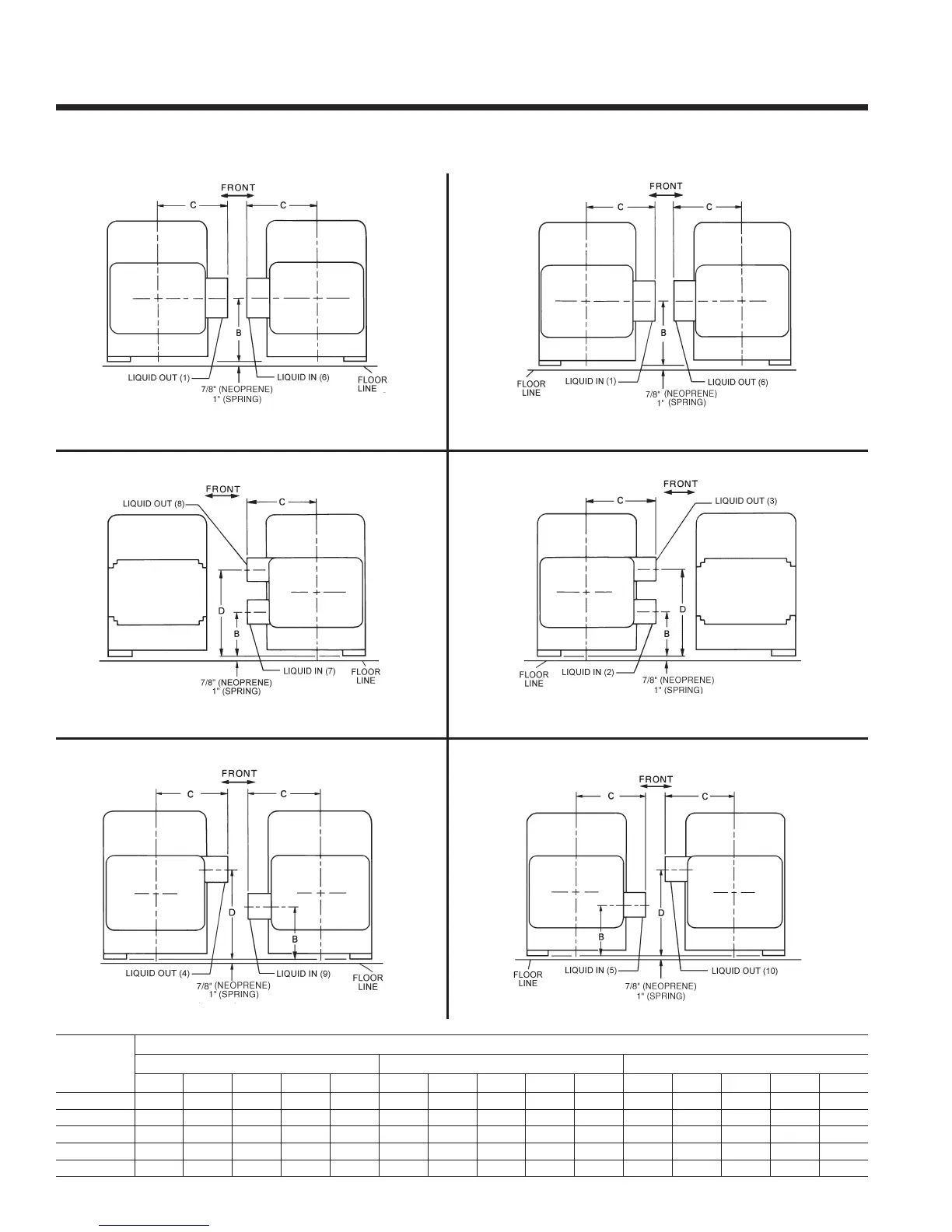

EVAPORATOR NOZZLE ARRANGEMENTS – MARINE WATER BOXES
R-22 & R-134a UNITS
1-PASS
1-PASS
2-PASS
2-PASS
3-PASS 3-PASS
MOTOR END COMPR. END MOTOR END COMPR. END
MOTOR END MOTOR ENDCOMPR. END COMPR. END
MOTOR END MOTOR END
COMPR. END COMPR. END
CooLEr
sIZE
dIMEnsIons (In.)
1-Pass 2-Pass 3-Pass
a B C d E a B C d E a B C d E
B
15 1/2 15 1/4 19 — 7 3/4 13 1/2 9 1/2 19 21 6 3/4 13 1/2 11 19 19 1/2 6 3/4
C
17 1/2 16 3/4 20 3/4 — 8 3/4 13 1/2 11 1/4 20 3/4 22 1/4 6 3/4 13 1/2 13 1/4 20 3/4 22 7/8 6 3/4
d
20 19 1/4 23 3/4 — 10 15 1/2 14 1/2 23 3/4 29 1/2 7 3/4 15 1/2 13 3/4 23 3/4 25 1/4 7 3/4
E
20 19 3/8 24 5/8 — 10 16 15 1/8 24 5/8 29 1/8 8 16 13 7/8 24 3/8 25 3/8 8
F
21 22 3/8 28 1/4 — 10 1/2 19 16 1/4 28 1/4 33 9 1/2 17 15 1/4 28 1/4 29 1/4 8 1/2
