York YS - Page 35

35JOHNSON CONTROLS
FORM 160.80-EG1 (808)
1-PASS & 3-PASS EVAPORATORS
2-PASS EVAPORATORS
* Applies to compressor end if connections are on motor end.
** Applies to motor end if connections are on motor end.
EVAPORATORS NOZZLE SIZES
WEIGHTS
(To be added to Standard Unit Weights on pages 36-37)
MOTOR END
MOTOR END
COMPR. END
COMPR. END

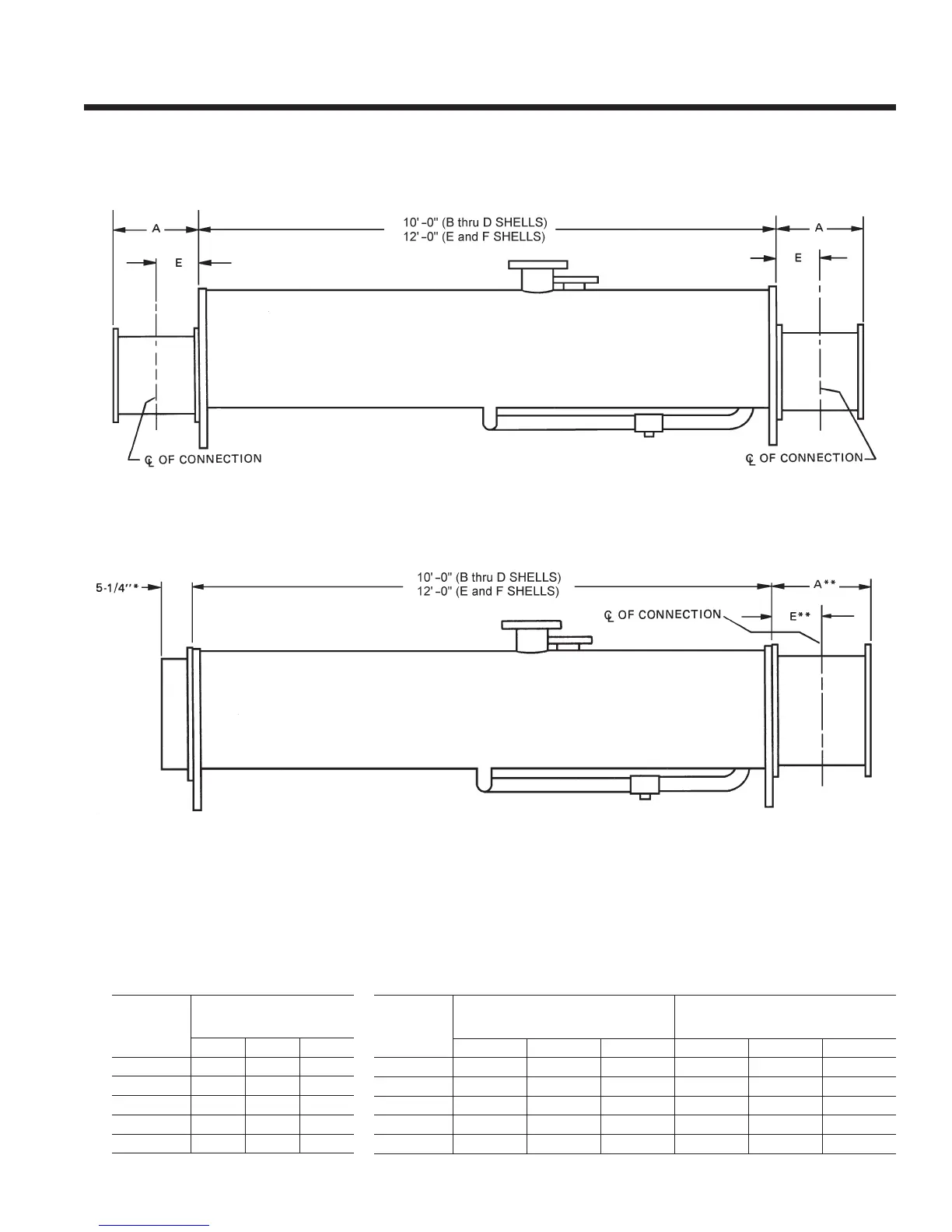

EVAPORATOR NOZZLE ARRANGEMENTS – MARINE WATER BOXES
R-22 & R-134a UNITS
EVaPorator
CodE
noZZLE sIZE (In.)
no. oF PassEs
1 2 3
B
8 6 4
C
10 6 6
d
12 8 6
E
12 8 6
F
12 10 8
EVaPorator
CodE
shIPPInG WEIGht
InCrEasE – LBs
oPEratInG WEIGht
InCrEasE – LBs
1-Pass 2-Pass 3-Pass 1-Pass 2-Pass 3-Pass
B
554 295 562 788 391 755
C
810 417 668 1207 592 955
d
872 439 768 1316 600 1090
E
1040 607 996 1674 924 1535
F
1280 875 1130 1900 1025 1685
