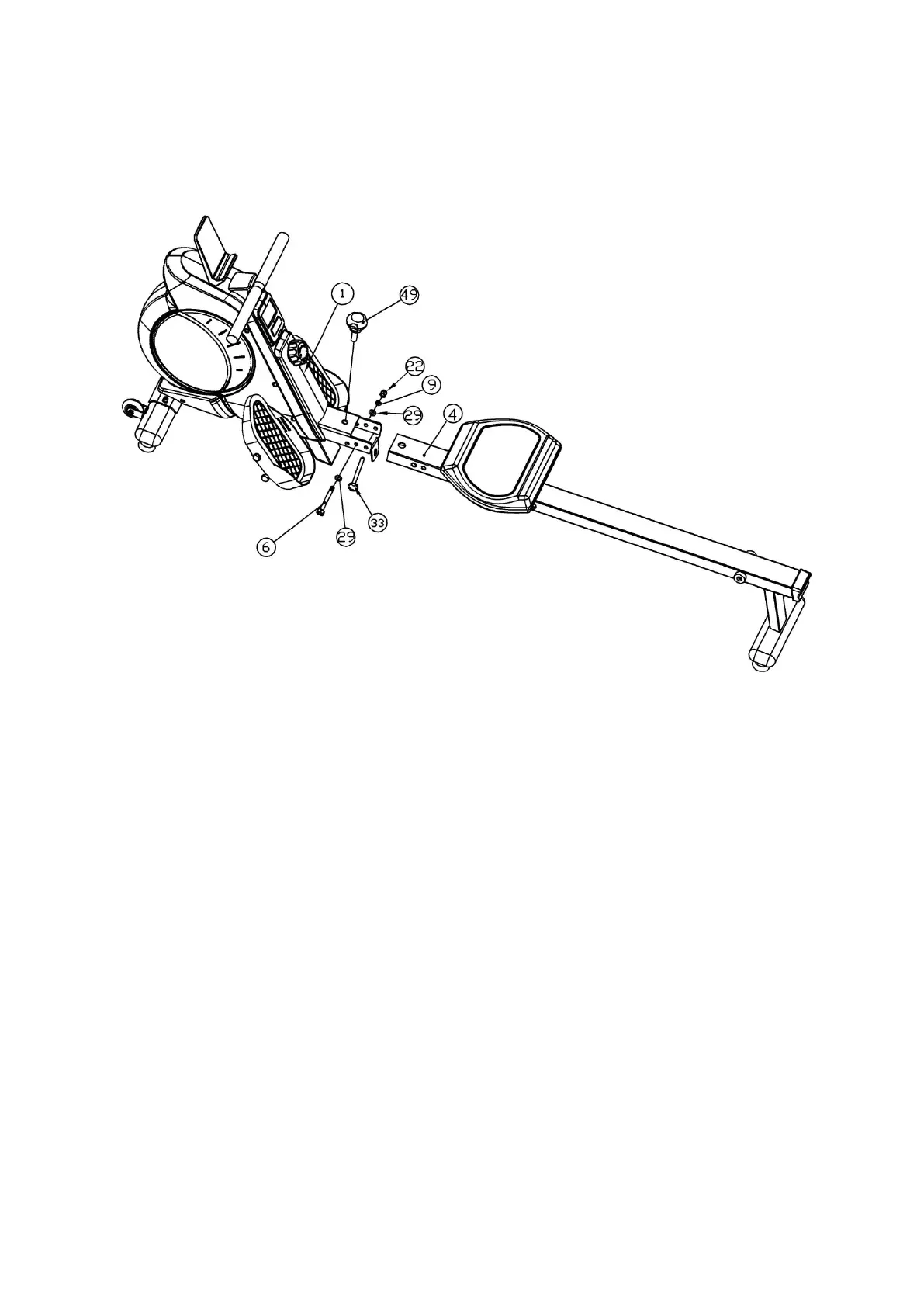

STEP 7
Attach slide rail (#4) to the main frame (#1) with a knob M16 (#49), a hex screw M10*105
(#6), two flat washers 10*20 (#29), a spring washer 10 (#9), a cover type union nut M10
(#22) and a single head bolt (#33).
CARE AND MAINTENANCE
1. Clean daily after use.
2. Use cloth or non-abrasive scouring pad with soap & water or any glass cleaner.
3. Do not use Mineral Acids, bleach, coarse abrasives.
4. Lubricating every 3 days.
5. Lubricating with motor oil or 3-in-1 oil.
6. If the handle cannot return to the original position, need to open the shell to adjust the
ribbon.
7. Correct use of rowing machine to avoid failure.
