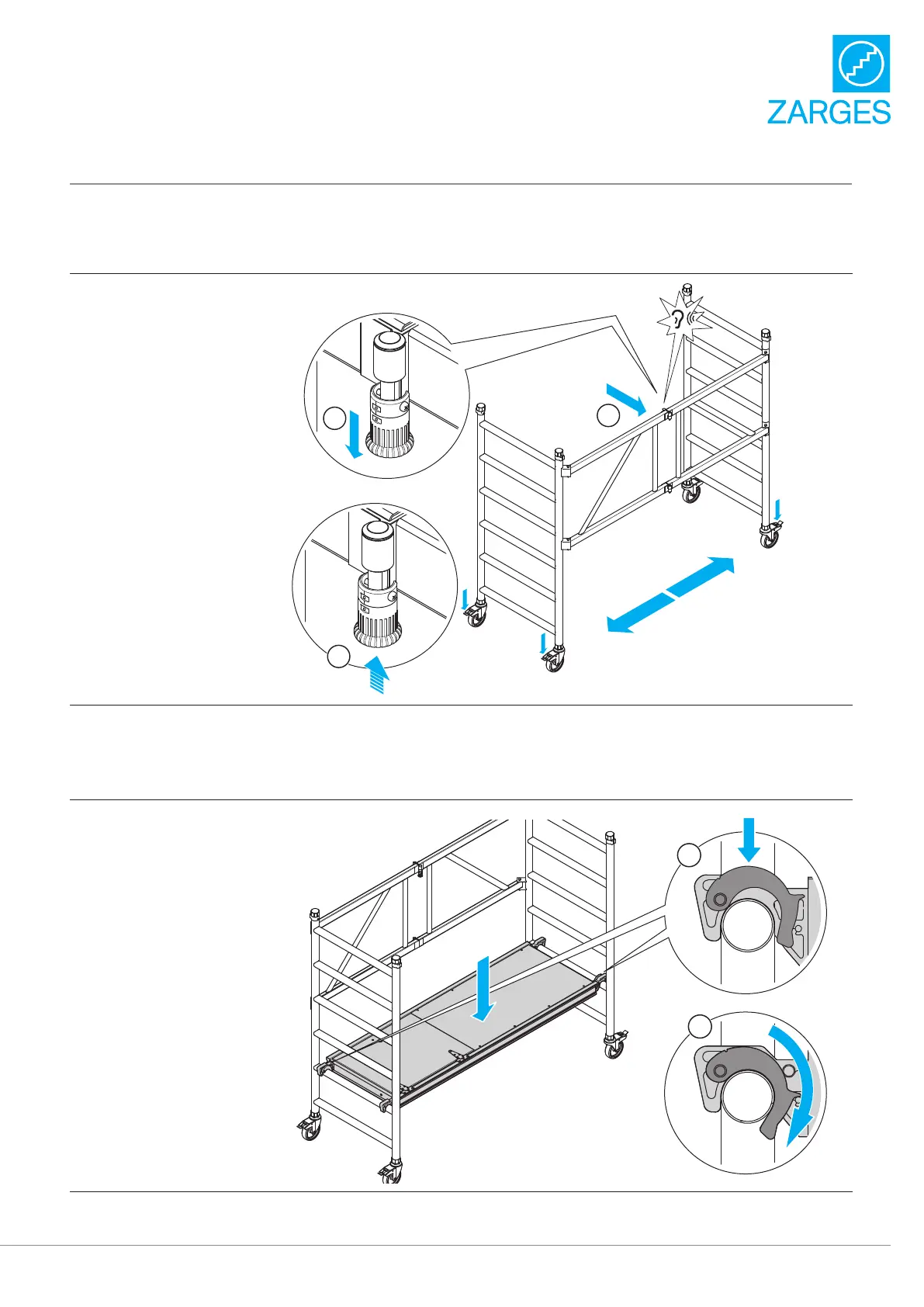

3 General assembly instructions for PaxTower S-PLUS 1T
3.1 Assembling the base unit
1. Set up the folding
frame unit.
2. Release the locking
mechanism and pull
the folding frame unit
apart until you hear
the locking mechanism
click into place.
3. Check that locking
mechanism is secure.
4. Engage the brakes on
the castors.
1.
2.
3.
3.2 Assembling scaffold towers of size 1
1. Assemble the base unit
(see “Assembling the
base unit” on page39).
2. Remove the end caps on
the tubes where neces-
sary.
3. Place the platform
centrally on the sec-
ond rungs and lock
theclaws in place on
theopposite side.
1.
2.
