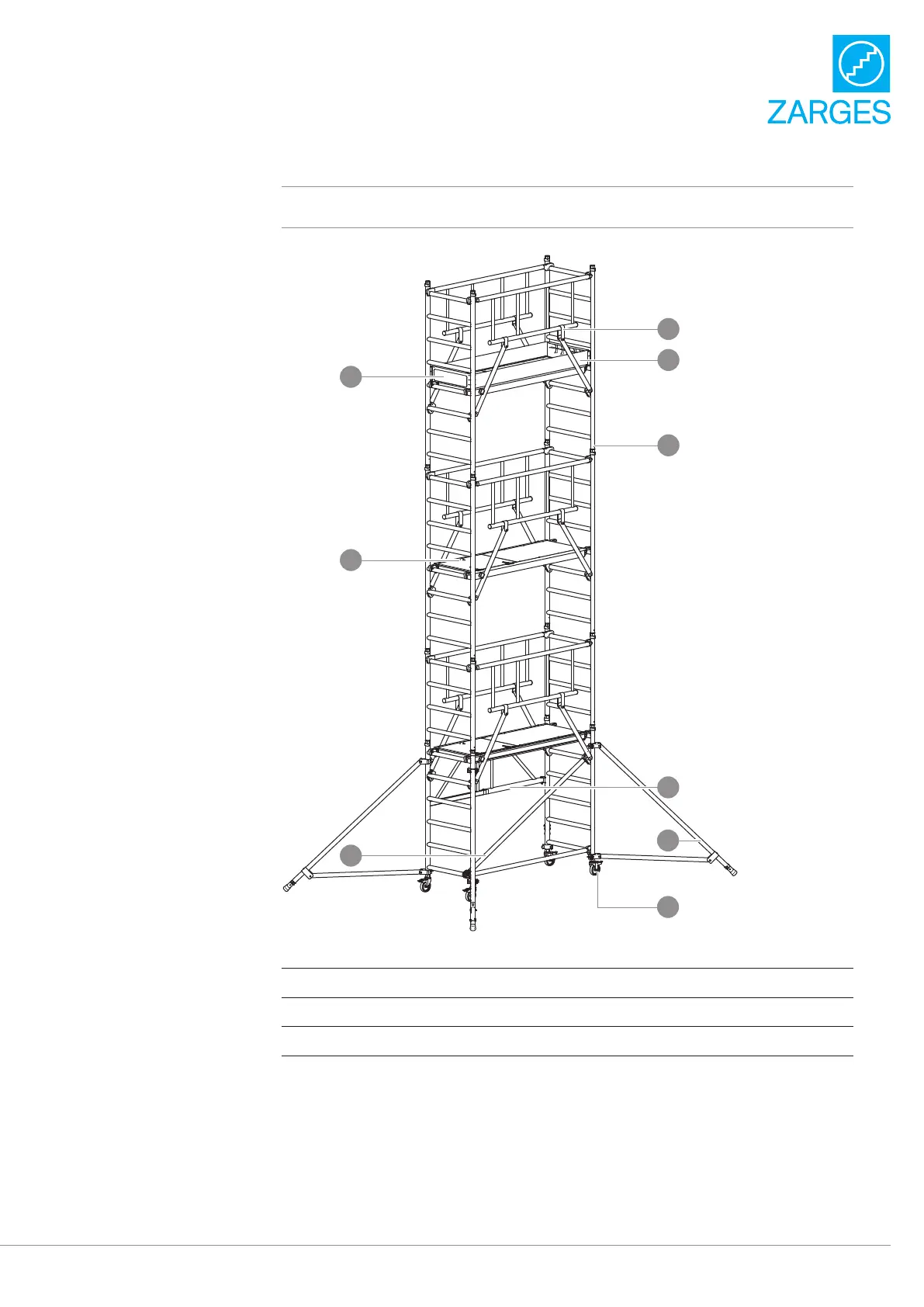

3.12 Assembly diagram
The layout is shown for illustration purposes only. The actual structure of a scaf-
fold tower may differ from the one shown in the diagram.
1
3
2
4
5
6
7
9
8
1 Advanced guardrail 2 Side toeboard
3 Push-on end frame 4 Folding unit
5 Triangular stabiliser 6 Swivel castor
7 Diagonal brace 8 Platform
9 End toeboard
