The procedure for connecting the LOAD input to the inverter terminal board is identical to that for
connecting the GRID port shown in section 4.3, with the only difference being that the phase, neutral and
ground cables must be connected to the port marked LOAD.
For more information, please consult the specific procedure available on the website www.zcsazzurro.com.

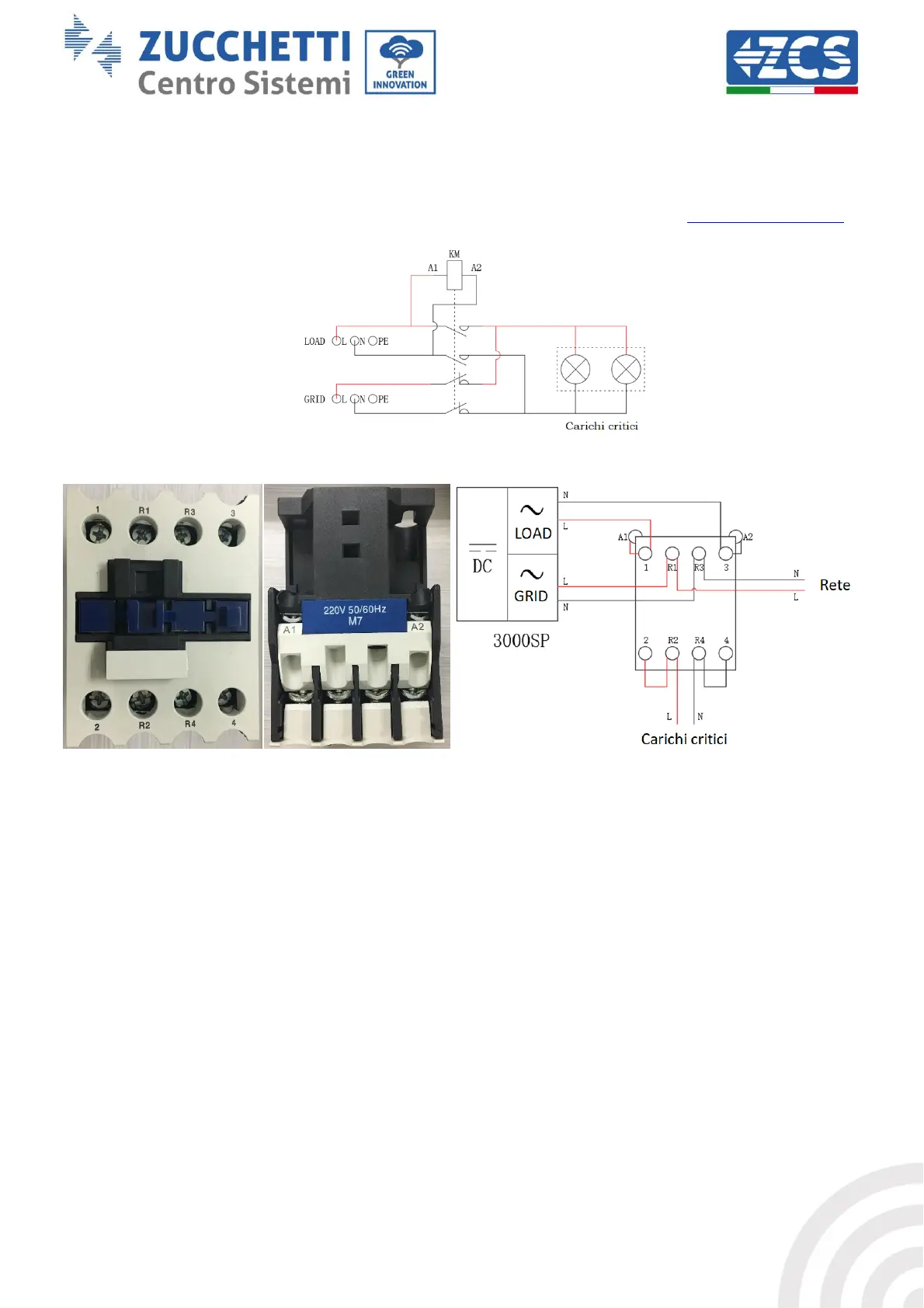

Figure 17 – Diagram of the AC power contactor with 2NC + 2NA double-switchover
Figure 18 – Front and top view of the power contactor; connecting the contactor inside the system
