ZE500 Quick Reference Guide
Load Ribbon and Media
12
P1047597-001 03/08/2012

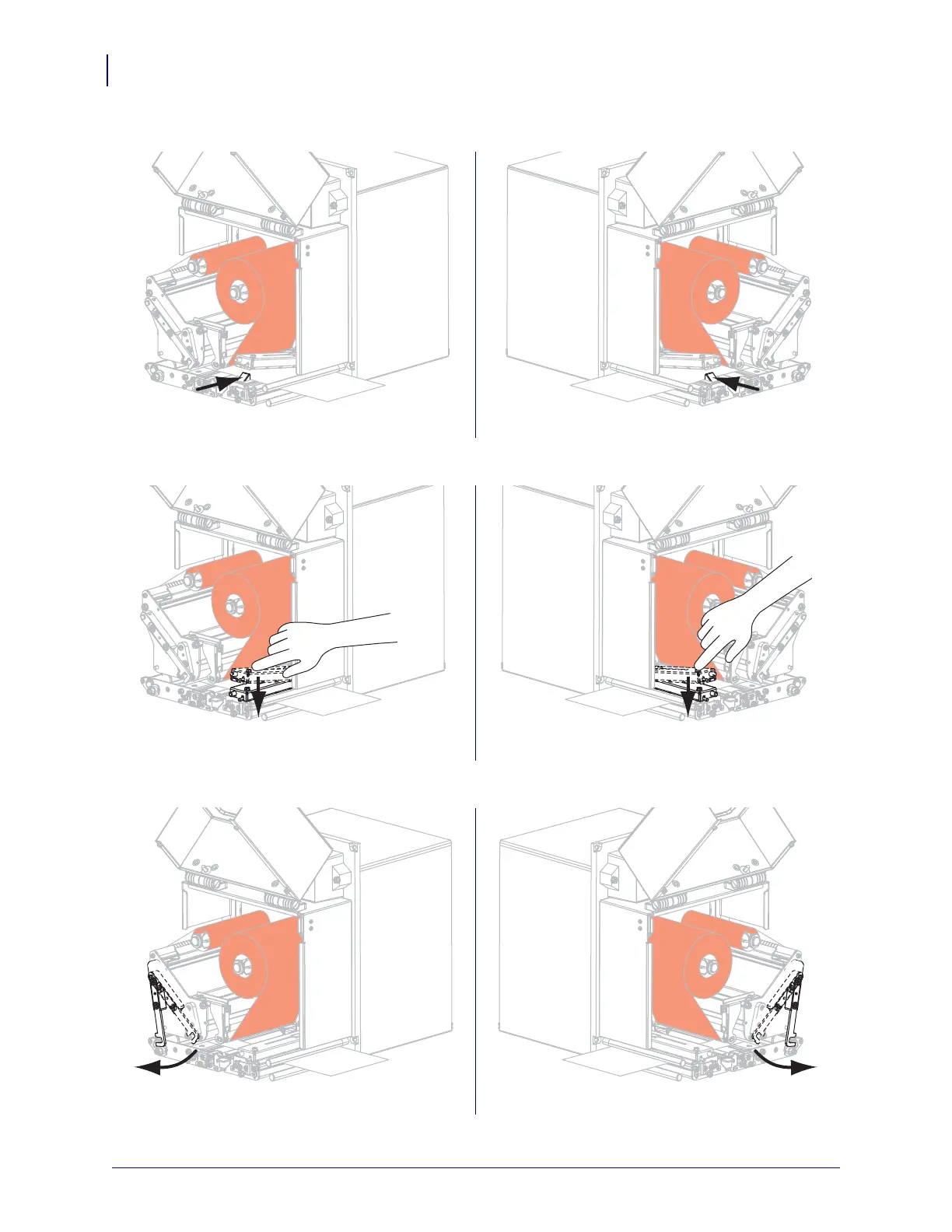

12. Slide in the media guide until it just touches the edge of the media.
13. Press down on the pinch roller assembly until it locks closed.
14. Rotate the printhead-release latch to the closed position.
LH RH
LH RH
LH RH
