11
ZE500 Quick Reference Guide
Load Ribbon and Media
03/08/2012 P1047597-001

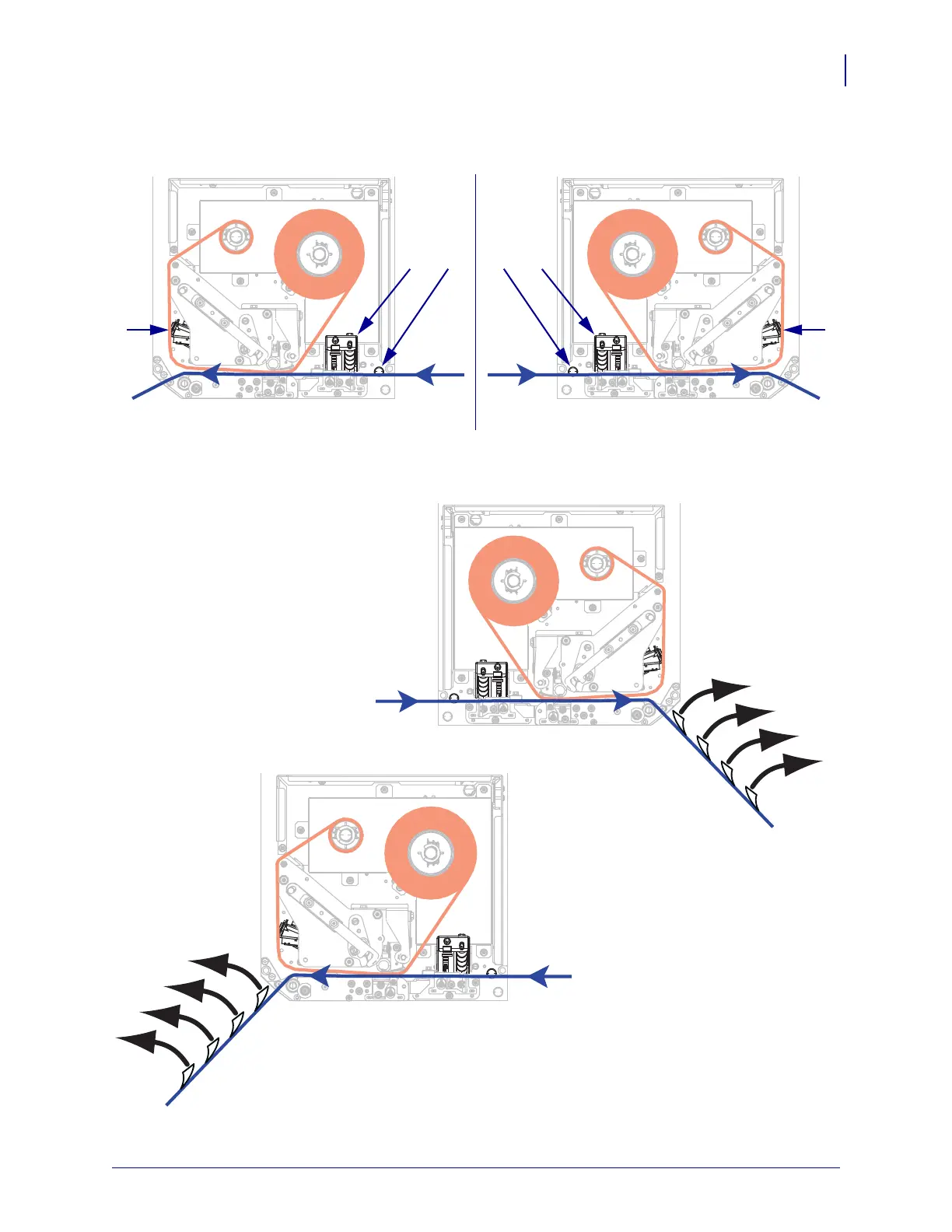

10. Thread the media under the upper guide post (1), below the pinch roller assembly (2), and
under the printhead assembly
(3).
11. Extend approximately 30 in. (75 cm) of media past the peel bar. Remove and discard the
labels from the liner on this exposed media.
To Next Page
