ZE500 Quick Reference Guide
Load Ribbon and Media
10
P1047597-001 03/08/2012
Loading Media
7. Load media on the media supply reel of the applicator (refer to the applicator’s
documentation for more information).

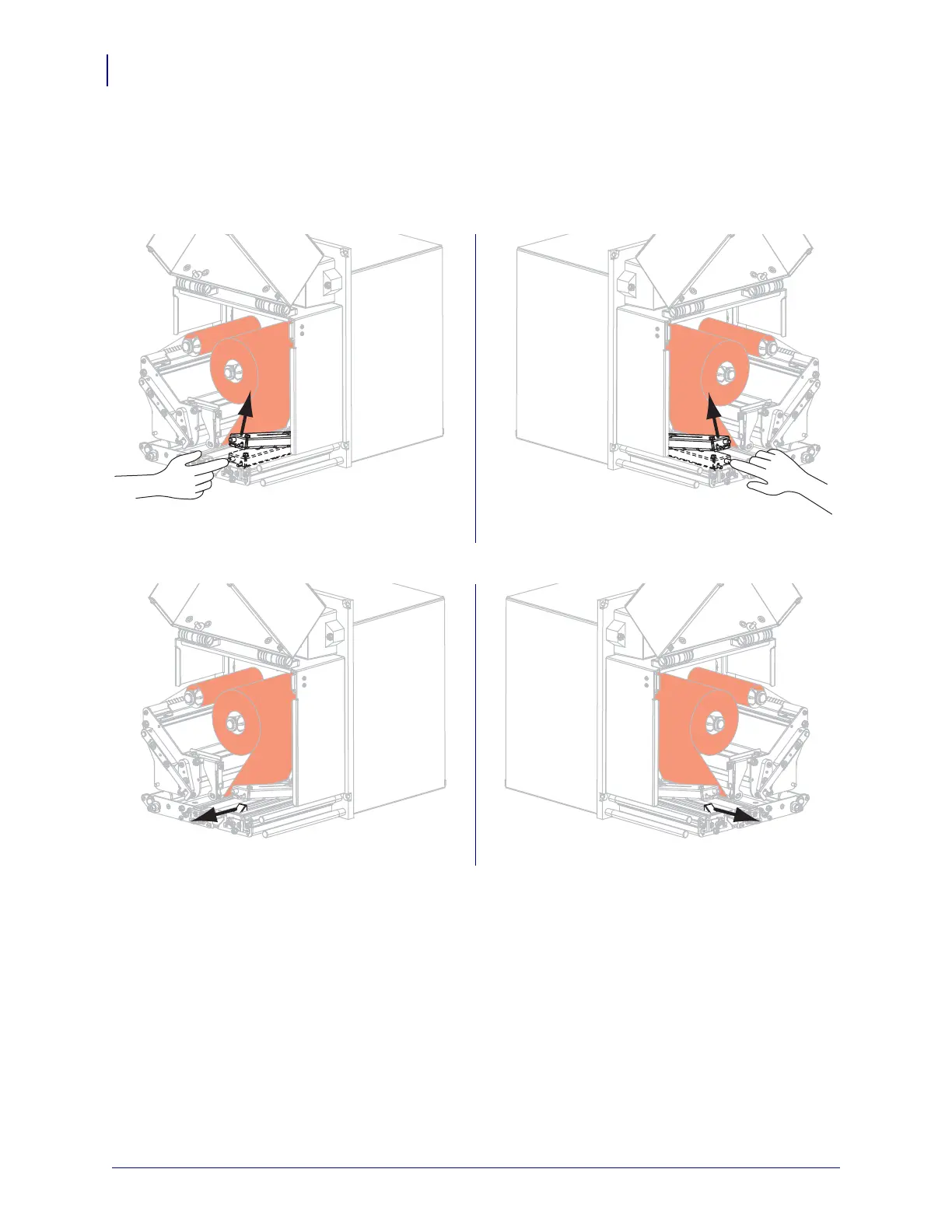

8. Press the release button on the pinch roller assembly. Allow the assembly to pivot upward.
9. Slide the media guide all the way out.
LH RH
LH RH
