Configuration
Control Panel Parameters
56
P1016807-001 Rev. A ZM400 User Guide for UPS 2/26/10
Set Media Type
This parameter tells the printer the type of media that you are using (see
Types of Media on page 31 for more information). Selecting continuous
media requires that you include a label length instruction in your label
format (
^LLxxxx if you are using ZPL or ZPL II).
When non-continuous media is selected, the printer feeds media to
calculate label length (the distance between two recognized registration
points of the inter-label gap, webbing, or alignment notch or hole).
Default Value: GAP/NOTCH
Selections: GAP/NOTCH, MARK, CONTINUOUS
To change the value shown:
1. Press SELECT to select the parameter.
2. Press
PLUS (+) or MINUS (-) to toggle between the options.
3. Press SELECT to accept any changes and deselect the parameter.
Set Print Width
This parameter specifies the printable area across the width of the label.
Default Value: 832
Range: 2 to 832 dots
Note • Setting the width too narrow can result in portions of a label
format not being printed on the media. Setting the width too wide
wastes formatting memory and can cause printing off of the label
and on the platen roller. This setting can affect the horizontal
position of the label format if the image was inverted using the
^POI ZPL II command.
To change the value shown:
1. Press SELECT to select the parameter.
2. Press
PLUS (+) or MINUS (-) to change the value shown.
3. Press SELECT to accept any changes and deselect the parameter.

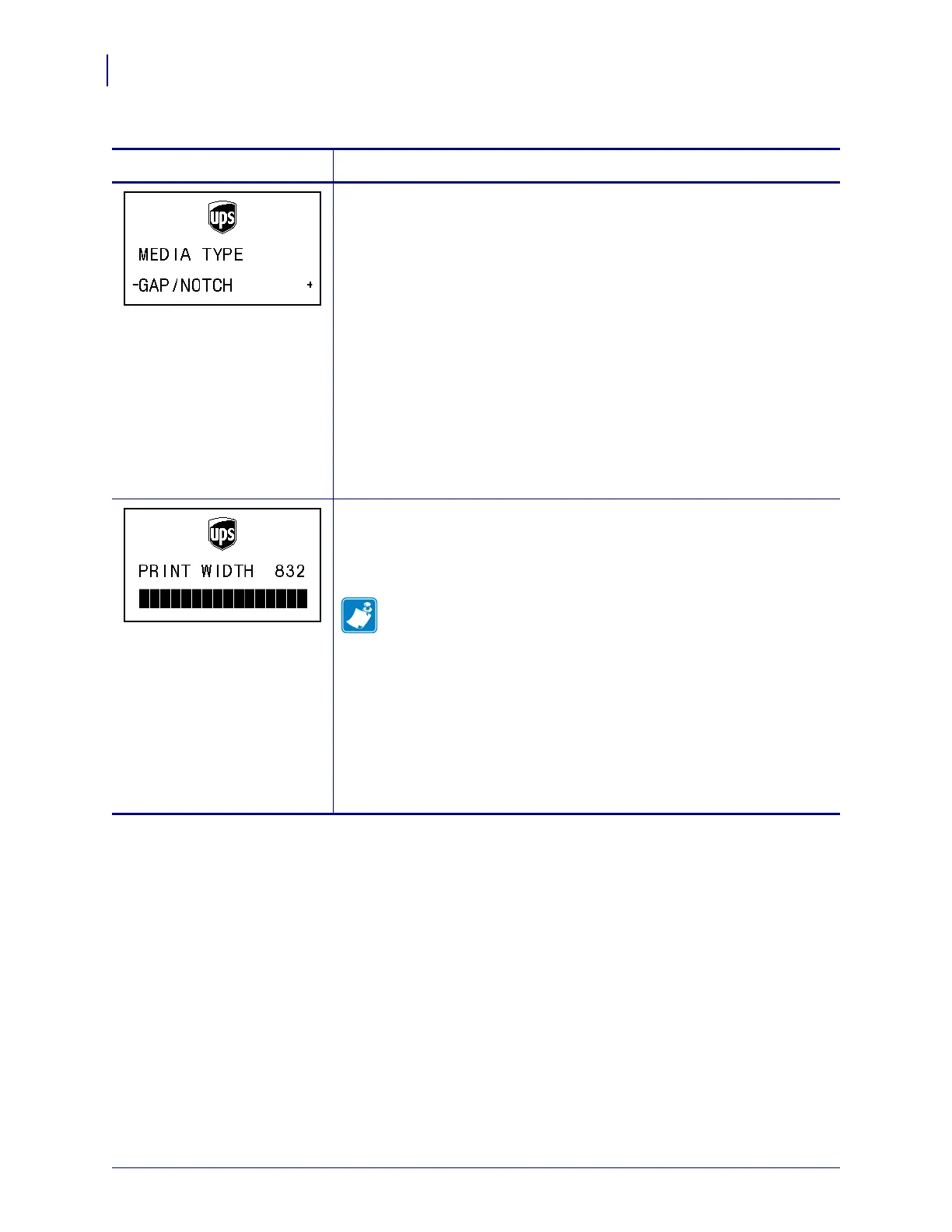

Table 11 • Printer Parameters (Page 3 of 20)
Parameter
Action/Explanation
