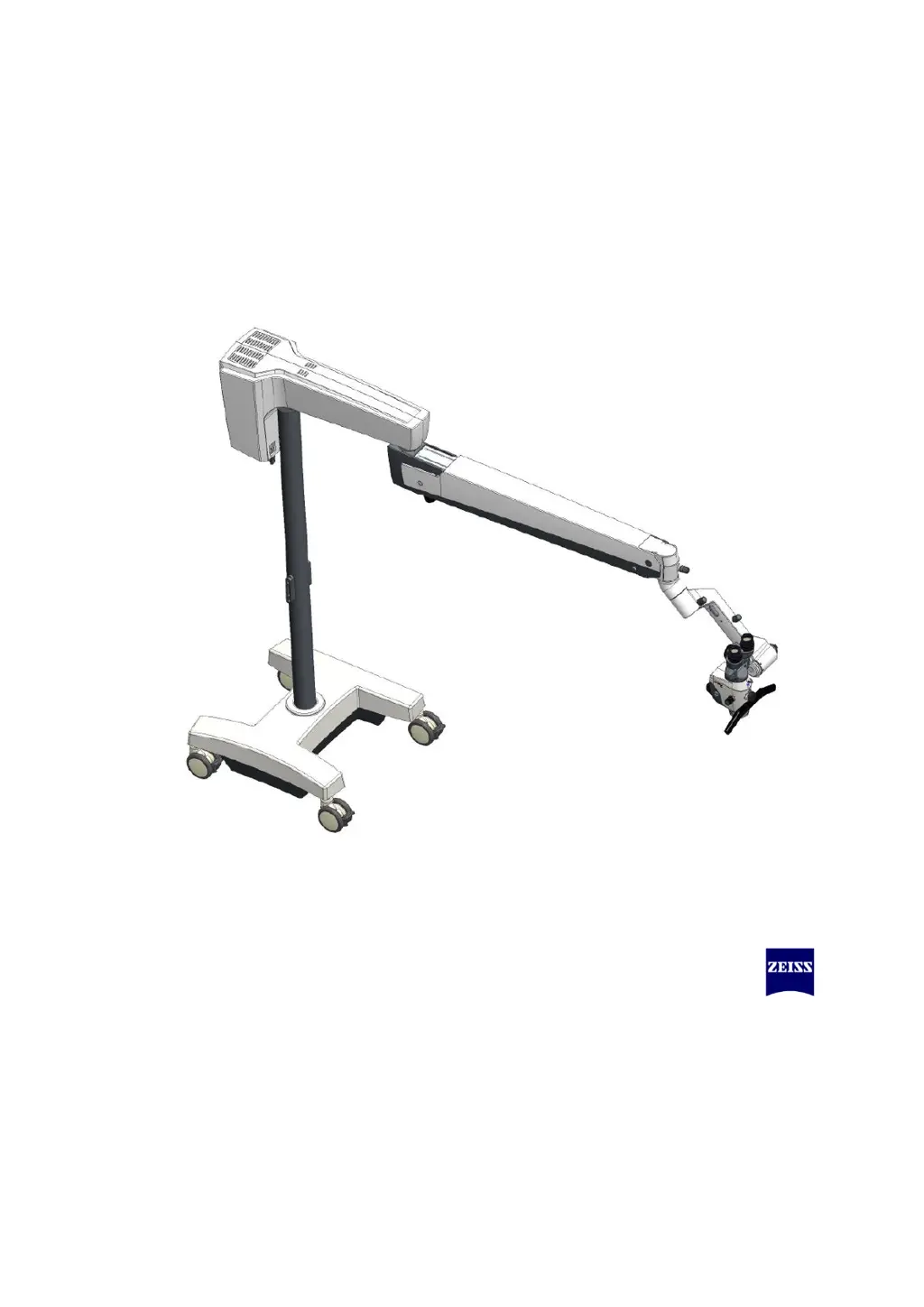

Zeiss EXTARO 300 - User Manual

Other manuals for Zeiss EXTARO 300

Service Manual168 pages

Quick Guide4 pages

Questions and Answers

C
Chelsey WhiteAug 19, 2025
What to do if Zeiss Medical Equipment has no function at all?
- M
  Mr. Jonathan ReidAug 19, 2025
  If your Zeiss Medical Equipment isn't functioning, check these potential causes: Ensure the power cord is properly plugged in, the power switch is turned on, and the automatic circuit breaker in the power switch hasn't tripped (if so, press the power switch). Also, verify that the suspension system is not switched off via the inclination switch by moving it down from its parking position. If these steps don't resolve the issue, consider replacing the power cord or contacting an in-house electrician in case of a power failure.
N
Nicole WalkerAug 21, 2025
Why does the LED light source on my Zeiss EXTARO 300 Medical Equipment go off and on during operation?
- N
  Nicole SmithAug 21, 2025
  The LED light source in your Zeiss Medical Equipment might be going off and on due to defective stand electronics. In this case, illuminate the surgical area with an OR luminaire and contact Service. Another possible cause is covered or dirty ventilation openings. Ensure the ventilation openings are clear; clean them if necessary.
O
omillerAug 25, 2025
What to do if the LED light source remains dark on my Zeiss EXTARO 300?
- J
  Jennifer SmithAug 25, 2025
  If the LED light source remains dark while the fan is running, it could be due to several reasons. First, ensure the inclination switch isn't deactivated by moving the suspension arm down from its standby position. If that doesn't work, the inclination switch may be out of adjustment or defective, in this case illuminate surgical area with an OR illuminator and contact Service. Other possible causes include a defective LED light source, defective stand electronics or an overheated LED light source.
E
Edward StoneAug 26, 2025
Why is surgical field illumination insufficient on my Zeiss EXTARO 300 Medical Equipment?
- N
  nicholasnicholsAug 26, 2025
  Insufficient surgical field illumination may be due to lamp aging, which can reduce light intensity. Contact Service to replace the light source.
R
Raymond RichmondAug 27, 2025
What to do if the motion of the OPMI on my Zeiss Medical Equipment is too stiff?
- J
  Jill HarrisAug 28, 2025
  If the motion of the OPMI is too stiff, the friction adjustment screw on the stand might be over tightened. Loosen the friction adjustment screw on the stand as required.
P
Patricia BoydAug 30, 2025
What to do if the suspension arm of Zeiss Medical Equipment cannot hold the OPMI in position?
- T
  Thomas GutierrezAug 30, 2025
  If the suspension arm cannot hold the OPMI in position, it may be necessary to adjust the balance of the suspension arm using an M10 hex key.
M
Mary DiazSep 1, 2025
What to do if motion of suspension arm of Zeiss EXTARO 300 Medical Equipment is too stiff?
- H
  hernandezjeffSep 1, 2025
  If the motion of the suspension arm is too stiff, the adjustment screw may be over tightened. Slightly loosen the adjustment screw.
S
Shelby SingletonSep 3, 2025
What to do if my Zeiss Medical Equipment stand wobbles?
- V
  victordavisSep 3, 2025
  If the stand wobbles, it might be because the floor is not level or the stand base is not appropriately positioned. Try slightly changing the stand base position.
O
Oscar GarciaSep 5, 2025
Why is the LED light source dark on my Zeiss EXTARO 300 Medical Equipment, even though the fan is running?
- A
  Amy NelsonSep 5, 2025
  If the LED light source on your Zeiss Medical Equipment remains dark while the fan is running, it could be due to the following reasons: * The inclination switch may be deactivated. Try moving the suspension arm of the surgical microscope down from its standby position. * The inclination switch might be out of adjustment or defective. * The LED light source is overheated.
S
Stacy GarciaSep 7, 2025
Why does the LED light source on my Zeiss Medical Equipment go off and on again during operation?
- S
  Steven PerezSep 7, 2025
  If the LED light source on your Zeiss Medical Equipment goes off and on again during operation, it may be caused by covered or dirty ventilation openings. Ensure that the ventilation openings are clear and clean them if necessary.

Summary

Safety notes

Intended use

Details the surgical applications and restrictions for the EXTARO 300.

Notes for operation

Lists essential precautions and guidelines for safe and proper operation.

Controls

Controls on the microscope

Identifies and illustrates key controls located directly on the microscope.

Controls on the yoke and stand

Describes controls found on the yoke and stand of the microscope system.

Preparing system for use

Relocating the system

Provides step-by-step instructions for moving and setting up the microscope.

Connecting the system

Guides on connecting power and interface cables to the system.

Balancing

Explains the importance of balancing the suspension arm and yoke for maneuverability.

Adjusting eyepieces

Working with the microscope

Using the camera

Guides on using the camera for image and video capture.

Adjusting light intensity

Explains how to control and adjust the illumination intensity of the microscope.

Switching between Augmented Visualization modes

Cleaning and disinfection

Cleaning

Disinfection

Specifies approved disinfectants and precautions for cleaning device surfaces.

Maintenance

Maintenance intervals

Lists recommended maintenance activities and their required intervals.

Safety check

Outlines essential safety checks to ensure the system's integrity and user safety.

Trouble shooting

Causes of malfunctions and remedies

Provides a table of common faults, their causes, and recommended solutions.

Failure of the Mode Control knob

Addresses issues when the Mode Control knob is unresponsive.

Zeiss EXTARO 300 Specifications

General

Type	Surgical Microscope
Illumination	LED
Focus	Motorized
Light Intensity	Adjustable
Shadow Reduction	Yes
Magnification	5x to 25x
Application	ENT
Integrated Modes	Fluorescence
Mounting Options	Ceiling, Floor stand, Wall mount
Recording	Optional
