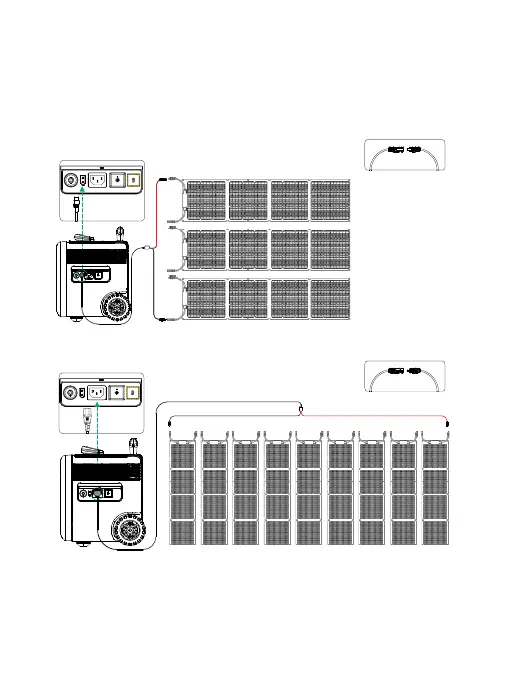

Users can connect solar panels in series as shown in the figure to
recharge the product. The product supports 12-160Vmp DC input, 11A
max current, and 1,800W max charging power.
3.5 Solar Recharging
When using Zendure 200W Solar Panels (sold separately) to charge the
product, please follow the instructions that come with the solar panels.
Before connecting a solar panel, please ensure that the solar panel’s
output voltage is within 75Voc via XT60 input or 200Voc via AC input to
avoid damaging the product.
1,800W Max via AC Input, 60-160Vmp DC, PVMax
MC4 Connector
-
-
+-
+-
+-
+-
+-
+-
+-
+-
+
+
600W Max via XT60 Input Port, 12-60Vmp DC
XT60 Connector
MC4 Connector
+ +
+
-
+
-
- -
9
