Zenitel Phontech ICS 6200 - 6205 48 Port Patch Panel for Ships Cable

p/n 4000087299 v.I
Page 8-188

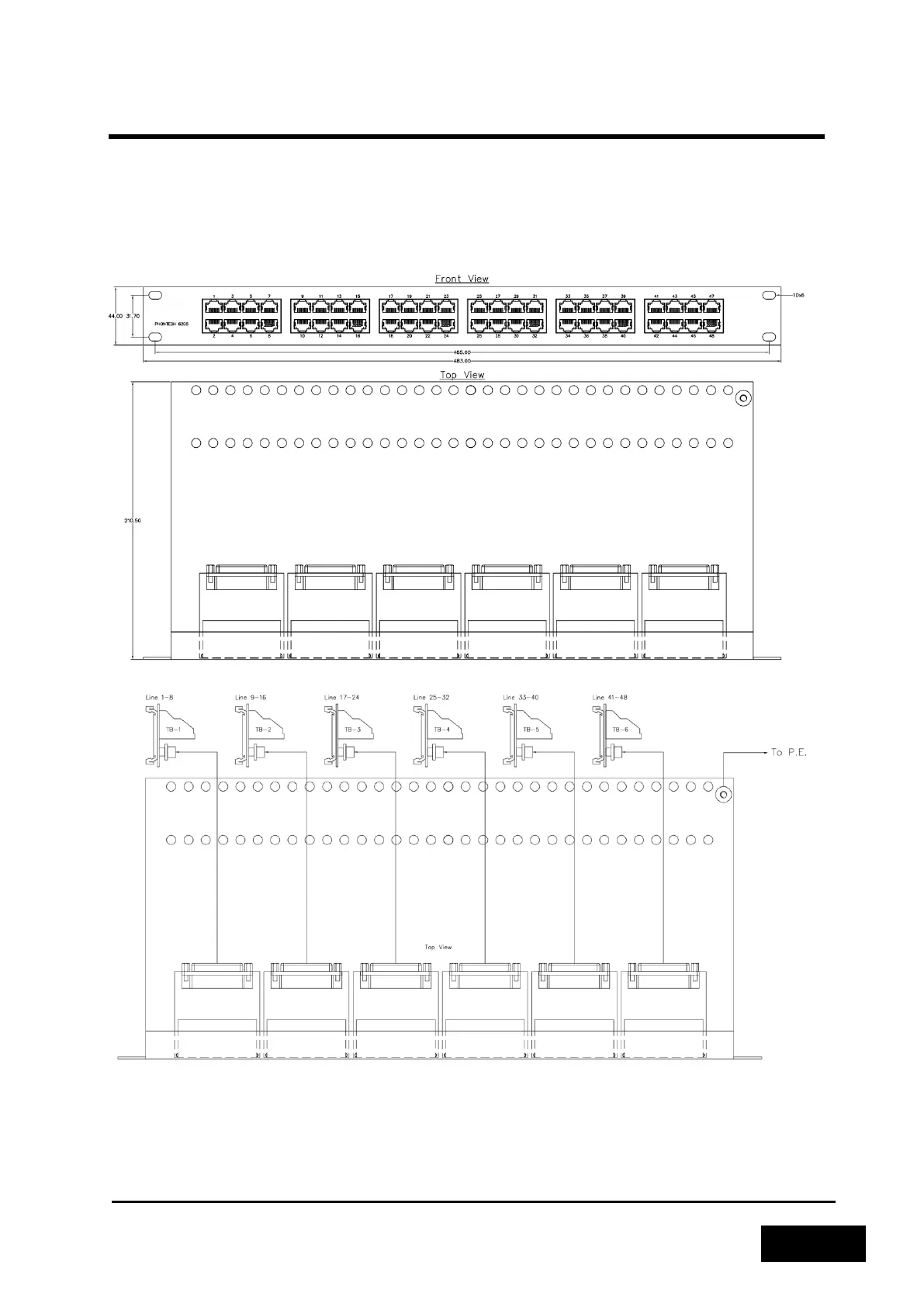

8.3 6205 48 PORT PATCH PANEL FOR SHIPS CABLE.
The Phontech 6200 is primarily designed for use with structured cabling. When using traditional ships
cable, the 6205 patch panel is used together with the termination module. The patch panel is
connected to the termination module using a 25 pin DSUB cable.
.
Electrical connections
