p/n 4000087299 v.I

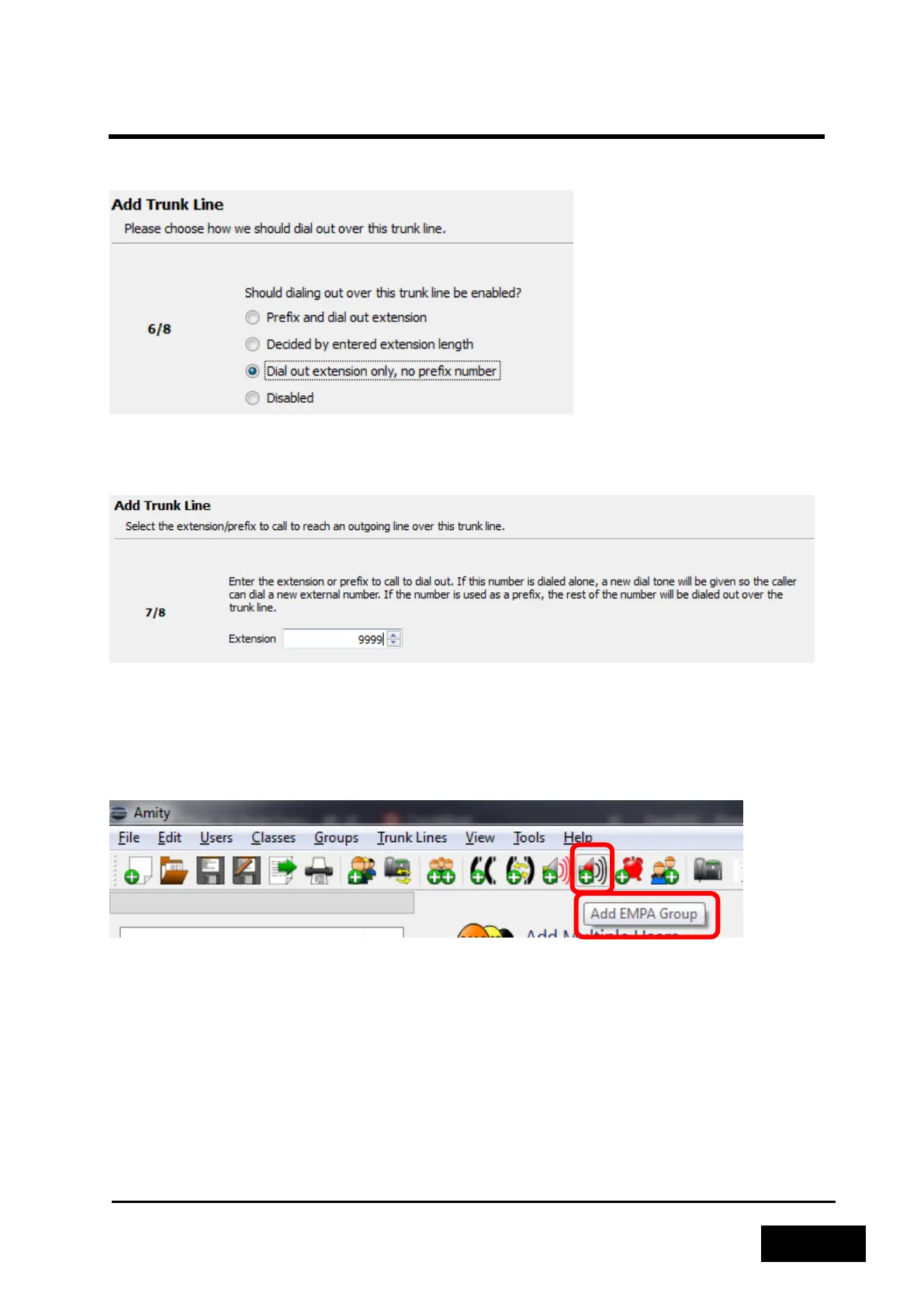

Select a dial out method. As this extension is only meant to open the interface and access the
connected amplifier no prefix method is required.
Figure 2-104
The system configuration requires a call out extension number. For the Emergency PA functionality,
no extension is basically required. Select an “fictive” extension number out of the normal range.
Figure 2-105
The amplifier 1671 shall be connected to the output port. (ref. ch 3.2.1.3.1)
2.6.2 PREPARING AN EMERGENCY PA GROUP
Add an EMPA Group. This function is only available in the toolbar menu.
Figure 2-106
