3 SYSTEM CABINETS/RACKS AND TYPICAL CONFIGURATIONS
3.1 CONFIGURATIONS FOR 6200
The basic cabinets for the Phontech 6200, ICS system configurations are a range of 4 different mini
rack sizes; 9U (4000018934ICS), 16U (4000019835ICS), 25U (4000018936ICS) and 34U
(4000018937ICS). A 34U combination rack for ICS and PAGA is also available (4000018937COM).
All cabinets/racks are based on the Schroff Novastar series, colour RAL7021 BlackGrey. All racks are
floor/desk mounted with cable entry from the bottom.
Each cabinet comes in either a AC primary / DC backup (AC/DC) or AC primary / AC backup (AC/AC)
power selection.
3.1.1 18934ICS, 9U PHONTECH SYSTEM CABINET
This 9U cabinet has a flexible configuration. Specific Layout drawings are available upon request
within the standard configurations. Each layout is further configurable within each Phontech 6200
module (24L (FXS/FXO/UpN/E&M) and 48IP (VoiP registrations):
Drawing No.:
Sequence No:
Max configuration
14848-001-ML
-01
72L / -IP
-“-
-02
48L / -IP
-“-
-03
24L / -IP
-“-
-04
48L / 24IP
-“-
-05
24L / 48IP
-“-
-06
24L / 24IP
-“-
-07
-L / 48IP
-“-
-08
-L / 24IP

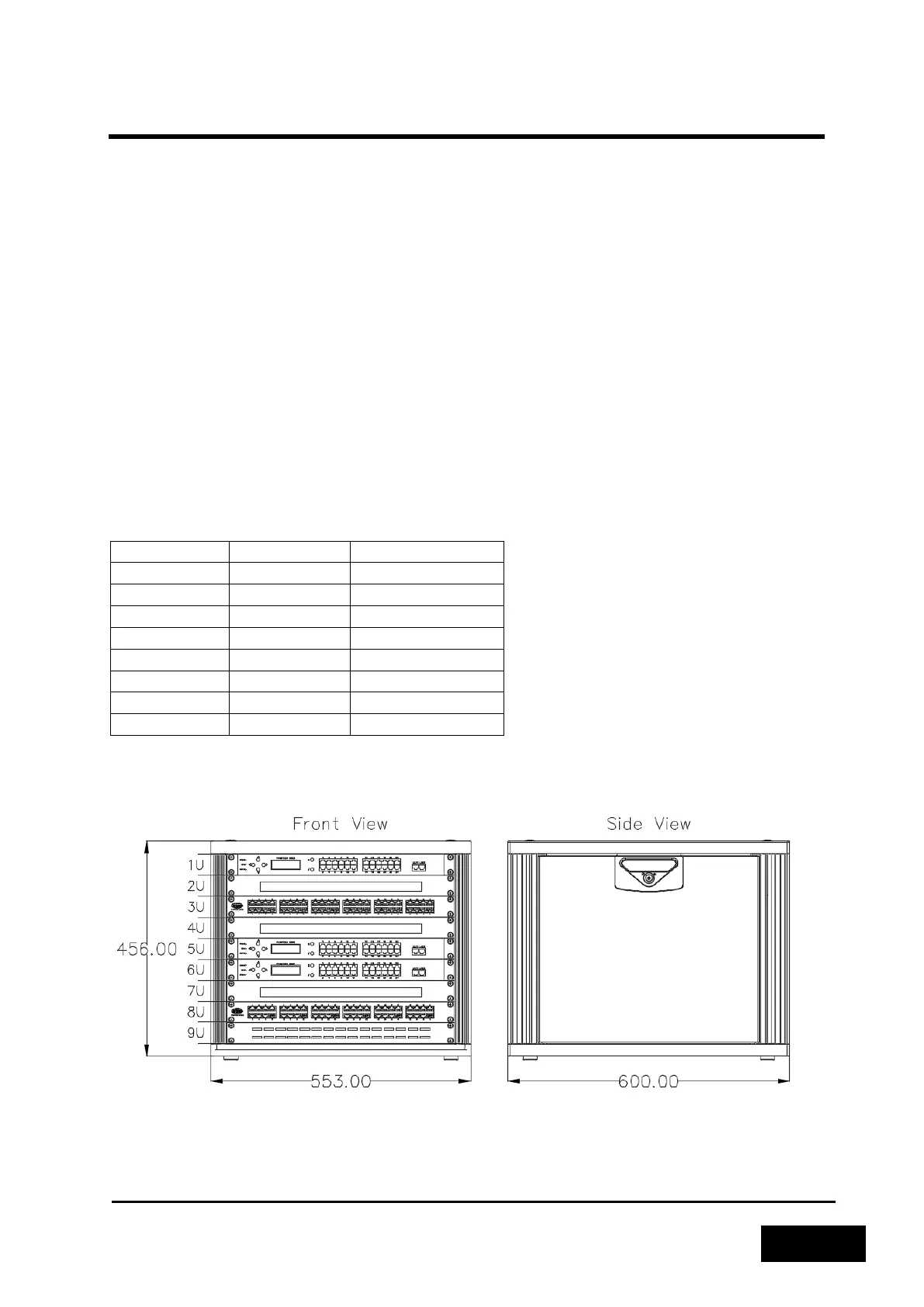

Layout example (14848-001-ML-01), 3 pcs 6200; 72 Lines, 0 VoIP.
