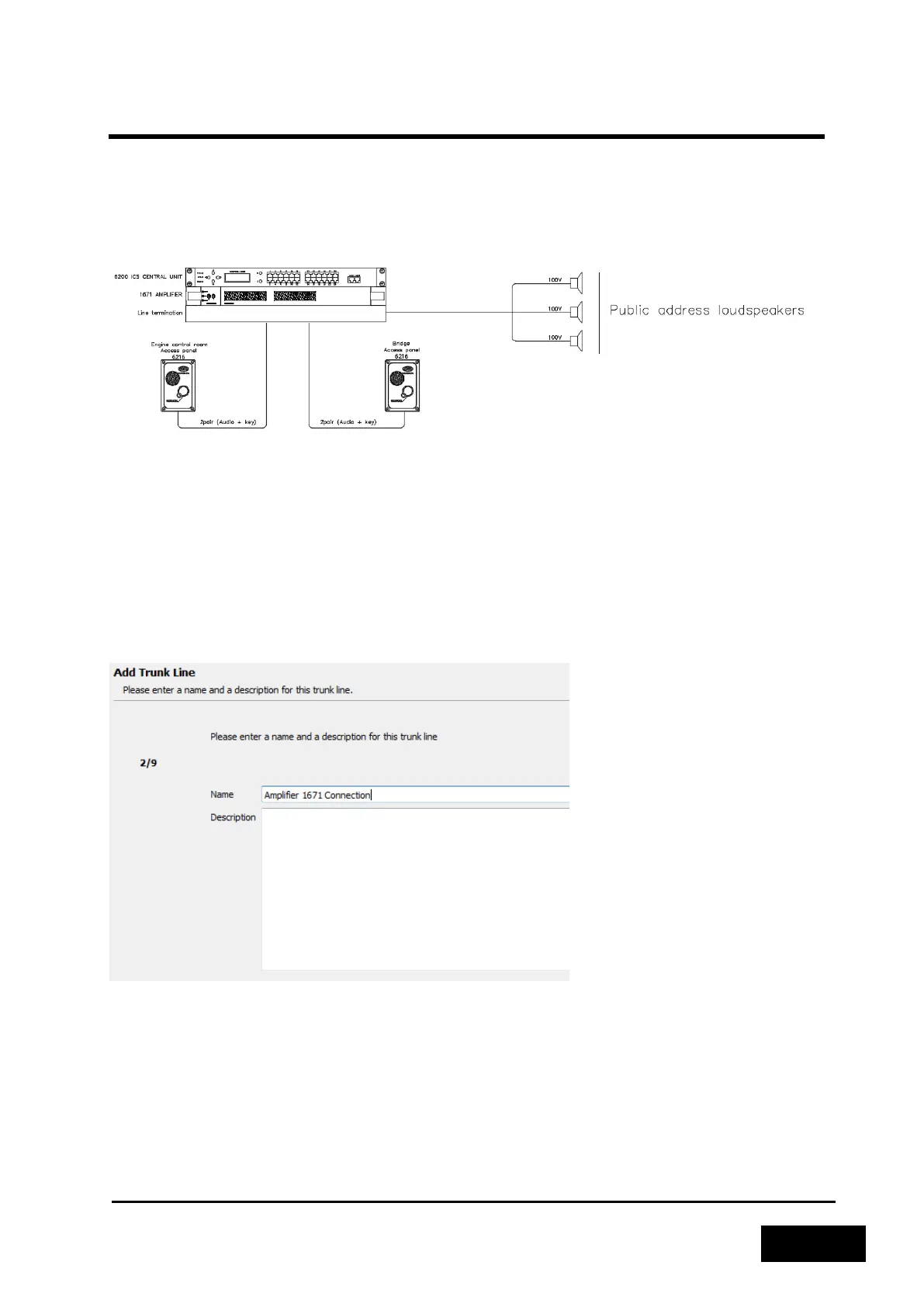

2.6 PUBLIC ADDRESS IN 6200
An emergency public address functionality can be set up in a Phontech 6200 configuration. This
requires an additional power amplifier 1671 (ref. 3.2.1.3.3), a loudspeaker network and two
Emergency PA units, 6216 (ref. 8.5).
Figure 2-99
The two Emergency PA units 6216’s must be connected and configured to a E&M board (ref. ch 1.12
/ 2.3.4.7) and the termination module (ref ch.1.13).
The amplifier also requires configuration of an E&M board and the connection set up to the
termination module.
2.6.1 ADDING THE AMPLIFIER 1671 TO AN E&M BOARD TRUNK LINE
Add an E&M trunk line for the amplifier 1671
Figure 2-100
