Audio Input
Stereo back
Stereo Amplifier back panel
TV back panel
(expanded view)
TV back
A/V cables
not included
with TV
Antenna
/Cable
Video
RL
R-Audio L/Mono
S-Video
Variable
Audio Out
RL

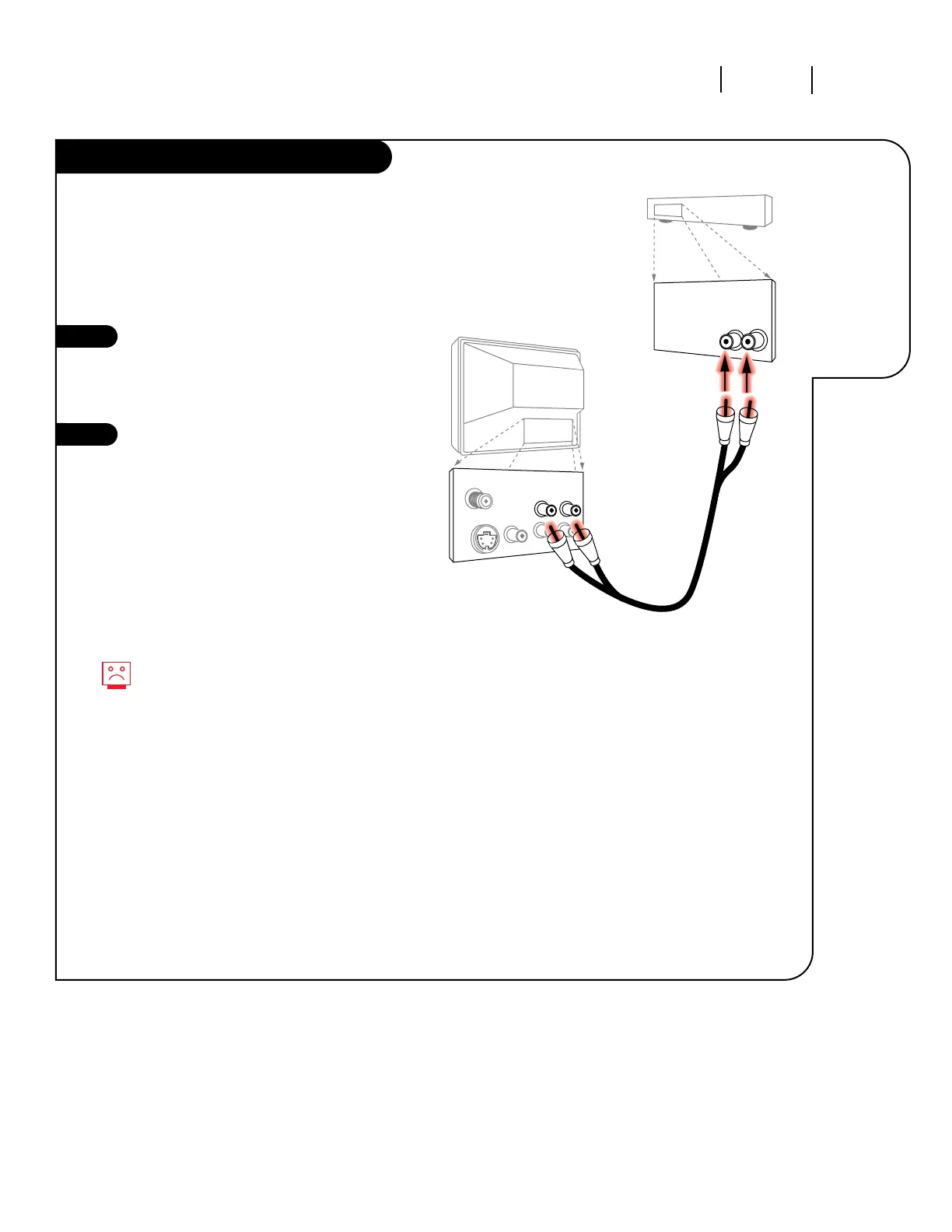

Locate the Left/Right Audio
Input jacks on the back of your
stereo amplifier. Connect the
Audio cables directly to these
jacks.
Connect these cables from
the Left/Right Variable Audio
Input jacks to the corresponding
Left/Right Audio Out jacks on the
back of your TV.
1
2
Hook Up Your TV to Stereo Amplifier
Connecting your
Entertainment
Machine to a
stereo amplifier.
For added audio depth and clarity, you
can connect your Entertainment Machine
to a stereo amplifier!
No Audio cables are included with
your Zenith Entertainment
Machine, but can be purchased in
most consumer electronics stores.
