Hook Up Your Antenna and VCR
If you have a 75 ohm RF cable,
then you don’t need any adapters!
Remember, when screwing RF
cables onto jacks, clockwise tight-
ens, and counterclockwise loosens.
Locate the Antenna/Cable jack on
the back of your Entertainment
Machine.
Connect the cable that runs from
the wall directly to this jack,
according to the diagram to the
right.
Remove the back of the remote
and put in two AAA batteries.
Plug in your Entertainment
Machine. Do not plug it into a
switched outlet. Your
Entertainment Machine
TM
is
designed to operate on
household current, 120-volt 60
Hertz AC do not attempt to
operate it on DC Current.
Go to page 12 to Auto Program
your Entertainment Machine.
1
2
3
4
5

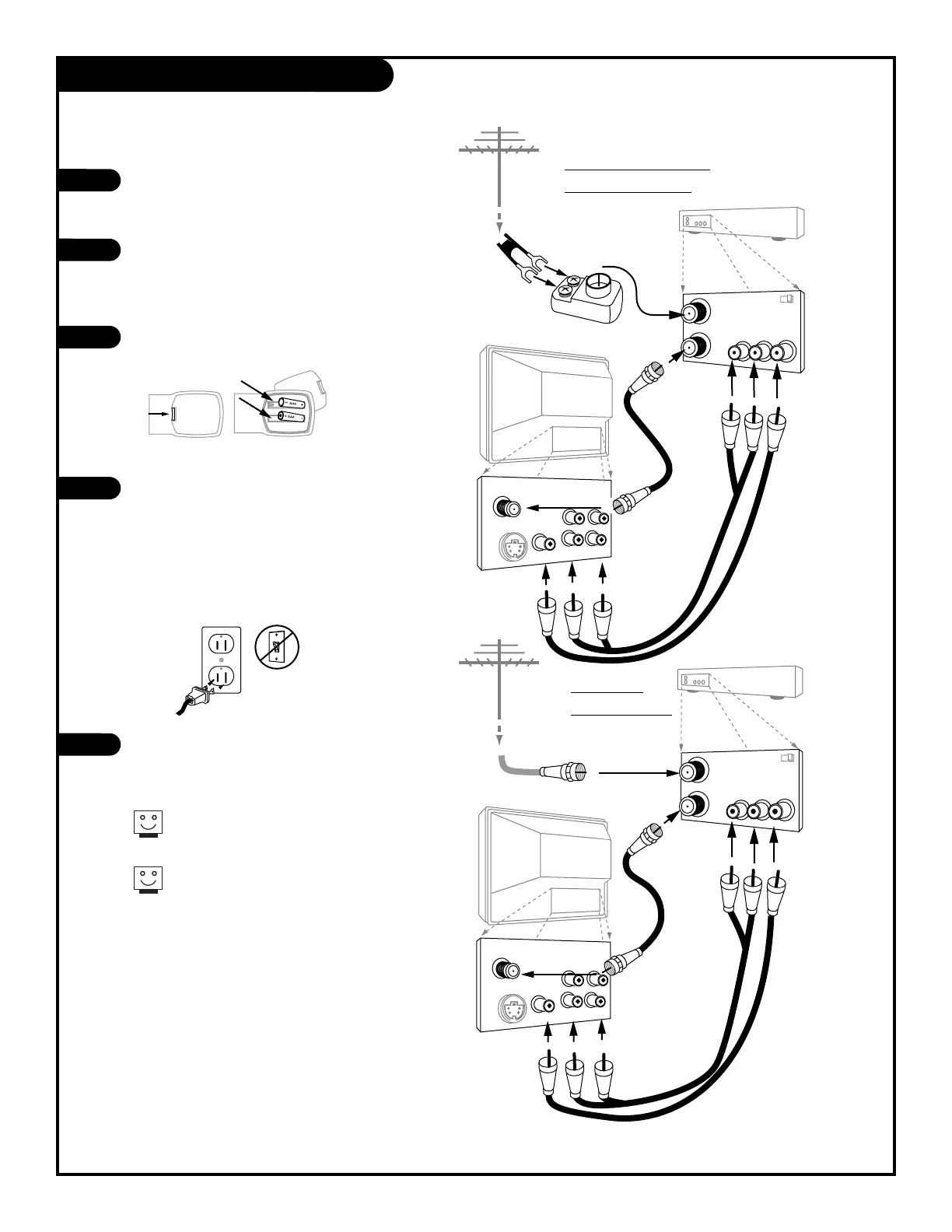

Connect an antenna to your Entertainment Machine.
back of
remote
TV back panel
(expanded view)
TV back
In
Out
VCR back
VCR back AV panel
In
Out
VCR back
VCR back AV panel
TV back panel
(expanded view)
TV back
Flat wire
(300 ohm)
Antenna
300/75 ohm
Adapter
Round wire (75ohm)
Antenna
RF coaxial wire
(75ohm)
not included
with TV
RF coaxial wire
(75ohm)
not included
with TV
A/V cables
not included
with TV
A/V cables
not included
with TV
Antenna
/Cable
Video
RL
R-Audio L/Mono
S-Video
Variable
Audio Out
Antenna
/Cable
Video
RL
R-Audio L/Mono
S-Video
Variable
Audio Out
output
switch
Audio
Video
Output
R
L
output
switch
Audio
Video
Output
R
L
3 4
3 4
VCR with Flat Wire
An
tenna Adapter
VCR
with
Antenna Wire
206-3588
